Product Description

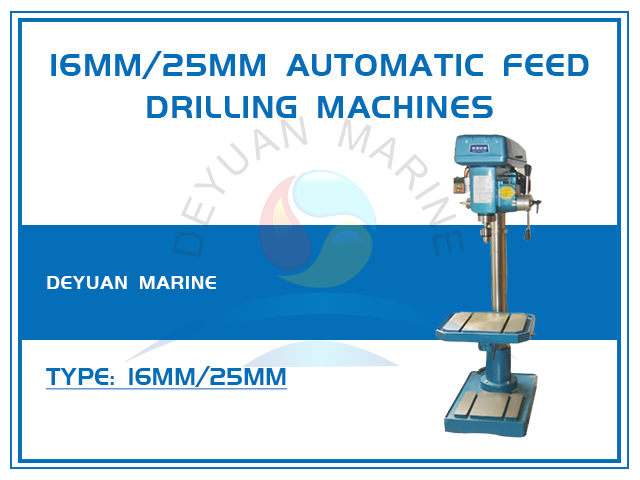

Automatic Feed Drilling Machines
Product Overview
Our Automatic Feed Drilling Machines encapsulate the essence of precision and efficiency, catering to diverse drilling needs across numerous industries. Designed with robust construction and advanced mechanics, these machines offer unparalleled accuracy, reliability, and versatility.
Models
Key Features
Comprehensive Drilling Capacity: Capable of drilling holes ranging from 16mm to 25mm in diameter, these machines are suitable for a wide array of materials and applications.
Sturdy Construction: Built with heavy-duty materials, including columns with diameters of 85mm to 102mm, ensuring stability and longevity during extensive use.
Adjustable spindle stroke and axis positioning: Allow for precise control over drilling depth and positioning, accommodating various workpiece thicknesses and drilling patterns.
Powerful Motors: Equipped with motors ranging from 750w to 1500w, providing ample torque for efficient and rapid drilling operations.
Versatile Work Areas: Worktables and bases of varying sizes ensure compatibility with different-sized workpieces, enhancing the machine's adaptability.
Compact and User-Friendly: Designed for both ease of use and space efficiency, these machines are ideal for fixed workshops as well as mobile applications.
Specifications

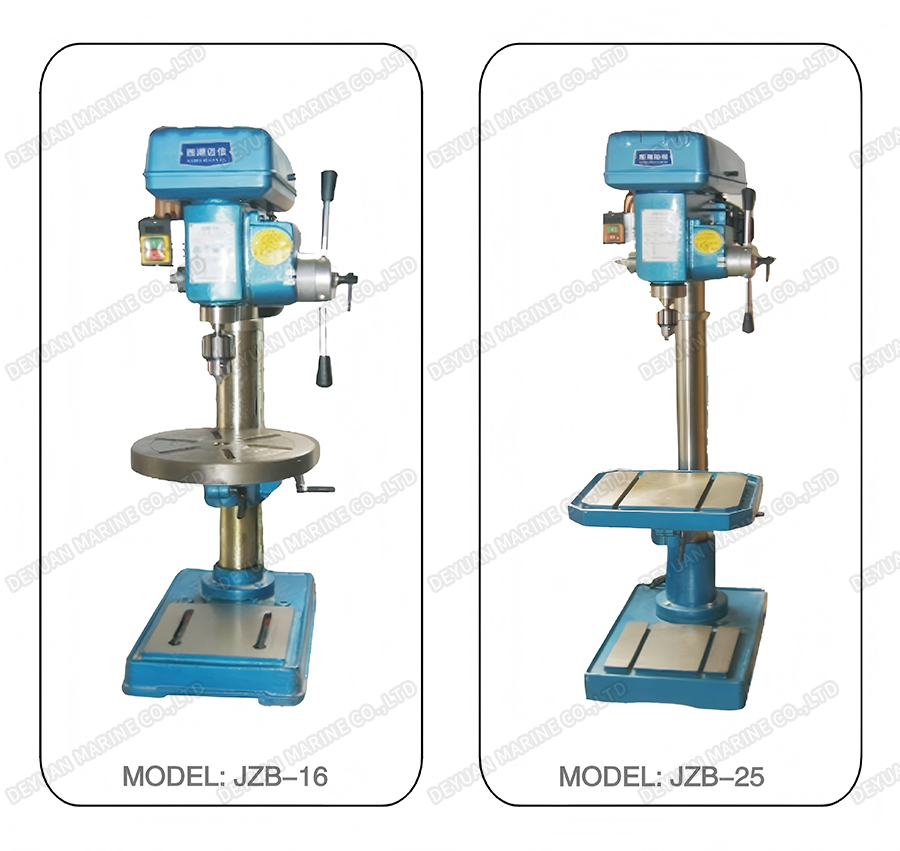

| MODEL | JZB-16 | JZB-25 |
| Max.Drilling capacity | 16mm | 25mm |
| Diameter of column | 85mm | 102mm |
| Spindle stroke | 100mm | 130mm |
| Distance spindle axis to column surface | 180mm | 230mm |
| Max.Distance spindle nose to table | 425mm | 680mm |
| Max.Distance spindle nose to base | 610mm | 965mm |
| Spindle taper | MT.2 | MT.3 |
| Spindle speeds range | 290-2000r/min | 230-2160r/min |
| Spindle speeds | 6 | 6 |
| Working area of table | 270x280mm/φ320mm | 330x380mm/φ420mm |
| Working area of base | 250x250mm | 330x320mm |
| Overall height | 1050mm | 1681mm |
| Motor | 750w | 1500w |
| G.W/N.W | 118/108kg | 272/247kg,285/260kg |
| Ship measurement(Wooden cases) | 79x46x114cm | 98x66x186cm |
Applications
Metal Fabrication: Perfect for drilling precise holes in metal sheets, plates, and structural components in automotive, aerospace, and construction industries.
Woodworking Projects: Ideal for furniture making, cabinet construction, and other wooden structures requiring precision drilling.
Electronics Assembly: Essential for drilling holes in printed circuit boards, mounting panels, and other electronic components.
General Manufacturing: Utilized in various stages of manufacturing, from prototyping to mass production, for assembling machine parts and fixtures.
Our Automatic Feed Drilling Machines represent the pinnacle of precision drilling technology, designed to meet the rigorous demands of various industries. With their robust construction, versatile features, and wide applications, these machines are poised to revolutionize your drilling operations.
