16mm~31.5mm Industrial Type Bench Drilling Machines Small And Medium Series
A drilling machine (also referred to as a drill press) is a mechanical device engineered for creating precise holes in materials like metal, wood, and glass. Its standardized terminology includes:
Spindle: Rotating component driving the drill bit.
Worktable: Adjustable platform securing workpieces.

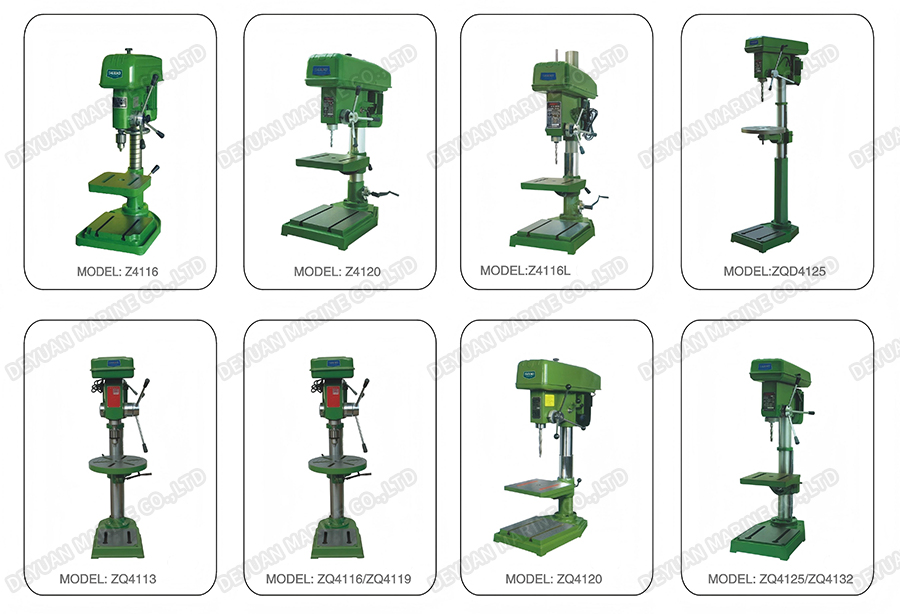

Models
Specifications of each model
| Model | Z4116 | Z4120 | Z4116L | ZQD4125 | ZQ4113 | ZQ4116/ZQ4119 | ZQ4120 | ZQ4125/ZQ4132 |
| Max.Driling capacity(mm) | 16 | 20 | 16 | 25 | 13 | 16/19 | 20 | 25/31.5 |
| Diameter of column(mm) | 85 | 85 | 85 | 85 | 70 | 70 | 70 | 85 |
| Spindle travel(mm) | 125 | 125 | 200 | 110 | 85 | 85 | 100 | 110 |
| Distance spindce nose to base(mm) | 240 | 240 | 240 | 200 | 180 | 180 | 200 | 200 |
| Max.Distance spindle nose to worktable(mm) | 297 | 367 | 530 | 490 | 318 | 432 | 390 | 485 |
| Max.Distance spindle nose to base(mm) | 560 | 630 | 793 | 1240 | 475 | 560/592 | 570 | 670 |
| Spindle taper | MT.2 | MT.2 | MT.2 | MT.3 | B16 | MT.2 | Morse No.2 | MT.3 |
| spindle taper | 365-3150 | 365-3150 | 145-2830 | 230-2260 | 450-2650 | 270/2880 | 280-2650 | 200/2260 |
| Spindle speeds range(mm) | 5 | 5 | 9 | 9 | 4 | 12 | 5 | 9 |
| Dimension of worktable surfce(mm) | 280x300 | 280x300 | 280x300 | φ360 | 240x240 | 240x240 | 250x250 | 280x280 |
| Dimension of base(mm) | 315x335 | 315x335 | 315x335 | 300x300 | 220x220 | 220x220 | 445x270 | 300x300 |
| Overall height(mm) | 1127 | 1127 | 1423 | 1680 | 858 | 956/950 | 960 | 1109 |
| Motor(W) | 750 | 750 | 1100 | 500 or 750 | 370 | 370/550 | 550 | 500 or 750 |
| G.W.N.W. (kg) | 200/145 | 200/145 | 210/180 | 125/116 | 70/60 | 75/70 | 68/65 | 115/105 |
| Packing dimension(cm) | 90x56x108 | 90x56x108 | 95x56x142 | 110x77x34 | 92x52x28 | 92x52x28 | 79x44x96 | 110x77x34 |
Feature
Drilling Capacity: Ranges from micro-bores (6mm) to heavy-duty operations (31.5mm).
Spindle Speed: Variable RPM (320–12,000) for material-specific optimization.
Structural Rigidity: Column diameters 50–85mm ensure stability during high-torque tasks.
Motor Power: 250W–1100W configurations balance precision and power.
Applications Across Industries
Metalworking: Precision hole drilling in fabrication shops.
Woodworking: Cabinetry and furniture manufacturing.
Oil & Gas: Customized rigs (e.g., bracket-drilling machines) for pipeline systems.
PCB Production: CNC-controlled micro-drilling for electronics.
Advanced Variants
Radial Arm Drills: Adjustable booms for large component.
Gang Drillers: Multi-spindle setups for mass production.
CNC Drill Presses: Automated depth/speed control for aerospace or automotive sectors.
Operational Advantages
Accuracy: ±0.01mm tolerance in calibrated models.
Versatility: Compatible with taps, reamers, and countersinks.
Durability: Cast-iron bases mitigate vibration during deep-hole drilling (e.g., 10m rock penetration).
