Product Description

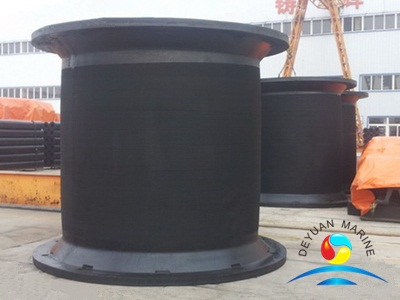

Dock Super Cell Marine Rubber Rolling Fender
Super Cell Rubber Fender is high performance dock rubber fenders. With high energy absorption to reduce reaction force to a minimum data.
Cell Marine Rubber Rolling Fender is cylindrical elastomeric section with steel mounting plates permanently bonded at each end. In the case of axial loads, the cylindrical portion is radial.
This multi-directional control energy is dispersed, combining the high absorption rate of the flexion column with the stable geometry.
Marine Dock Rubber Fender feature:
*Higher Energy Absorption with lower Reaction Force
*Equal performance in all directions of contact
*Compact profile
*Excellent performance at large berthing angles
*Low friction UHMW pads on frontal frame
*Uniform deformation under shear load extends life
*Excellent track record
*Reasonable structure, high performance and good durability.
*Usually suitable for large and middle oil dock, coal docks ,ore docks.
Dock marine rubber rolling fender data sheet for your reference ,hope to hear your inquiry .
Specification (mm) | H | h | Φ D1 | Φ D | n | Φ d | Weight (kg) |
500 | 500 | 25 | 550 | 650 | 4 | 32 | 112 |
630 | 630 | 30 | 700 | 840 | 4 | 39 | 231 |
800 | 800 | 30 | 900 | 1050 | 6 | 40 | 410 |
1000 | 1000 | 35 | 1100 | 1300 | 6 | 47 | 822 |
1150 | 1150 | 40 | 1300 | 1500 | 6 | 50 | 1212 |
1250 | 1250 | 45 | 1450 | 1650 | 6 | 53 | 1498 |
1450 | 1450 | 47 | 1650 | 1850 | 6 | 61 | 2320 |
1600 | 1600 | 50 | 1800 | 2000 | 8 | 61 | 3025 |
1700 | 1700 | 55 | 1900 | 2100 | 8 | 66 | 3720 |
2000 | 2000 | 55 | 2000 | 2200 | 8 | 74 | 5250 |
2250 | 2250 | 60 | 2300 | 2500 | 10 | 74 | 7480 |
2500 | 2500 | 70 | 2700 | 2950 | 10 | 74 | 10780 |
3000 | 3000 | 75 | 3150 | 3350 | 12 | 90 | 18550 |
If you have any questions please let us know .Thank you .
