Product Description

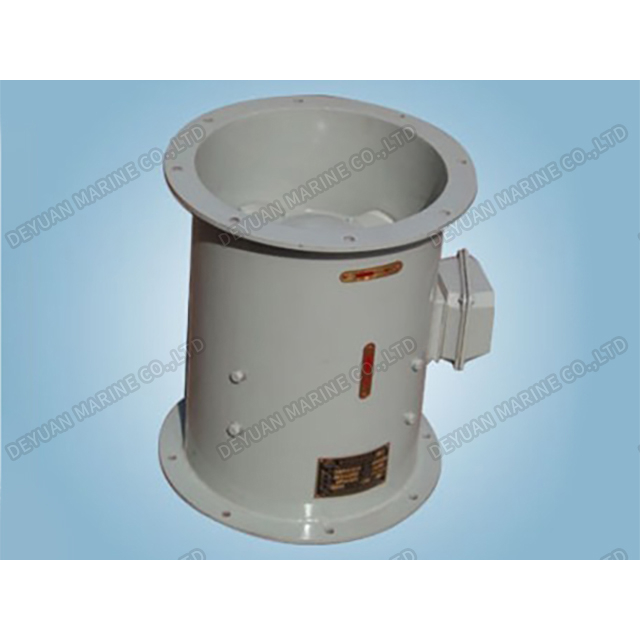

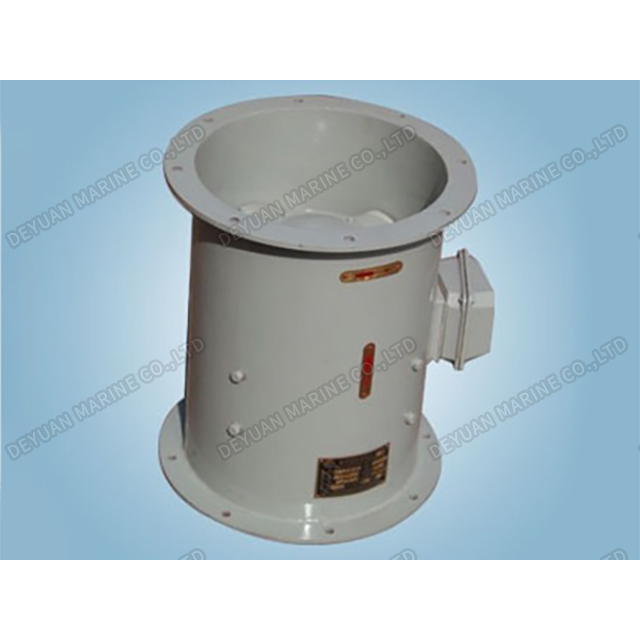

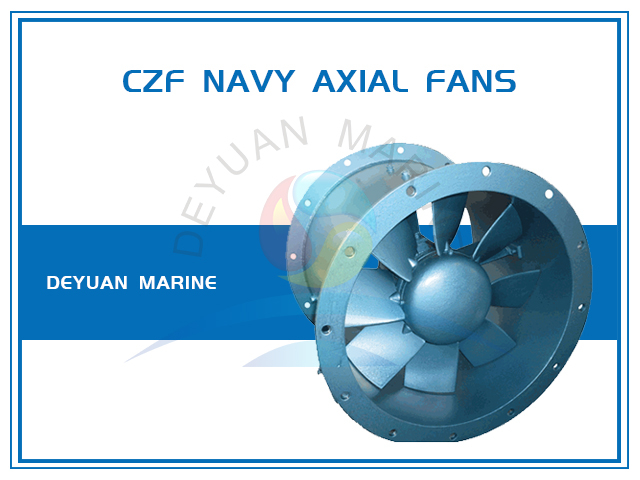

CZF Series Marine or Navy Axial Fan Air Blower
CZF series marine axial flow fan (hereinafter referred to as fan) is a new type of energy-saving and low-noise fan. It is suitable for ventilation of various ships and other suitable occasions.
Features
CF series fans have the advantages of compact structure, small size, light weight, low power consumption, reversible, stable operation, and resistance to a certain degree of shock and vibration.

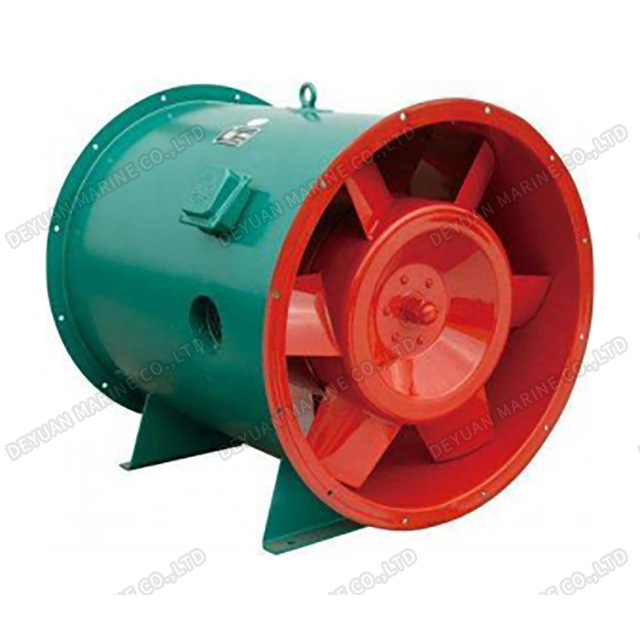

Structure
The fan impeller is made of corrosion-resistant aluminum alloy cast and corrected by dynamic balance, which has good anti-corrosion performance and stable and reliable operation.
The fan casing adopts the welded steel plate structure, and the surface is treated with anti-corrosion. The inlet and outlet of the casing are provided at both ends, so as to be connected with the inlet and outlet pipes by bolts. The casing can be made into an integral or axially open structure as required. The open casing is to install the impeller and the motor on the half casing that can be opened, so it is convenient for on-site maintenance and replacement of parts.

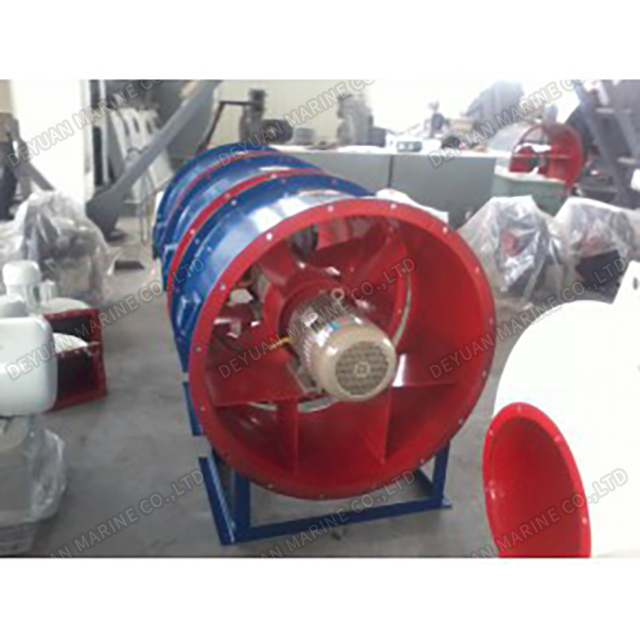

The fan is made into a structure where the motor is placed in the casing, and the impeller is directly mounted on the motor shaft.
Viewed from one end of the motor, the fan impeller rotates in a clockwise direction. In use, the fan impeller is allowed to rotate in a counterclockwise direction. In this state, the air volume of the fan is greater than 60% of the rated air volume.
The ventilator can be equipped with 380V, 415V, 50HZ or 440V, 60HZ marine AC motor.
Fan applicable conditions
The fan can work normally for a long time under the following conditions:
Ambient temperature: -25℃~+55℃ (+50℃);
Maximum relative humidity: 95%;
Rolling: ±45° (period 8~12S);
Pitch: 15° (period 5~7S);
Heel: ±15°;
Trim: ±10°;
Vibration: Allow
Impact: Allow
Model explanation
K: open type
A: Impeller code
80: Impeller cm(rounded off)
F: Fan
Z: Axial
C: Marine or navy
Model | Flow rate | Total pressure | Static pressure | Speed | Motor | ||
Hz | Kw | Model | |||||
CZF-30A | 960 | 330(34) | 320(33) | 2920 | 50 | 0.75 | Y801-2-H |
1200 | 310(32) | 295(31) | |||||
1500 | 270(28) | 250(26) | |||||
1700 | 230(24) | 200(21) | |||||
2000 | 180(19) | 140(15) | 3500 | 60 | 0.75 | Y801-2-H | |
1200 | 490(50) | 470(48) | |||||
1500 | 440(45) | 420(43) | |||||
2100 | 380(39) | 350(36) | |||||
2400 | 310(32) | 270(28) | |||||
240(25) | 180(19) | ||||||
CZF-35A | 900 | 160(17) | 150(16) | 1460 | 50 | 0.25 | Y711-4-H |
960 | 150(16) | 140(15) | |||||
1080 | 130(14) | 125(13) | |||||
1140 | 121(13) | 115(12) | |||||
1200 | 110(12) | 105(11) | |||||
900 | 250(26) | 240(25) | 1750 | 60 | 0.25 | Y711-4-H | |
1200 | 210(22) | 200(21) | |||||
1500 | 160(17) | 150(16) | |||||
1800 | 120(13) | 100(11) | |||||
CZF-35B | 1500 | 480(49) | 470(48) | 2920 | 50 | 0.75 | Y801-2-H |
1800 | 420(43) | 400(41) | |||||
2100 | 390(40) | 370(38) | |||||
2400 | 330(34) | 300(31) | |||||
2700 | 290(30) | 250(26) | |||||
1800 | 700(71) | 680(69) | 3500 | 60 | 1.1 | Y802-2-H | |
2100 | 640(65) | 620(63) | |||||
2400 | 590(60) | 560(57) | |||||
3000 | 460(47) | 410(42) | |||||
3600 | 320(33) | 250(26) | |||||
CZF-40A | 2160 | 180(19) | 160(17) | 1460 | 50 | 0.55 | Y801-4-H |
2400 | 160(17) | 145(15) | |||||
2700 | 150(16) | 130(14) | |||||
3000 | 140(15) | 110(12) | |||||
2400 | 270(28) | 250(26) | 1750 | 60 | 0.55 | Y801-4-H | |
2700 | 240(25) | 220(23) | |||||
3000 | 230(24) | 200(21) | |||||
3300 | 200(21) | 170(18) | |||||
3600 | 180(19) | 140(15) | |||||
3900 | 165(17) | 120(13) | |||||
CZF-40B | 2500 | 490(50) | 450(46) | 2920 | 50 | 1.1 | Y802-2-H |
3000 | 430(44) | 400(41) | |||||
3300 | 400(41) | 370(38) | |||||
3600 | 370(38) | 330(34) | |||||
4200 | 300(31) | 250(26) | |||||
3000 | 710(72) | 680(69) | 3500 | 60 | 2.2 | Y90L-2-H | |
3600 | 640(65) | 600(61) | |||||
4200 | 550(56) | 500(51) | |||||
4800 | 470(48) | 400(41) | |||||
5100 | 410(42) | 330(34) | |||||
CZF-45A | 1680 | 235(24) | 230(24) | 1460 | 50 | 1.1 | Y90S-4-H |
1800 | 254(23) | 220(23) | |||||
2100 | 200(21) | 190(20) | |||||
2400 | 175(18) | 165(17) | |||||
3000 | 125(13) | 110(12) | |||||
1920 | 350(36) | 340(35) | 1750 | 60 | |||
2100 | 340(35) | 330(34) | |||||
2400 | 310(32) | 300(31) | |||||
2700 | 285(29) | 270(28) | |||||
3000 | 245(25) | 230(24) | |||||
3600 | 185(19) | 160(17) | |||||
CZF-45B | 2000 | 250(26) | 240(25) | 1460 | 50 | 0.55 | Y801-4-H |
2400 | 240(25) | 230(24) | |||||
3000 | 220(23) | 205(21) | |||||
3600 | 195(20) | 170(18) | |||||
4200 | 150(16) | 120(13) | |||||
2400 | 360(37) | 350(36) | 1750 | 60 | 0.75 | Y802-4-H | |
3000 | 335(34) | 320(33) | |||||
3600 | 315(35) | 290(30) | |||||
4200 | 280(29) | 250(26) | |||||
4800 | 240(25) | 200(21) | |||||
CZF-50A | 3480 | 235(24) | 220(23) | 1460 | 50 | 0.55 | Y801-4-H |
3900 | 220(23) | 200(21) | |||||
4200 | 205(21) | 185(19) | |||||
4800 | 190(20) | 160(17) | |||||
5400 | 160(17) | 125(13) | |||||
4200 | 340(35) | 320(33) | 1750 | 60 | 0.75 | Y802-4-H | |
4800 | 320(33) | 290(30) | |||||
5400 | 295(30) | 260(27) | |||||
6000 | 265(27) | 220(23) | |||||
6600 | 230(24) | 180(19) | |||||
CZF-55A | 3900 | 330(34) | 320(33) | 1460 | 50 | 1.1 | Y90S-4-H |
4800 | 310(32) | 290(30) | |||||
5400 | 295(30) | 270(28) | |||||
6000 | 270(28) | 240(25) | |||||
6600 | 245(25) | 210(22) | |||||
7200 | 215(22) | 170(18) | |||||
4800 | 500(51) | 480(49) | 1750 | 60 | 1.5 | Y90L-4-H | |
6000 | 450(46) | 420(43) | |||||
7200 | 385(39) | 340(35) | |||||
8400 | 330(34) | 270(28) | |||||
9000 | 290(30) | 220(23) | |||||
9600 | 255(26) | 180(19) | |||||
CZF-55B | 6600 | 280(29) | 250(26) | 1460 | 50 | 1.1 | Y90S-4-H |
7200 | 280(29) | 235(24) | |||||
7800 | 265(27) | 215(22) | |||||
8400 | 255(26) | 195(20) | |||||
9000 | 240(25) | 175(18) | |||||
9600 | 230(24) | 155(16) | |||||
7200 | 425(43) | 380(39) | 1750 | 60 | 1.5 | Y90L-4-H | |
9000 | 390(40) | 320(33) | |||||
9600 | 375(38) | 300(31) | |||||
10800 | 345(35) | 250(26) | |||||
12000 | 320(33) | 200(21) | |||||
13200 | 285(29) | 140(15) | |||||
CZF-60A | 6660 | 345(35) | 320(33) | 1460 | 50 | 1.5 | Y90L-4-H |
7800 | 325(33) | 290(30) | |||||
9000 | 290(30) | 240(25) | |||||
10200 | 250(26) | 190(20) | |||||
11400 | 200(21) | 125(13) | |||||
840 | 490(50) | 450(46) | 1750 | 60 | 2.2 | Y100L1-4-H | |
960 | 475(48) | 420(43) | |||||
10800 | 440(45) | 370(38) | |||||
12000 | 375(38) | 290(30) | |||||
13200 | 345(35) | 210(22) | |||||
15000 | 270(28) | 140(15) | |||||
CZF-70A | 4800 | 530(54) | 520(53) | 1460 | 50 | 3 | Y100L2-4-H |
6000 | 525(53) | 515(52) | |||||
7200 | 515(52) | 500(51) | |||||
8400 | 450(46) | 430(44) | |||||
9600 | 370(38) | 340(35) | |||||
10200 | 335(34) | 300(31) | |||||
6000 | 790(80) | 780(79) | 1750 | 60 | 4 | Y112M-4-H | |
8400 | 740(75) | 720(73) | |||||
9600 | 680(69) | 650(66) | |||||
10800 | 605(61) | 570(58) | |||||
12000 | 505(51) | 460(47) | |||||
13200 | 405(41) | 350(36) | |||||
CZF-70B | 10200 | 415(42) | 380(39) | 1460 | 50 | 3 | Y100L2-4-H |
12000 | 375(38) | 330(34) | |||||
13200 | 355(36) | 300(31) | |||||
14400 | 325(33) | 260(27) | |||||
15600 | 295(30) | 220(23) | |||||
16800 | 270(28) | 180(19) | |||||
12000 | 595(60) | 550(56) | 1750 | 60 | 5.5 | Y132S-4-H | |
13800 | 560(57) | 500(51) | |||||
15000 | 520(53) | 450(46) | |||||
16800 | 490(50) | 400(41) | |||||
18600 | 430(44) | 320(33) | |||||
20400 | 360(37) | 230(24) | |||||
CZF-75A | 12000 | 215(22) | 180(19) | 970 | 50 | 1.5 | Y100L-6-H |
13200 | 205(21) | 165(17) | |||||
14400 | 200(21) | 150(16) | |||||
15600 | 190(20) | 130(14) | |||||
16800 | 180(19) | 110(12) | |||||
14400 | 320(33) | 270(28) | 1160 | 60 | 2.2 | Y112M-6-H | |
15600 | 310(32) | 250(26) | |||||
16800 | 300(31) | 230(24) | |||||
18000 | 280(29) | 200(21) | |||||
19200 | 270(28) | 180(19) | |||||
20400 | 250(26) | 150(16) | |||||
CZF-75B | 9600 | 460(47) | 440(47) | 1460 | 50 | 4 | Y112M-4-H |
12000 | 455(46) | 425(43) | |||||
14400 | 430(44) | 380(39) | |||||
16800 | 400(41) | 330(34) | |||||
19200 | 340(35) | 250(26) | |||||
22200 | 220(23) | 160(17) | |||||
12000 | 655(66) | 620(63) | 1750 | 60 | 7.5 | Y132M-4-H | |
13800 | 645(65) | 600(61) | |||||
16800 | 620(63) | 550(56) | |||||
18000 | 600(61) | 520(53) | |||||
19200 | 590(60) | 500(51) | |||||
24000 | 490(50) | 350(36) | |||||
CZF-75C | 12600 | 490(50) | 450(46) | 1460 | 50 | 5.5 | Y132S-4-H |
15000 | 480(49) | 425(43) | |||||
18000 | 450(46) | 370(38) | |||||
21000 | 395(40) | 290(30) | |||||
22200 | 370(38) | 250(26) | |||||
15600 | 680(69) | 620(63) | 1750 | 60 | 7.5 | Y132M-4-H | |
18000 | 675(68) | 600(61) | |||||
21000 | 635(64) | 530(54) | |||||
24000 | 590(60) | 450(46) | |||||
25000 | 555(56) | 400(41) | |||||
CZF-90A | 18600 | 330(34) | 290(30) | 970 | 50 | 4 | Y132M1-6-H |
21000 | 300(31) | 250(26) | |||||
22800 | 280(29) | 220(23) | |||||
24000 | 260(27) | 195(20) | |||||
25500 | 240(25) | 165(17) | |||||
27000 | 225(23) | 130(14) | |||||
21000 | 500(51) | 450(46) | 1160 | 60 | 5.5 | Y132M2-6-H | |
24000 | 480(49) | 410(42) | |||||
27000 | 410(42) | 330(34) | |||||
30000 | 345(35) | 240(25) | |||||
33000 | 275(28) | 150(16) | |||||
CZF-90B | 21000 | 390(40) | 340(35) | 970 | 50 | 5.5 | Y132M2-6-H |
24000 | 370(38) | 300(31) | |||||
27000 | 335(34) | 250(26) | |||||
28800 | 305(31) | 210(22) | |||||
30000 | 275(28) | 170(18) | |||||
25200 | 555(56) | 480(49) | 1160 | 60 | 7.5 | Y160M-6-H | |
27000 | 525(53) | 440(45) | |||||
30000 | 505(51) | 400(41) | |||||
33000 | 465(47) | 340(35) | |||||
36000 | 398(40) | 250(26) | |||||
CZF-90C | 10200 | 660(67) | 650(66) | 970 | 50 | 5.35 | Y132M2-6-H |
12000 | 640(65) | 620(63) | |||||
15000 | 580(59) | 550(56) | |||||
18000 | 305(31) | 450(46) | |||||
21000 | 350(36) | 300(31) | |||||
12000 | 970(98) | 950(96) | 1750 | 60 | 7.5 | Y132M-4-H | |
15000 | 910(92) | 880(89) | |||||
18000 | 840(85) | 800(81) | |||||
21000 | 730(74) | 680(69) | |||||
24000 | 600(61) | 530(54) | |||||
CZF-90D | 17400 | 655(66) | 620(63) | 1460 | 50 | 7.5 | Y132M-4-H |
21000 | 600(61) | 550(56) | |||||
24000 | 560(57) | 495(50) | |||||
27000 | 490(50) | 405(41) | |||||
31200 | 410(42) | 300(31) | |||||
21000 | 910(92) | 860(87) | 1750 | 60 | 11 | Y160M-4-H | |
24000 | 895(90) | 830(84) | |||||
27000 | 833(84) | 750(76) | |||||
30000 | 775(78) | 670(68) | |||||
33000 | 675(68) | 550(56) | |||||
36000 | 600(61) | 450(46) | |||||
CZF-95A | 25000 | 710(72) | 650(66) | 1460 | 50 | 11 | Y160M-4-H |
30000 | 685(69) | 600(61) | |||||
33000 | 670(68) | 570(58) | |||||
36000 | 640(65) | 520(53) | |||||
39000 | 590(60) | 450(46) | |||||
42000 | 525(53) | 360(37) | |||||
30000 | 1035(104) | 950(96) | 1750 | 60 | 18.5 | Y180M-4-H | |
33000 | 1000(102) | 900(91) | |||||
36000 | 1000(102) | 880(89) | |||||
39000 | 970(98) | 830(84) | |||||
42000 | 925(94) | 760(77) | |||||
48000 | 795(81) | 580(59) | |||||
CZF-100A | 25800 | 330(34) | 280(29) | 970 | 50 | 5.5 | Y132M2-6-H |
30000 | 310(32) | 240(25) | |||||
33000 | 290(30) | 210(22) | |||||
36000 | 270(28) | 175(18) | |||||
39000 | 245(25) | 130(14) | |||||
30000 | 490(50) | 420(43) | 1160 | 60 | 7.5 | Y160M-6-H | |
33000 | 470(48) | 390(40) | |||||
36000 | 460(47) | 360(37) | |||||
39000 | 435(44) | 320(33) | |||||
42000 | 405(41) | 270(28) | |||||
48000 | 325(33) | 150(16) | |||||
CZF-100B | 30000 | 440(45) | 370(38) | 970 | 50 | 7.5 | Y160M-6-H |
33000 | 420(43) | 340(35) | |||||
36000 | 390(40) | 300(31) | |||||
39000 | 375(38) | 260(27) | |||||
42000 | 345(35) | 210(22) | |||||
45000 | 280(29) | 130(14) | |||||
36000 | 630(64) | 530(54) | 1160 | 60 | 11 | Y160L-6-H | |
39000 | 615(62) | 500(51) | |||||
42000 | 585(60) | 450(46) | |||||
48000 | 495(51) | 320(33) | |||||
54000 | 430(44) | 210(22) | |||||
CZF-110A | 36000 | 370(38) | 300(31) | 970 | 50 | 7.5 | Y160M-6-H |
39000 | 355(36) | 275(28) | |||||
42000 | 330(34) | 240(25) | |||||
45000 | 315(35) | 210(22) | |||||
48000 | 290(30) | 170(18) | |||||
51000 | 275(28) | 140(15) | |||||
42000 | 540(55) | 450(46) | 1160 | 60 | 11 | Y160L-6-H | |
48000 | 520(53) | 400(41) | |||||
54000 | 470(48) | 320(33) | |||||
60000 | 385(39) | 200(21) | |||||
63000 | 365(37) | 160(17) | |||||
CZF-120A | 48000 | 435(44) | 350(36) | 970 | 50 | 11 | Y160L-6-H |
51000 | 385(39) | 290(30) | |||||
54000 | 365(37) | 260(27) | |||||
57000 | 350(36) | 230(24) | |||||
60000 | 320(33) | 190(20) | |||||
63000 | 305(31) | 160(17) | |||||
51000 | 615(62) | 520(53) | 1160 | 60 | 15 | Y180L-6-H | |
54000 | 605(61) | 500(51) | |||||
60000 | 550(56) | 420(43) | |||||
66000 | 500(51) | 340(35) | |||||
72000 | 440(45) | 250(26) | |||||
78000 | 380(39) | 160(17) | |||||
CZF-140A | 48000 | 405(41) | 360(37) | 970 | 50 | 11 | Y160L-6-H |
54000 | 380(39) | 320(33) | |||||
60000 | 350(36) | 280(29) | |||||
66000 | 305(31) | 220(23) | |||||
72000 | 260(27) | 160(17) | |||||
54000 | 580(59) | 520(53) | 1160 | 60 | 15 | Y180L-6-H | |
60000 | 560(57) | 490(50) | |||||
66000 | 545(56) | 460(47) | |||||
72000 | 490(50) | 390(40) | |||||
78000 | 430(44) | 310(32) | |||||
84000 | 390(40) | 250(26) | |||||
CZF-140B | 45000 | 470(48) | 430(44) | 970 | 50 | 11 | Y160L-6-H |
54000 | 450(46) | 390(40) | |||||
60000 | 410(42) | 340(35) | |||||
66000 | 375(38) | 290(30) | |||||
72000 | 310(32) | 210(22) | |||||
78000 | 270(28) | 150(16) | |||||
54000 | 680(69) | 620(63) | 1160 | 60 | 18.5 | Y200L1-6-H | |
60000 | 660(67) | 590(60) | |||||
72000 | 600(61) | 500(51) | |||||
84000 | 480(49) | 340(35) | |||||
90000 | 420(43) | 260(27) | |||||
CZF-140C | 48000 | 525(53) | 480(49) | 970 | 50 | 15 | Y180L-6-H |
54000 | 510(52) | 450(46) | |||||
60000 | 490(50) | 420(43) | |||||
66000 | 465(47) | 380(39) | |||||
72000 | 420(43) | 320(33) | |||||
78000 | 370(38) | 250(26) | |||||
54000 | 780(79) | 720(73) | 1160 | 60 | 22 | Y200L2-6-H | |
60000 | 770(78) | 700(71) | |||||
72000 | 710(72) | 610(62) | |||||
84000 | 640(65) | 500(51) | |||||
96000 | 530(54) | 350(36) | |||||
1E+05 | 400(41) | 170(18) | |||||
CZF-140D | 54000 | 650(66) | 590(60) | 970 | 50 | 18.5 | Y200L1-6-H |
60000 | 640(65) | 570(58) | |||||
66000 | 605(62) | 520(53) | |||||
72000 | 570(58) | 470(48) | |||||
48000 | 530(54) | 410(42) | |||||
84000 | 490(50) | 350(36) | |||||
90000 | 440(45) | 280(29) | |||||
66000 | 935(95) | 850(86) | 1160 | 60 | 30 | Y225M-6-H |
