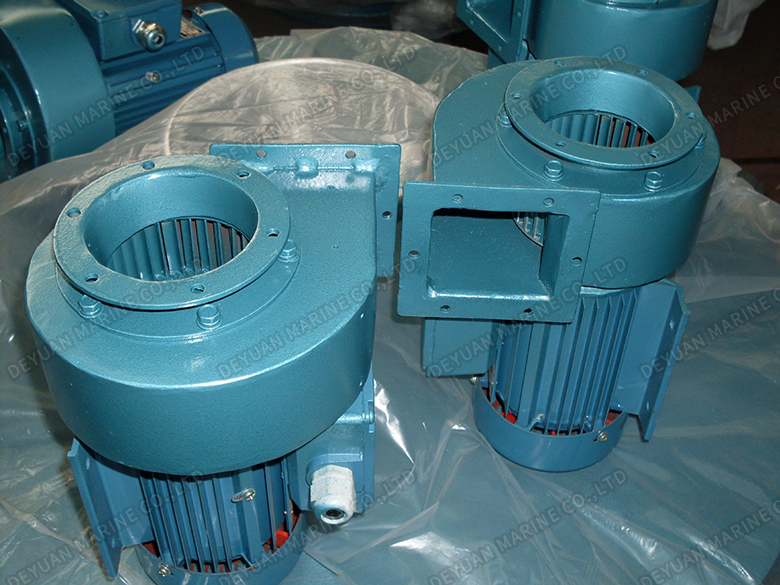

CXL(CWL) Series Marine Small-Sized Centrifugal Fan
CXL (CWL) series marine small centrifugal fans can transport air, marine air containing salt mist and corrosive air containing oil mist. This type of fan is suitable for the ventilation of galleys, toilets, bulkheads, public places, conference rooms, etc. and the ventilation of various cabins on military and civilian ships, as well as suitable places for onshore chemical, metallurgical and other industries.
CXL (CWL) type marine small centrifugal fans such as Pei Yong explosion-proof motors can transport flammable and explosive mixed gas and steam, and can work safely in "dangerous areas".
CXL (CWL.) type marine small centrifugal fan can be equipped with marine three-phase micro asynchronous motor, suitable for 380V/220V or 440V, 50/60Hz places. (Individually equipped with YB series motors, there is no 220V power system).
Features
*With high pressure coefficient (H>1.4), high flow coefficient (Q>0.5) and high efficiency (n>65%).
*Light weight, small size, stable performance and low noise.
*There are many performance parameters and a wide range of applications.
*Good strength and corrosion resistance.
*Strong anti-swing, vibration and shock performance.
Working principle and Structure type
CXL (CWL) series marine small centrifugal fan is a high-performance energy-saving fan of Xinshun, which adopts marine three-phase micro asynchronous motor. The fan impeller is composed of strong forward multi-blade blades. The gas enters the blade channel from the axial direction, and generates energy under the action of centrifugal force. The gas is compressed and enters the pipeline from the radial direction.
The CXL (CWL) fan is a horizontal type, the motor is directly connected to the structure, and the external structure can be made.
The impeller is made of aluminum alloy material by riveting, and the casing and the air inlet are all welded structures.
The impeller must be statically and dynamically balanced (using the weighting method).
The ventilator can be made (left turn) or (right turn).
Model numbers explanation
160D(G)--Impeller diameter is100mm，D is low speed(while G is high speed)
L--Centrifugal tan
W--Small-sized
C--Marine or navy
Model | Flow rate m3/h | Total Pressure Pa | Static pressure Pa | Speed r/min | Soundpresser level dB(A) | Motor | ||
Freq Hz | Power KW | Model | ||||||
CXL-100D | 110 135 | 90 133 | 67 99 | 1400 1700 | 52 55 | 50 60 | 0.12 0.12 | Y6314-H |
CXL-100G | 220 270 | 360 532 | 268 396 | 2800 3400 | 63 67 | 50 60 | 0.18 0.18 | Y6312-H |
CXL-110D | 150 185 | 110 162 | 80 118 | 1400 1700 | 54 58 | 50 60 | 0.12 0.12 | Y6314-H |
CXL-110G | 300 370 | 440 648 | 320 472 | 2800 3400 | 65 69 | 50 60 | 0.18 0.18 | Y6312-H |
CXL-125D | 220 270 | 140 206 | 102 150 | 1400 1700 | 57 61 | 50 60 | 0.12 0.12 | Y6314-H |
CXL-125G | 440 540 | 560 824 | 408 600 | 2800 3400 | 69.5 72 | 50 60 | 0.18 0.18 | Y6312-H |
CXL-140D | 300 365 | 180 265 | 135 199 | 1400 1700 | 60 64 | 50 60 | 0.12 0.12 | Y6314-H |
CXL-140G | 600 730 | 720 1060 | 540 796 | 2800 3400 | 71.5 76 | 50 60 | 0.25 0.37 | Y6322-H Y7122-H |
CXL-160D | 450 550 | 230 339 | 170 251 | 1400 1700 | 64 68 | 50 60 | 0.12 0.12 | Y6314-H |
CXL-160G | 900 1100 | 920 1356 | 680 1004 | 2800 3500 | 75 79 | 50 60 | 0.37 0.75 | Y7122-H Y-8012-H |
CXL-180D | 640 780 | 290 428 | 217 320 | 1400 1700 | 67 71 | 50 60 | 0.37 0.37 | Y -7124-H |
CXL-180G | 1280 1600 | 1160 1812 | 868 1356 | 2920 3400 | 78 82.5 | 50 60 | 0.75 1.50 | Y801-2-H Y90S-2-H |
CXL-200D | 900 1080 | 375 553 | 276 407 | 1460 1750 | 70 74 | 50 60 | 0.55 0.55 | Y801-4-H |
CXL-200G | 1880 2250 | 1631 2343 | 1201 1725 | 2800 3400 | 82 85 | 50 60 | 1.50 2.20 | Y90S-2-H Y90L-2-H |
