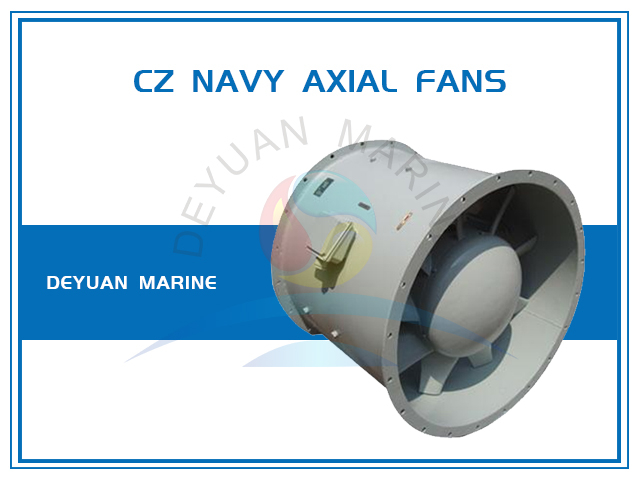

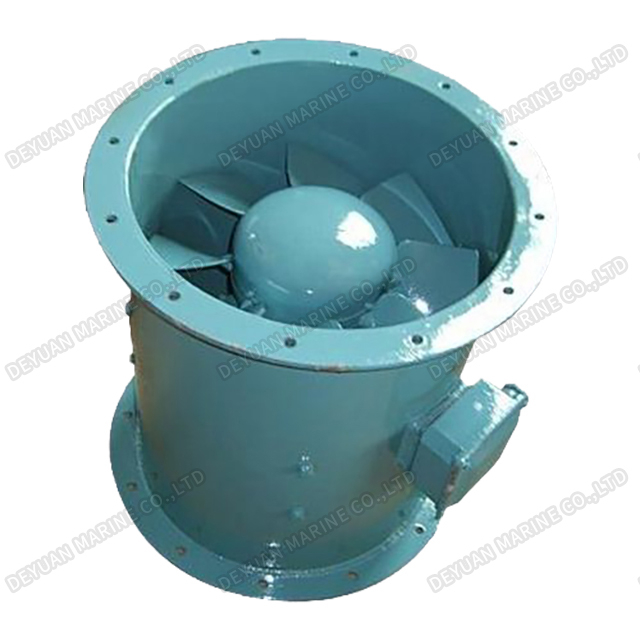

CZ(JCZ) Series Marine or Navy Axial Fan for vessels

CZ (JCZ) series marine axial flow fans (hereinafter referred to as "fans") can transport air, sea air containing salt mist, oil mist, a small amount of acid vapor formed by natural evaporation of storage batteries and other corrosive air. The ventilator is suitable for the ventilation of each compartment on the ship, the ventilation of the boiler, and also for other appropriate occasions.

The ventilator is designed and manufactured in accordance with the national standard GB/T11864-2008 "Axial Flow Fan for Ships" and the current "Ship Construction Code"; this product has passed the inspection of China Classification Society and obtained the type approval certificate.

Features

The casing can be made into open type, reversible, good anti-corrosion performance, strong anti-swing, vibration and impact parts.

Structure

The fan is made into a structure in which the motor is placed in the casing, and the impeller is directly mounted on the motor shaft.

The impeller is made of anti-corrosion aluminum alloy casting, and the casing is welded with ordinary steel materials.

The casing can be made into an integral type and can be opened along the axial direction according to the needs. The open casing is to install the impeller and the motor on the half casing that can be opened, so it is convenient for on-site maintenance and replacement of parts.

The ventilator can be equipped with 380V, 415V, 50HZ or 440V, 60HZ marine AC motor.

Fan applicable conditions

The fan can work normally for a long time under the following conditions:

Ambient temperature: -25℃~+55℃ (+50℃);

Maximum relative humidity: 95%;

Rolling: ±45° (period 8~12S);

Pitch: 15° (period 5~7S);

Heel: ±15°;

Trim: ±10°;

Vibration: Allow

Impact: Allow

Model explanation

CZ - 80 A K

C：Marine or navy

Z：Axial fan

80：Impeller cm（rounded off）

A：Impeller code

K：Open type

Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine fan, Industrial Fan, and Other Ventilation Equipment according to your detailed requirement !

Model	Flow rate m³/h	Total pressure pa	Static pressure pa	Speed r/min	Motor
					Hz Freq	Kw Power	Model
CZ-20	350	135	129	2920	50	0.25	Y632-2-H
	550	70	56
	420	195	185	3500	60
	660	100	80
CZ-20	550	230	220	2920	50	0.55	Y712-2-H
	900	185	170
	1100	130	100
	660	330	300	3500	60
	1100	265	240
	1300	195	150
CZ-30A	900	300	290	2920	50	0.75	Y801-2-H
	1200	280	250
	1500	275	240
	1800	260	2
	1200	460	440	3500	60
	1400	370	350
	1800	360	330
	2100	340	300
CZ-30B	900	240	230	2920	50
	100	230	210
	1100	210	180
	1200	190	160
	1200	300	290	3500	60
	1300	290	270
	1400	275	250
	1800	230	200
CZ-35A	3000	440	390	2920	50	1.1	Y802-2-H
	3700	370	330
	4500	290	230
	5000	200	120
	3600	530	480	3500	60	1.5	Y90S-2-H
	4500	520	440
	5400	420	330
	6000	290	180
CZ-35B	1800	410	360	2920	50	0.75	Y801-2-H
	21400	360	295
	3000	350	280
	4000	270	250
	2100	560	520	3500	60	1.1	Y802-2-H
	2800	510	450
	3600	500	420
	4800	470	380
CZ-40A	3500	630	520	2920	50	1.5	Y90S-5-H
	4550	590	500
	5000	560	460
	6000	540	420
	4200	820	730	3500	60	2.2	Y90L-2-H
	5400	800	680
	6000	800	650
	7200	790	630
CZ-40B	3000	520	490	2920	50	1.1	Y802-2-H
	4000	420	370
	4500	400	330
	5000	350	270
	3600	350	600	3500	60	2.2	Y90L-2-H
	4800	620	550
	5400	560	480
	6000	490	380
CZ-45A	3000	190	180	1460	50	1.1	Y90S-4-H
	3500	180	160
	4300	170	140
	4800	160	120
	3600	270	260	1750	60
	4200	260	230
	5200	250	200
	5760	230	170
CZ-45B	4300	550	500	2920	50	2.2	Y90L-2-H
	5500	510	450
	6500	470	390
	7300	410	310
	5200	800	730	3500	60	3	Y100L-2-H
	6600	730	650
	7200	680	570
	8760	590	450
CZ-45C	6500	630	550	2920	50	3	Y100L-2-H
	8000	550	430
	8500	500	390
	9500	450	280
	7200	910	800	3500	60	4	Y112M-2-H
	9600	790	620
	10000	720	570
	12000	650	390
CZ-50A	4800	300	260	1460	50	1.1	Y90S-4-H
	5400	280	230
	6000	240	200
	6600	200	160
	5700	440	370	1750	60	1.5	Y90L-4-H
	6450	400	330
	7200	340	280
	7900	290	230
CZ-50B	6000	730	690	2920	50	2.2	Y90L-2-H
	7500	600	530
	9000	560	460
	10000	510	400
	7200	980	900	3500	60	4	Y112M-2-H
	9000	900	490
	10500	850	700
	12000	730	580
CZ-50C	9000	780	690	2920	50	4	Y112M-2-H
	1100	680	520
	1200	610	490
	1300	550	360
	10500	1130	990	3500	60	5.5	Y132S1-2-H
	1300	980	750
	1400	890	700
	15500	790	520
CZ-60	7500	360	310	1460	50	1.5	Y90L-4-H
	9000	290	250
	10000	280	190
	1200	240	150
	9000	440	390	1750	60	2.2	Y100L1-4-H
	10500	420	3.5
	12000	390	280
	15000	270	150
CZ-70A	900	460	420	1460	50	3	Y100L2-4-H
	12000	450	390
	15000	400	320
	18000	350	250
	10500	660	620	1750	60	5.5	Y132S-4-H
	15000	630	540
	18000	560	450
	21000	490	350
CZ-70B	6000	510	450	1460	50	2.2	Y100L1-4-H
	9000	420	390
	12000	300	250
	15000	230	150
	10500	610	560	1750	60	4	Y112M-4-H
	12000	550	490
	15000	420	350
	18000	390	280
CZ-75	15000	540	490	1460	50	4	Y112M-4-H
	18000	470	390
	21000	350	240
	24000	290	180
	18000	670	590	1750	60	7.5	Y132M-4-H
	21000	600	490
	25000	520	370
	28000	420	220
CZ-80A	21000	670	590	1460	50	7.5	Y132M-4-H
	24000	600	490
	27000	530	390
	30000	500	340
	24000	820	720	1750	60	11	Y160M-4-H
	27000	820	690
	30000	760	500
	36000	700	420
CZ-80B	18000	550	490	1460	50	5.5	Y132S-4-H
	21000	470	390
	24000	400	290
	27000	300	170
	21000	720	630	1750	60	7.5	Y132M-4-H
	24000	700	590
	27000	630	490
	32000	540	350
CZ-90A	24000	660	590	1460	50	7.5	Y132M-4-H
	27000	570	490
	30000	490	390
	33000	350	230
	19050	440	330	1160	60	5.5	Y132M2-4-H
	24000	360	290
	27000	290	200
	33000	270	150
	30000	820	710	1750		15	Y160L-4-H
	33000	810	690
	36000	740	590
	40000	600	350
CZ-90B	27000	710	620	1450	50	11	Y160M-4-H
	30000	690	590
	33000	620	490
	36000	540	390
	36000	90	780	1750	60	18.5	Y180M-4-H
	39000	860	690
	42000	850	590
CZ-90C	27000	710	620	1460	50	15	Y160M-4-H
	30000	690	590
	33000	670	540
	36000	630	480
	27000	500	420	1160	60	7.5	Y160M-6-H
	30000	440	340
	33000	420	290
	36000	320	180
	32000	1000	870	1750		18.5	Y180M-4-H
	36000	960	820
	39000	930	750
	48000	720	440
CZ-100A	24000	520	470	970	50	7.5	Y160M-6-H
	27000	490	430
	30000	450	380
	36000	400	300
	30000	770	690	1160	60	11	Y160L-6-H
	33000	740	620
	36000	700	560
	40000	650	440
CZ-100B	36000	630	530	1460	50	11	Y160M-4-H
	39000	610	490
	42000	530	400
	48000	460	300
	43000	890	740	1750	60	18.5	Y180M-4-H
	46000	800	640
	50000	740	560
	57000	660	420
CZ-100C	36000	770	640	1460	50	15	Y160L-4-H
	42000	730	590
	48000	670	490
	54000	610	390
	29000	460	360	1160	60	7.5	Y160M-6-H
	33000	470	390
	39000	410	290
	42000	380	250
	43000	1000	810	1750		30	Y200L-4-H
	46000	930	770
	50000	900	710
	57000	790	500
CZ-110A	42000	580	490	970	50	15	Y180L-6-H
	48000	510	390
	54000	500	350
	60000	480	300
	50000	790	660	1160	60	22	Y200L2-6-H
	57000	730	560
	65000	680	450
	72000	560	300
CZ-110B	39000	390	320	970	50	11	Y160L-6-H
	42000	370	280
	45000	360	240
	48000	350	210
	46500	560	460	1160	60	15	Y180L-6-H
	50000	520	390
	53500	500	340
	57000	490	300
CZ-110C	42000	800	700	1460	50	18.5	Y180M-4-H
	48000	770	650
	54000	740	590
	60000	690	490
	50000	1190	980	1750	60	30	Y200L-4-H
	57500	1070	900
	64500	1020	800
	72000	850	600
CZ-120A	54000	500	390	970	50	15	Y180L-6-H
	60000	460	340
	66000	440	300
	72000	380	200
	64000	710	560	1160	60	22	Y200L2-6-H
	72000	650	470
	79000	600	390
	84000	570	320
CZ-120B	50000	660	570	970	50	18.5	Y200L1-6-H
	60000	620	490
	72000	570	390
	84000	480	250
	60000	940	820	1160	60	37	Y250M-6-H
	72000	890	745
	86000	830	560
	100000	705	350
CZ-140A	72000	560	460	970	50	22	Y200L2-6-H
	84000	550	420
	96000	490	340
	86000	820	660	1160	60	30	Y225M-6-H
	100000	810	620
	115000	730	480
CZ-140B	84000	710	540	970	50	30	Y225M-6-H
	100000	650	465
	115000	490	240
	100800	1180	900	1160	60	55	Y280M-6-H
