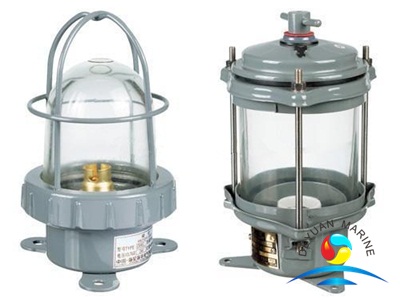

CXH8 Anchor Light
The scope of application:
Applied to the ship as for navigation lamp signal or use for anchor and take the ground as lamp signal.
Products characteristic:
1.The shell is made of good quality steel,lampshade adopts good quality glass.
2.The shell structure has fine seal performance,and it is convenient to install and remove.
Production authentication:
Approved by CCS(China Classification Society).
Production authentication:
1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships.
2.Confirm to GB/T3028-2012.
Specification:
| Type | Visibility | Level arc | Lamp holder | Bulb | Cable outside Diameter | Protection class | Material | Color | Weight |
| CXH8-1 | 3n.m | 360° | E27 | 220V40W
110V/40W
|
Φ10-Φ12 | IP55 | steel | transparent | 1.7kg |
| CXH8-2 | 2n.m | 360° | B15d | 24V/30W
24V/30W | aluminium | transparent | 0.75kg |
