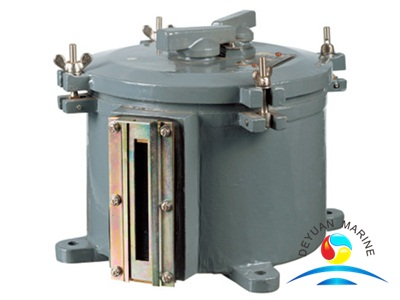

CXH10 Afterangel Light
The scope of application：
Applied to the ships as lamp signal an nights and identification when the formation navigation of ships.
Products characteristic:
1.The shell is made of good quality cast brass or cast aluminium(the materials is according to the customers requirement,when the material brass,the type is CXH10-1B)
2.The structure is firm,fine seal performance,and can prevent from the sea water immerging effectively.
3.It can change the visnal angle and adjust the light intensity according to the navigation requirement.
4.Equipped the special ship signal buib.
Production authentication:
Approved by CCS(China Classification Society).
Production authentication:
1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships.
Specification:
| Type | CXH10-1 | CXH10-1B |
| Voltage | 220V |
| Power | 2*25W |
| Visibility | 2n.m |
| Lamp holder | E27 |
| Protection class | IP55 |
| Cable outside Diameter | Φ10 |
| Material | Aluminium | Brass |
| Weight | 5.3kg | 9.3kg |
