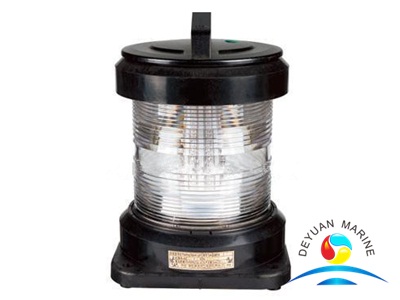

CXH14 Flashing Signal Light
The scope of application:
Applied to the ships as lamp signal when night navigation.
1.The shell is made of high-strength engineering plastic PA+GF,the lampshade adopts injection of PC,lens hood adopts good quality stainless steel.
2.The signal lights have the whole seal structure,it is waterproof under the bad environment.
3.The signal lights adopt the signal LED light source of ship rule and regulation,it is more energy saving and long life-span,it can replace bulb when open up cover.
4.The signal lights can work normally under the temperature -30℃~55℃.
Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships.
2.Confirm to the international standard IEC60598-1-2008.
3.Confirm to the standard of marine electric signal light's technical condition GB/T3028-1995.
| Type || CXH14 |
| Voltage || AC220V |
| Power || 8W |
| Visibility || 3n.m |
| Lamp holder || E27 |
| Illuminat || LED |
| Protection class || IP56 |
| Cable outside Diameter || Φ12 - Φ13 |
| Weight || 3.2kg |
| Frequency || 120~180/min |
