Product Description
| Single -deck Navigation light | CXH-11P | Shell:Engineering Plastic PA+GF Lampshade:PC Lens Hood:stainless steel | starboard light , port light, masthead light, stern light all-round light | Applied to the ship with the length 50M or above 50M as lamp signal liaison |
| CXH-1P | ||||
| CXH-1S | Shell:Stainless steel Lampshade:PC | |||
| CXH-1D | Shell:steel Lampshade:PC | |||
| CXH-21P | Shell:PA+GF Lampshade:PC Lens Hood:stainless steel | Applied to the ship with the length 12M or above 12M(＜50M) as lamp signal liaison | ||
| CXH-2P | ||||
| CXH-2S | Shell:Stainless steel Lampshade:PC | |||
| CXH-2C | Shell:steel Lampshade:PC | |||
| CXH-3P | Shell:PA+GF Lampshade:PC Lens Hood:stainless steel | Applied to the ship with the length less than 12M as lamp signal liaison | ||
| CXH-3 | Shell:steel Lampshade:glass |

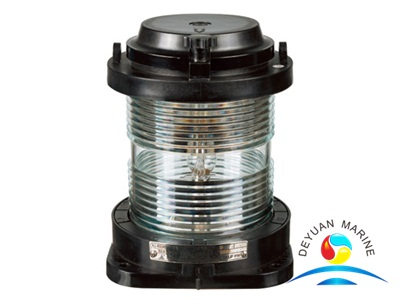

| CXH-21P Single-deck Navigation light | |||||||||
| Name | type | Visibility | Level arc | Lamp holder | Voltage/power | Protection class | Cable outside Dia. | Color | weight |
| starboard light | CXH1-21P | 2n.m | 112.5° | BAY15d | 12V/25W, 24v/25W | IP56 | Φ9 | Green | 1.2kg |
| port light | CXH2-21P | 2n.m | 112.5° | Red | 1.2kg | ||||
| masthead light | CXH3-21P | 5n.m | 225° | White | 1.2kg | ||||
| stern light | CXH4-21P | 2n.m | 135° | White/yellow | 1.2kg | ||||
| all-round | CXH6-21P | 2n.m | 360° | Red/white/Green | 1.2kg | ||||
