Product Description
Single -deck Navigation light | CXH-11P | Shell:Engineering Plastic PA+GF Lampshade:PC Lens Hood:stainless steel | starboard light , port light, masthead light, stern light all-round light | Applied to the ship with the length 50M or above 50M as lamp signal liaison |
CXH-1P | ||||
CXH-1S | Shell:Stainless steel Lampshade:PC | |||
CXH-1D | Shell:steel Lampshade:PC | |||
CXH-21P | Shell:PA+GF Lampshade:PC Lens Hood:stainless steel | Applied to the ship with the length 12M or above 12M(<50M) as lamp signal liaison | ||
CXH-2P | ||||
CXH-2S | Shell:Stainless steel Lampshade:PC | |||
CXH-2C | Shell:steel Lampshade:PC | |||
CXH-3P | Shell:PA+GF Lampshade:PC Lens Hood:stainless steel | Applied to the ship with the length less than 12M as lamp signal liaison | ||
CXH-3 | Shell:steel Lampshade:glass |

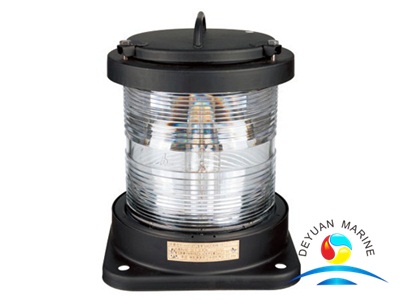

CXH-1S Single-deck Navigation light | |||||||||
Name | type | Visibility | Level arc | Lamp holder | Voltage/power | Protection class | Cable outside Dia. | Color | weight |
starboard light | CXH1-1S | 3n.m | 112.5° | B22d | 24V/60W, 110v/65W 220V/65W | IP56 | Φ11 | Green | 2.2kg |
port light | CXH2-1S | 3n.m | 112.5° | Red | 2.2kg | ||||
masthead light | CXH3-1S | 6n.m | 225° | White | 2.1kg | ||||
stern light | CXH4-1S | 3n.m | 135° | White/yellow | 2.3kg | ||||
all-round | CXH6-1S | 3n.m | 360° | Red/white/Green | 2kg |
