20' Anhydrous Hydrogen Fluoride AHF Tank Container

Frame Size: 20 Feet
Container Type: AHF Tank
Tank Material: Stainless Steel
Tank Capacity: 21m3
Design Pressure: 10.0 Bar
Cargo Carried: Anhydrous Hydrofluoric Acid UN1052
Design Approvals: IMDG T20, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT
Availability:

Product Description

20' Anhydrous Hydrogen Fluoride AHF Tank Container


Anhydrous hydrogen fluoride is a kind of matter with sharp odor. It is colorless toxic gas under standard environment conditions.  At room temperature exists predominantly in the form of H2F2 dimer. Below temperature of 19.9 °C degrees it becomes a colorless mobile volatile liquid.


Hydrogen fluoride is widely used in various industries:

1. For production of cryolite,fluoride derivatives of uranium, freons, fluoroorganic substances, matt etching of silicate glass.

2. Be used in biochemistry.

3. Creating super-acidic environment.


Anhydrous hydrogen fluoride can be stored inside steel container, and for effective transportation usually install the tank inside anISO standard frame, it is called AHF tank container.

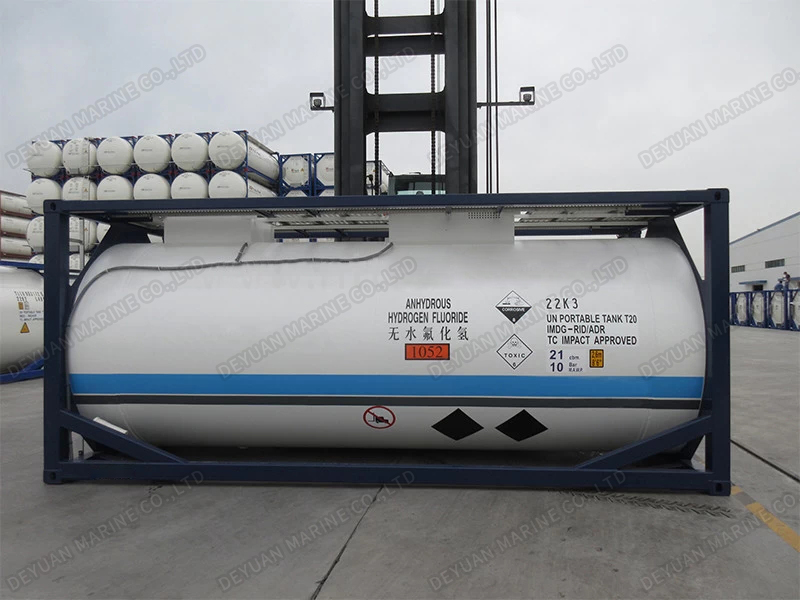

20 Anhydrous Hydrogen Fluoride-AHF TANK CONTAINER-DEYUAN MARINE


Technical Specifications

Tank Type: 20’ ISO full frame collar tank, Type UN T20 portable,
Un-insulated, no steam heating, fitted with top side rails. 2 baffles fitted
Frame Dimensions: 20’ x 8’ x 8’6”
Capacity: 21,000 Litres +/- 2%
M.G.W.: 36,000 kg
Tare (est.): 6,600 kg +/- 5%
Max Payload: 29,400 kg
Design Pressure: 10.0 Bar
Test Pressure: 15.0 Bar
Max. Allowable Vacuum: 1 Bar
Design Temp: -40°C to +65°C
Vessel Design Code: ASME VIII Div. 1
Cargo carried: Anhydrous Hydrofluoric Acid UN1052
Design Approvals: IMDG T20, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT
