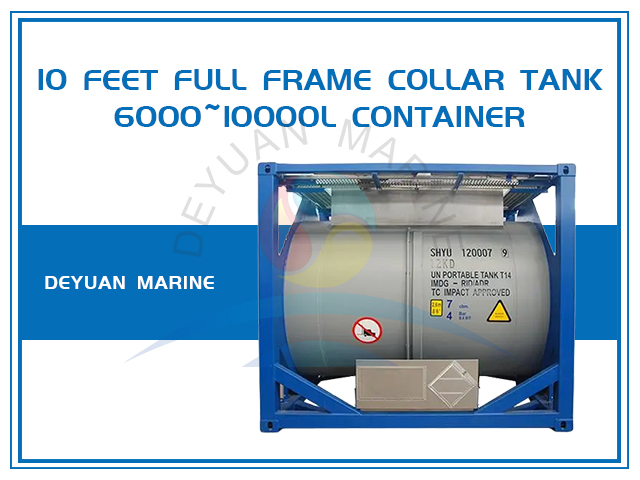

10 Feet Full Frame Collar Tank 6000~10000L Container

Frame Size: ISO 10 Feet
Frame Material: Q355D
Tank Material: 316L
Tank Capacity: 600L~10000L
Working Pressure: 4.0bar
Designed Temperature: -40°C~130°C
Heating System: Steam
Tank Design: IMDG,CFR49, ADR/RID,CSC,TIR,ISO
Availability:

Product Description

10 Feet Full Frame Collar Tank 6000~10000L Container


Tank container also called ISO container, is bulit to ISO standards, mainly consisted of Q 355D frame and 316L tank, for carring liquor, liquid food, oil or chemicals. It is an intermodal container suitable for different modes of transportation.

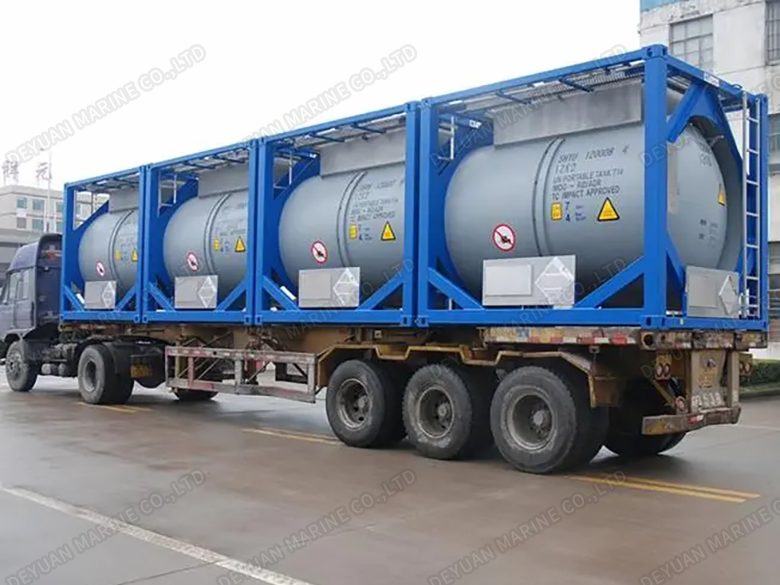

10 Full Frame Collar Tank-600010000L Container 1-DEYUAN MARINE

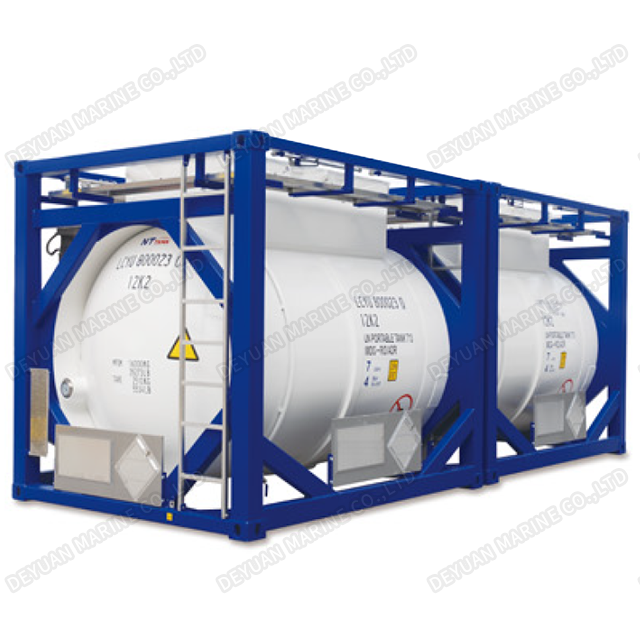

Frame: 10 Feet ISO Full Frame,also available for 20' Frame, 20' full frame.

Tank: T11, T14, T75, etc.,

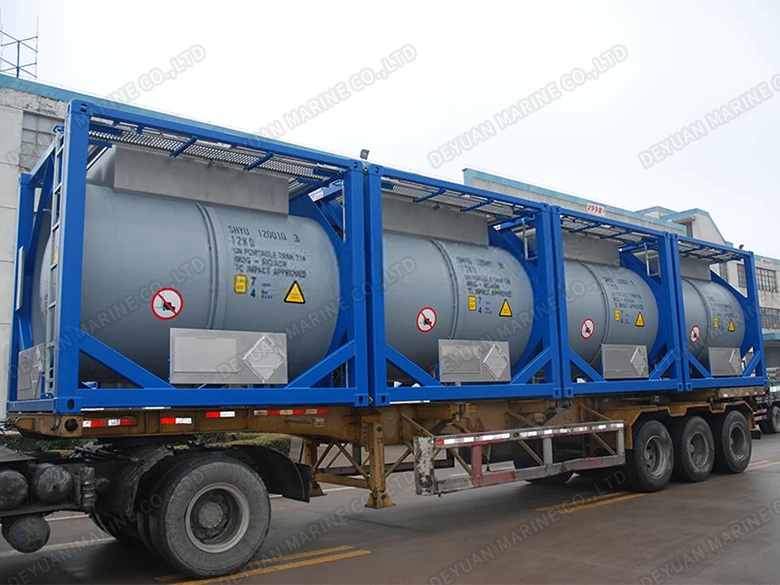

10 Full Frame Collar Tank-600010000L Container 2-DEYUAN MARINE


20 Feet- ISO Standard FRAME UN T11-2


Technical Specifications

Tank Type 10' ISO Full Frame Collar Tank,Type UN Portable Tank
Frame Dimensions 10'x8'6"
Capacity 6000~1000L
Vessel Design Code ASME VIII DIV 1 where applicable
Design Approvals IMDG,CFR49, ADR/RID,CSC,TIR,ISO


We supplied all kinds of tank container with different frame or tanks, meet most requirements for the market, support size cutomized and logo pasted, if you have any interest, do not hesitate to contact us for more details and further corperation.
