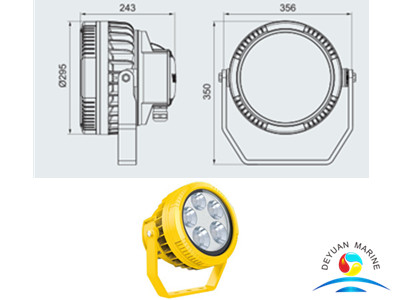

120W Marine Explosion-proof LED Aluminium Alloy Spotlight For Boats

Place of Origin: China
Material: Aluminium Alloy
Voltage: 220V/230V
Rated power 120W
Lamp: LED
Type:Explosion-proof
Warrenty: 1 Year

  • DEYUAN MARINE

Product Description

120W Marine Explosion-proof LED Aluminium Alloy Spotlight For Boats

Application

1. Widely used for floodlighting on marine platforms, chemical tankers, LNG ships and dangerous cargo wharves etc.;

2. Can reliabli in severe environments where is easily affected by moisture, vibration, or corrosion;

3. Explosive hazardous atmospheres zone 1, zone 2, zone 21, zone 22.


Features

1. Enclosure is of  maritime aluminium alloy ,powder coated surface after special corrosion-proof treatment;

2. Light source cavity and power voltage are separated to ensure the heat in light soure cavity will not be transferred to the power source cavity;

3. Constant current constant voltage drive power, wide voltage input, constant power output, cos φ ≥0.95, with functions of constant current and surge-proof, and protection against overcurrent, open circuit, and short circuit, and anti-electromagnetic interference whic can ensure the clean and quickly start of power network.

4. Small angle spotlight and distribution light design, special reflector, with high utilization;

5. Toughened glass , high energy impact, resistance to heat, heat upheaval, with high light transmittance;

6. Heat dissipation structure, increases the cooling surface area. Cross-ventilation trough can dissipates the heat from the light source cavity to ensure long service life;

7. Openable light source cavity structure , convenient for replacement of the light source;

8. Cable wiring;

9. Patented product, counterfeit will be sued.

ModelRated voltage Rated power (W)Ex-MarkLampDegree of protectionCable ebtryWeight(kg)
HRT91-50220V/230V AC 50/60Hz50Ex d e q IIC T5 Gb
Ex tD A21 IP66 T95℃
LEDIP662*M25*1.57.2
HRT91-70707.2
HRT91-1001007.5
HRT91-1201207.5
HRT91-15015012.5
HRT91-18018012.5
HRT91-20020012.5

The light fitting is supplied with Ex plug, if Ex cable gland is needed, please feel free to contact us for more details.
