Zinc Anodes for Sea Water Cooling System

Zinc Anodes for Sea Water Cooling System

Galvanic corrosion can only occur when two electrochemically different metals are close to one another and also submerged in an electrolytic liquid (such as salt water).

,sacrificial anodes were designed to  protect the structural components of the vessel,deyuan marine offer a wide variety of size and shape for option.

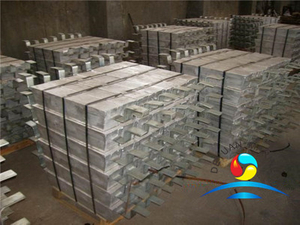

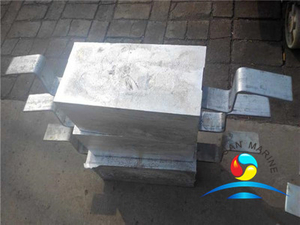

a.)Rectangle Type Zinc Anode for Sea Water Cooling System

Type	Specification(mm)	Iron Foot Size(mm)				Net Weight(kg)	gross Weight (kg)
	A*(B1+B2)*C	D	E	F	G
ZE-1	500*（115+135）*130	620	50	6	8--10	54.5	56
ZE-2	1000*（80+100）*80	1200	30	6	6--8	49	50
ZE-3	500*(105+135)*100	620	40	6	8--10	39.2	40
ZE-4	500*(80+100)880	620	30	6	6--8	24.4	25
ZE-5	400*(110+120)*50	500	35	4	5--6	15.4	16
ZE-6	300*(140+160)*40	360	60	4	5--6	12	12.5
ZE-7	200*(90+110)*40	250	30	3	5--6	5.3	5.5

b.)Disc Type Zinc Anode for Seawater Cooling Water System

Type	Specification(mm)	Iron Foot Size(mm)
	A*B	C	D	E	F	H	G	Net Weight (kg)	Gross Weight (kg)
ZE-8	300*60	40	80	50	12	6--8	6	29.8	30
ZE-9	360*40	50	100	70	14	5--6	6	28.3	28.5
ZE-10	300*40	40	80	50	12	5--6	6	19.8	20
ZE-11	200*50	35	75	45	10	5--6	4	10.3	10.5
ZE-12	180*50	35	75	45	10	5--6	4	8.3	8.5
ZE-12	120*100	30	75	45	10	8--10	4	7.3	7.5
