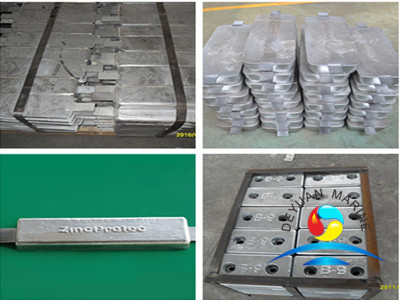

Sacrificial Zinc Anodes

Zinc Anodes is an excellent choice for saltwater,where the resistivity is generally lower.Zinc alloy anodes is mainly used to protect marine structures such as fishing boat,leisure boats,submarine,rudder,ballast tank,offshore platform,oil pipeline etc.

Different shapes of zinc anode are available,disc anodes,rod anodes,bracelet anodes,plate type zinc anodes etc.

All our zinc anode can provide CCS，ABS,BV certificate if needed,pls donot hesitate to contact us for further discussion.

a.)Welding Type Zinc Anode for Hull

Type	Specification(mm)	Iron Foot Size(mm)				Net Weight(kg)	Gross Weight (kg)
Type	ABC	D	E	F	G	Net Weight(kg)	Gross Weight (kg)
ZH-1	80014060	900	45	5--6	8--10	45.4	47
ZH-2	80014050	900	45	5--6	6--8	37.4	39
ZH-3	80014040	900	45	5--6	5--6	29.5	31
ZH-4	60012050	700	40	5--6	6--8	24	25
ZH-5	40012050	470	35	4--5	6--8	15.3	16
ZH-6	50010040	580	40	4--5	5--6	12.7	13.6
ZH-7	40010040	460	30	4--5	5--6	10.6	11
ZH-8	30010040	360	30	3--4	5--6	7.2	7.5
ZH-9	25010040	310	30	3--4	5--6	6.2	6.5
ZH-10	1807040	230	25	3--4	5--6	3.3	3.5

b.)Zinc Anode for Storage Tank

Type	Specification	Iron Feet Size			Net Weight	Gross Weight
Type	A(B1+B2)C	D	F	G	Net Weight	Gross Weight
ZC-1	750(115+135)130	900	16	8--10	82	85
ZC-2	500(115+135)130	650	16	8--10	55	56
ZC-3	500(105+135)100	650	16	8--10	39	40
ZC-4	300(105+135)100	400	12	8--10	24.6	25

c.)Zinc Anodes for ballast water tank

Model	Zinc Anodes specification(mm)						Net weight (kg)	Gross weight (kg)
Model	AX(B1+B2)XC	D	E	F	G	H	Net weight (kg)	Gross weight (kg)
ZT-1	500X(115+135)X130	800	50	6	40	60	53.5	56
ZT-2	1500X(65+75)X70	1800	/	16	20	40	48.3	50
ZT-3	500X(110+130)X120	800	50	6	40	60	48	50
ZT-4	1000X(58.5+78.5)X68	1300	/	16	20	40	31.8	33
ZT-5	800X(56+74)X65	1100	/	16	20	40	24	25
ZT-6	1150X(48+54)X51	1450	/	12	15	35	18.6	20
ZT-7	250X(80+100)X85	310	30	4	6--8	0	12.8	13
ZT-8	200X(70+90)X70	260	30	3	6--8	0	7.3	7.5

d.)Zinc Anodes for port and offshore Engineering Facilities

Type	Specification(mm)	Thread Steel Foot Size(mm)			Flat Steel Foot Size(mm)				Net Weight (kg)	Gross Weight (kg)
Type	A(B1+B2)C	D	F	G		E	F	G	Net Weight (kg)	Gross Weight (kg)
ZT-1	1000（115+135）130	1250	18	45	1250	40	8	45	111.6	115
ZT-2	750（115+135）130	1000	16	45	1000	40	8	445	83	85
ZT-3	500（115+135）130	750	16	45	750	40	6	45	55	56
ZT-4	500(105+135)100	750	16	35	750	40	6		38.6	40

e.)Zinc Anode for Sea Water Cooling System

Type	Specification(mm)	Iron Foot Size(mm)				Net Weight(kg)	gross Weight (kg)
Type	A(B1+B2)C	D	E	F	G	Net Weight(kg)	gross Weight (kg)
ZE-1	500（115+135）130	620	50	6	8--10	54.5	56
ZE-2	1000（80+100）80	1200	30	6	6--8	49	50
ZE-3	500(105+135)100	620	40	6	8--10	39.2	40
ZE-4	500*(80+100)880	620	30	6	6--8	24.4	25
ZE-5	400(110+120)50	500	35	4	5--6	15.4	16
ZE-6	300(140+160)40	360	60	4	5--6	12	12.5
ZE-7	200(90+110)40	250	30	3	5--6	5.3	5.5

f.)Zinc Anode for Buried Pipeline

Type	Specification(mm)	Iron Feet Size				Net Weight(kg)	Gross Weight (KG)
Type	A(B1+B2)C	D	E	F	G	Net Weight(kg)	Gross Weight (KG)
ZP-1	1000（78+88）85	700	100	16	30	49	50
ZP-2	1000（65+75）65	700	100	16	25	32	33
ZP-3	800（60+80）65	600	100	12	25	24.5	25
ZP-4	650（58+64）60	500	100	12	20	21.5	22
ZP-5	650（58+64）60	400	100	12	20	17.6	18
ZP-6	550（58+64）60	400	100	12	20	14.6	22
ZP-7	600（52+56）54	460	100	12	15	12	12.5
ZP-8	600（40+48）45	360	100	12	15	8.7	9
