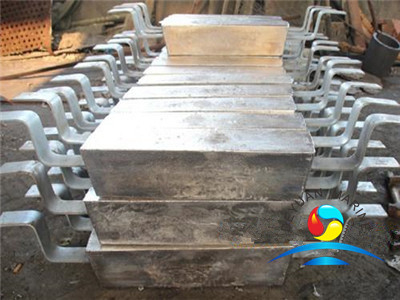

Zinc Anodes for Buried Pipeline

Zinc Anodes for Buried Pipeline

Zinc Anodes is an excellent choice for saltwater,where the resistivity is generally lower.Zinc alloy anodes is mainly used to protect marine structures such as fishing boat,leisure boats,submarine,rudder,ballast tank,offshore platform,oil pipeline etc.

Different shapes of zinc anode are available,disc anodes,rod anodes,bracelet anodes,plate type zinc anodes etc.

All our zinc anode can provide CCS，ABS,BV certificate if needed,pls donot hesitate to contact us for further discussion.

Zinc Anode for Buried Pipeline Parameter:

Type	Specification(mm)	Iron Feet Size				Net  Weight(kg)	Gross Weight (KG)
	A*(B1+B2)*C	D	E	F	G
ZP-1	1000*（78+88）*85	700	100	16	30	49	50
ZP-2	1000*（65+75）*65	700	100	16	25	32	33
ZP-3	800*（60+80）*65	600	100	12	25	24.5	25
ZP-4	650*（58+64）*60	500	100	12	20	21.5	22
ZP-5	650*（58+64）*60	400	100	12	20	17.6	18
ZP-6	550*（58+64）*60	400	100	12	20	14.6	22
ZP-7	600*（52+56）*54	460	100	12	15	12	12.5
ZP-8	600*（40+48）*45	360	100	12	15	8.7	9
