Product Description

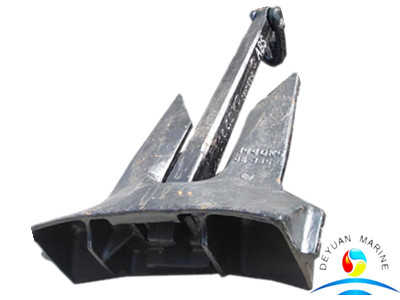

ZG200-450 Casting Steel AC-14 Anchor High Holding Power Anchor with Certificate
Product Name: AC-14 High Holding Power Anchor
Weight: 75-100000kg
Type: High Holding Power Anchor
Material: ZG200-450
Technology: Casting
Certificate: CCS, ABS, BV, NK, KR, GL, LR, DNV, RINA, RMRS, ISO9001
Loading Port: Qingdao, Shanghai, other as required
Payment Terms: T/T, L/C, D/P, other negotiable
Advantages: OEM Acceptable; Customerized Avaliable
AC-14 High Holding Power(HHP) anchors are stockless anchors and are available as a standard anchor or as the fully balanced anchor type.
AC14 anchors are normally supplied with certification from the major classification societies.
| Nominal Weight | Size (mm) | |||||||
| (KG) | A | B | C | D | E | F | G | J |
| 75 | 550 | 326 | 350 | 606 | 188 | 185 | 115 | 24 |
| 495 | 1025 | 610 | 650 | 1135 | 350 | 348 | 235 | 50 |
| 1080 | 1350 | 805 | 855 | 1495 | 461 | 455 | 280 | 62 |
| 2100 | 1686 | 1005 | 1070 | 1865 | 575 | 570 | 380 | 82 |
| 3040 | 1896 | 1130 | 1204 | 2100 | 646 | 640 | 410 | 90 |
| 4840 | 2225 | 1330 | 1410 | 2465 | 760 | 755 | 480 | 110 |
| 5175 | 2275 | 1358 | 1443 | 2520 | 777 | 770 | 480 | 110 |
| 6000 | 2390 | 1426 | 1515 | 2646 | 816 | 810 | 500 | 110 |
| 7875 | 2610 | 1558 | 1655 | 2890 | 891 | 884 | 600 | 130 |
| 8775 | 2707 | 1614 | 1715 | 2996 | 924 | 916 | 630 | 135 |
| 9675 | 2805 | 1674 | 1778 | 3104 | 957 | 948 | 640 | 140 |
| 10125 | 2850 | 1700 | 1806 | 3152 | 972 | 960 | 640 | 140 |
| 11025 | 2930 | 1750 | 1859 | 3247 | 1001 | 990 | 660 | 145 |
| 12075 | 3010 | 1800 | 1906 | 3343 | 1027 | 1020 | 700 | 155 |
| 13350 | 3132 | 1870 | 1986 | 3470 | 1069 | 1060 | 700 | 155 |
| 14100 | 3178 | 1896 | 2015 | 3520 | 1084 | 1076 | 730 | 160 |
| 15400 | 3272 | 1954 | 2075 | 3626 | 1117 | 1108 | 770 | 170 |
| 16900 | 3350 | 2000 | 2126 | 3720 | 1144 | 1144 | 770 | 170 |
| 17800 | 3440 | 2050 | 2180 | 3806 | 1173 | 1162 | 800 | 180 |
| 18800 | 3500 | 2088 | 2220 | 3875 | 1193 | 1185 | 800 | 180 |
| 20000 | 3573 | 2132 | 2265 | 3956 | 1220 | 1210 | 820 | 185 |
| 25000 | 4100 | 2437 | 2600 | 4577 | 1399 | 1375 | 880 | 200 |
| 30000 | 4358 | 2888 | 2765 | 4663 | 1484 | 1380 | 940 | 210 |
