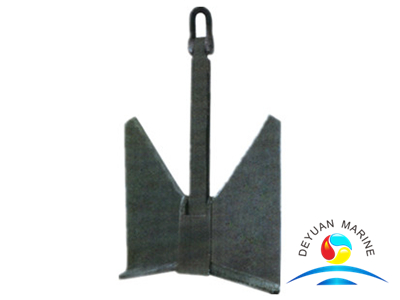

TW Type Anchor or High Holding Power Stockless Pool Anchor

Type: TW Type Pool Anchor
Brand: Deyuan Marine
Feature: High Holding Power Anchor
Construction: Stockless Anchor
Technology: Casting Anchor
Surface: Black Paint or Mirror Polishing
Service life: 12-15 years
Usage: Ship Anchorage, Ship Docking
Payment Terms: T/T, L/C, Western Union, Paypal

Product Description

TW Type Anchor or High Holding Power Stockless Pool Anchor


Name:Pool Stockless Anchor
StandardConfirm to IACS API and OCIMF regulation
Size60kg to 45000kg
AdvantagePool stockless Anchor is widely used ship anchor: N type Tw Type
CertificationIACS: KR, LR, BV, NK, ABS, DNV, CCS...
FunctionShip anchor
SurfaceBlack painted or as required
MaterialCast steel
TypeStockless anchor
ProductionIACS API OCIMF standard


1. TW type Pool Anchor
2. Weight: 45-20000Kg
3. Certificate: CCS, DNV, GL, BV, ABS

4. Material: Steel

5. Advantage: Pool Anchor is widely used, for its high holding power.Structured from high tensile steel and approved by all classifications, we are able to offer you the best.


NOMINAL WEIGHT(kg)A(mm)h (mm)h1 (mm)L (mm)L1 (mm)B (mm)
4554038251126413264
6861843858145473302
9165446462151502318
13672751670164562350
15976254272170591367
18180056875176619384
22786461281191667413
34098770092218764474
4541071771102239841521
5671168830110258902559
6801245883116273962597
90713729721353021059656
998138710031403111092676
1134147310481433241140706
1361161311301503521270775
1588164811711533631273789
1814172412251603791334827
2268185413191734081437889
2722197514031854351529948
3175208314751954581606996
40822261161321049217531080
52162450174022954018961175
60002450174022954018961175
81652845202027061521001364
90722946209427664822801413
113403175225629769924561522
136083372239431674226081616


We supply various high holding power anchors from 50KG to 20,000KG

- We supply various high holding power anchors to be used for ships, fleets, mooring ships, etc.
- Made of  heavy grade cast steel to assure the stability, safety and durability in sailling.
- Anchor weight from 60kg to 20000kg.
-Finish: black bitumen paint or hot dip galvanized (Complying with customer's requirements)

More TW type pool anchor  can be offered,pls contact us for more details.
