Vessel Inflatable Pneumatic Rubber Yokohama Fender

Brand:Deyuan Marine
Material:Rubber
Name:Yokohama Fender
Type:Inflatable type
Usage:Marine Boat offshore
Delivery Time:10 -30 days
Transport :By sea
Payment term:T/T ,L/C
Size:Customer needs

Product Description

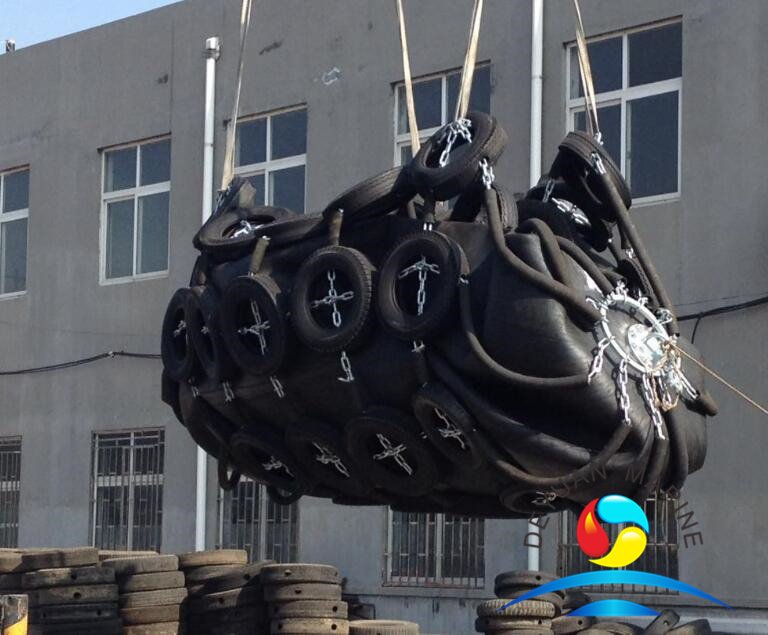

Vessel Inflatable Pneumatic Rubber Yokohama Fender


Yokohama rubber fenders are used to moor and moor one ship to another ship or mooring structure. The inflatable rubber fender test and inspection procedures for high-pressure Marine Rubber Fenders are specified.

Inflatable Marine Rubber Fenders are extensively used for ship to ship transfers at mid sea, double banking operations as well as vessel to berth transfers at dock/jetty.


Floating Yokohama rubber fender is the most widely used anti-crash device for ships in the world. Vessel Inflatable rubber fender is made of synthetic fiber-reinforced rubber sheet and compressed air, which makes it float on the sea surface.

Advantages of Yokohama marine rubber fenders:

Comply with ISO17357: 2002 "High-pressure inflatable boat rubber fender "

Low reaction force and low hull pressure

More secure and reliable

The most cost-competitive system

Lower mooring force

Shear strength advantage

Follow the trend

Simple installation and low cost

Low maintenance costs

Various optional accessories


There are two initial pressure rating for Vessel rubber fenders:

A) Pneumatic 50 (Initial internal pressure 50 kPa)

B) Pneumatic 80 (Initial internal pressure 80 kPa)


If you need more information of Inflatable Yokohama Rubber Fender please contact us directly .

DiameterxLengthInitial internal pressure(kPa)Energy(kj)Reaction(kN)Hull pressue(kPa)
(mm)
500x100050664132
600x100050874126
700x15005017137135
1000x15005032182122
1000x20005045257132
1200x20005063297126
1350x250050102427130
1500x300050153579132
1700x300050191639128
2000x350050308875128
2500x4000506631381137
2500x5500509432019148
3300x45005011751884130
3300x65005018143015146
4500x90005047525747146


Note:The weight of the ball by ball weight(without jacket),the weight of error of ±10%,reaction force error of ±10%
