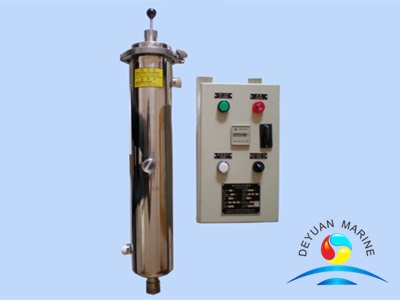

UV Sterilizer for Marine Sewage Treatment Plant
UV sterilizer features:
1.Good quality UV lamp&quartz tube was imported and used in this terilizer
2.Manual On-line washing was adopted,no need to remove the quartz tube
3.This sterlizer contains the UV monitor controller,the alarm will be open if there is any defect on the UV lamp&quartz tube.T hat can be ensure the quanlity of the drinking water.
UV Sterilizers Technical Data
Model | UV1 | UV1.5 | UV2 | UV3 | UV5 | ~UV40 |
Capacity | 1M3/H | 1.5M3/H | 2M3/H | 3M3/H | 5M3/H | 40M3/H |
UV Sterilizers connection: The unit is completely arranged inner pipeline and cabling, for pipeline there is only inlet ,

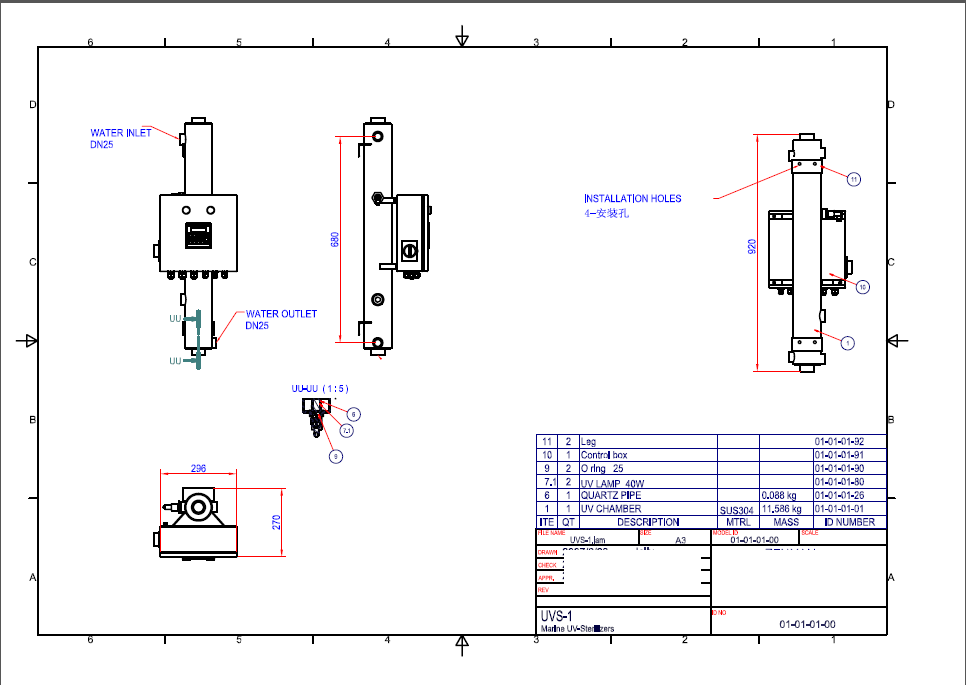

outlet for user. Furthermore there is only power supply and remote alarm to be connected. U V Sterilizers drawing for reference
