Product Description
US Type H323 A323 Carbon Steel And Alloy Eye Grab Hooks
Grab hooks are designed to grab to keep a chain from slipping off the hook.Hooks are widely used for lifting,pulling,we offer US type,Italian type etc grab hook with a variety of size.
As per the shape of the hook,we devide it into eye grab hook 323 and clevis grab hook 330,material of the hook is 45#carbon steel,40Cr alloy steel.In alloy grab hook,we will mark the number G70 and its size on the hook.
This Eye grab hook is with a wide range of size from 1/4" to 3/4 ",If you don’t see the hook you need or aren’t sure what might be the best hook for your use,pls contact our sales team directly.
| Size(in) | WLL（lbs) | Dimensions(in) | Weight (lbs) | |||
| H-323 | A-323 | B | E | R | ||
| 1/4" | 2600 | 3600 | 0.5 | 0.34 | 1.97 | 0.28 |
| 5/16" | 3900 | 5400 | 0.56 | 0.44 | 2.25 | 0.45 |
| 3/8" | 5400 | 7500 | 0.66 | 0.5 | 2.56 | 0.79 |
| 7/16" | 7200 | 1000 | 0.75 | 0.56 | 2.94 | 1.19 |
| 1/2" | 9200 | 12750 | 0.88 | 0.66 | 3.38 | 1.8 |
| 5/8" | 12750 | 19000 | 1.06 | 0.78 | 4.11 | 3.3 |
| 3/4" | 18500 | 27000 | 1.38 | 0.94 | 5.16 | 6 |

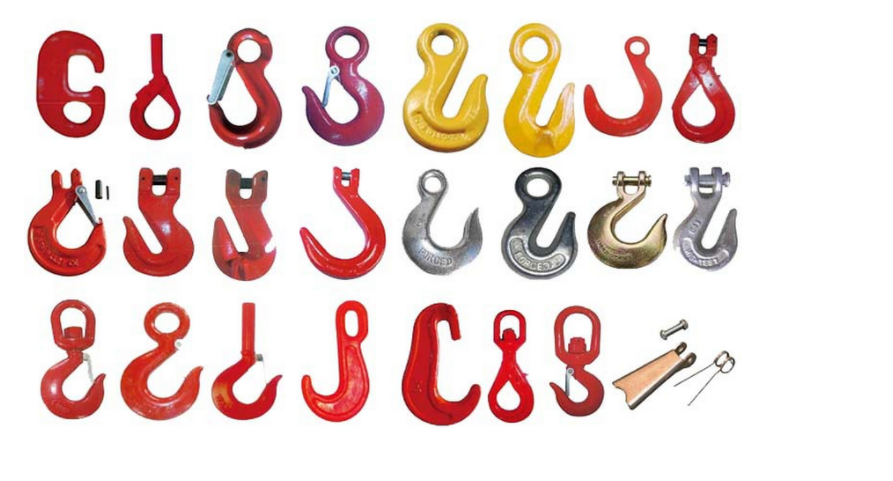

Large Opening hooks,clevis sling hooks with latches,Eye Foundry hooksA-329,screw sling hooks,trailer hooks,powerful hooks for chain,small tow hook,caw tow hooks,wire rope clamp hooks also can be provided
