Product Description

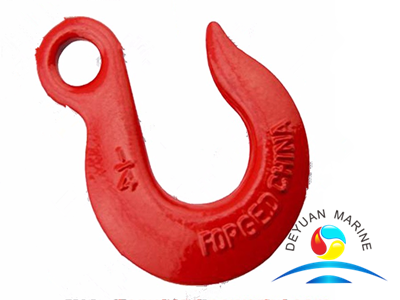

H324 A324 Carbon or Alloy Steel Eye Slip Lifting Hooks
We offer two kinds of eye slip lifting hooks,one is H324 carbon steel eye slip hooks,the other is A324 alloy steel slip lifting hooks.
This slip lifting hook is designed to be used with grade 43chain,hooks are forged, heat treated and tempered,surface treatment are available in Zinc plated, powder coating finished or self colored.A wide range sizes of slip hooks can be provided,ranging from 1/4″ to 3/4"
Ultimate load is 4times the working load limit.If you are looking for any slip hooks for your job or aren’t sure what might be the best hook for your use,pls donot hesitate to contact our sales team by email or phone.
1)Eye Slip Lifting Hooks
Size(in) | WLL(lbs) | Dimensions(in) | Weight (lbs) | |||
H-324 | A-324 | B | E | R | ||
1/4" | 1950 | 2750 | 0.5 | 0.94 | 2.56 | 0.4 |
5/16" | 2875 | 4300 | 0.63 | 1.06 | 2.95 | 0.7 |
3/8" | 4000 | 5250 | 0.72 | 1.31 | 3.36 | 1 |
7/16" | 5000 | 7000 | 0.81 | 1.56 | 3.88 | 1.6 |
1/2" | 6500 | 9000 | 0.94 | 1.69 | 4.28 | 2.4 |
5/8" | 9250 | 13500 | 1.13 | 2 | 5.22 | 4 |
3/4" | 12500 | 19250 | 1.38 | 2.13 | 5.8 | 6.5 |
2)Eye Slip Hooks with Latch
Size(in) | WLL(lbs) | Dimensions(in) | Weight (lbs) | ||||
carbon | Alloy | A | B | C | D | ||
1/4 | 1950 | 2750 | 0.5 | 0.75 | 2.56 | 0.79 | 0.42 |
5/16 | 2875 | 4300 | 0.63 | 0.88 | 2.95 | 0.79 | 0.72 |
3/8 | 4000 | 5250 | 0.72 | 1.1 | 3.36 | 1.02 | 1.03 |
7/16 | 5000 | 7000 | 0.81 | 1.25 | 3.88 | 1.06 | 1.64 |
1/2 | 6500 | 9000 | 0.94 | 1.38 | 4.28 | 1.3 | 2.45 |
