Type: A type Hall Anchor
Brand: Deyuan Marine
Construction: Stockless Anchor
Surface: Galvanised or Black painted
Material: Casting Iron, Casting Steel.
Service life: 12-15 years
Usage: Ship Anchorage, Ship Docking
Payment Terms: T/T, L/C, Western Union, Paypal
Product Description
Stockless Hall Anchor Type A Hot Dip Galvanised or Black Painted for sale
Weight: 40--20000KG
Halls anchor is a stockless bow anchor type.
The Halls anchor is one of the most popular anchors designed to fit anchor pockets on most ships.
Halls anchors are normally supplied with certification and these can be from any of the major classification societies.

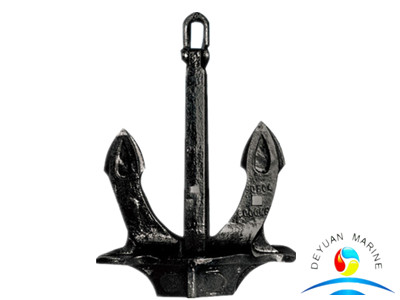

A Type Hall Anchor
| Dimensions: | ||||||
| NOMINAL | SIZE(mm) | |||||
| WEIGHT(KG) | H | h | h1 | L | L1 | B1 |
| 40 | 557 | 303 | 67 | 430 | 303 | 198 |
| 60 | 637 | 347 | 76 | 492 | 317 | 227 |
| 100 | 760 | 410 | 90 | 584 | 410 | 227 |
| 125 | 814 | 443 | 97 | 629 | 443 | 290 |
| 150 | 866 | 470 | 103 | 700 | 470 | 308 |
| 10 | 919 | 500 | 109 | 710 | 500 | 327 |
| 240 | 1019 | 552 | 120 | 790 | 552 | 361 |
| 300 | 1095 | 595 | 130 | 844 | 595 | 388 |
| 350 | 1160 | 630 | 138 | 898 | 630 | 412 |
| 420 | 1160 | 660 | 145 | 946 | 660 | 434 |
| 480 | 1222 | 690 | 152 | 988 | 690 | 454 |
| 570 | 1355 | 732 | 161 | 1042 | 732 | 481 |
| 660 | 1356 | 769 | 169 | 1096 | 769 | 506 |
| 780 | 1506 | 813 | 178 | 1160 | 813 | 535 |
| 900 | 1580 | 855 | 188 | 1220 | 855 | 560 |
| 1020 | 1645 | 855 | 188 | 1220 | 855 | 560 |
| 1140 | 1705 | 926 | 203 | 1319 | 926 | 605 |
| 1290 | 1778 | 791 | 195 | 1268 | 891 | 584 |
| 1440 | 1844 | 965 | 203 | 1379 | 926 | 630 |
| 1590 | 1906 | 1035 | 226 | 1475 | 1035 | 677 |
| 1740 | 1956 | 1068 | 234 | 1574 | 1068 | 698 |
| 1920 | 2031 | 1104 | 241 | 1568 | 1104 | 722 |
| 2100 | 2093 | 1120 | 245 | 1560 | 1120 | 732 |
| 2380 | 2150 | 1165 | 225 | 1657 | 1165 | 763 |
| 2460 | 2207 | 1194 | 262 | 1700 | 1194 | 784 |
| 2640 | 2259 | 1222 | 265 | 1760 | 1222 | 793 |
| 2850 | 2318 | 1253 | 275 | 1787 | 1253 | 822 |
| 3060 | 2374 | 1283 | 282 | 1732 | 1283 | 841 |
| 3300 | 2432 | 1317 | 288 | 1880 | 1617 | 862 |
| 3540 | 2490 | 1349 | 295 | 1926 | 1394 | 883 |
| 3780 | 2547 | 1376 | 302 | 1965 | 1376 | 902 |
| 4050 | 2610 | 1406 | 309 | 2008 | 1406 | 924 |
| 4320 | 2695 | 1435 | 316 | 2051 | 1435 | 943 |
| 4590 | 2712 | 1465 | 332 | 2093 | 1465 | 962 |
| 4890 | 2769 | 1498 | 329 | 2135 | 1498 | 984 |
| 5000 | 2800 | 1510 | 332 | 2156 | 1510 | 992 |
| 5610 | 2899 | 1569 | 345 | 2234 | 1569 | 1031 |
| 6000 | 2965 | 1605 | 352 | 2284 | 1605 | 1054 |
| 6450 | 3037 | 1644 | 361 | 2340 | 1644 | 1080 |
| 6900 | 3100 | 1681 | 369 | 2393 | 1681 | 1105 |
| 7350 | 3100 | 1688 | 370 | 2400 | 1688 | 1109 |
| 7800 | 3235 | 1752 | 385 | 2493 | 1752 | 1152 |
| 8300 | 3363 | 1788 | 393 | 2545 | 1788 | 1176 |
| 8700 | 3355 | 1816 | 399 | 2585 | 1816 | 1195 |
| 9300 | 3430 | 1850 | 417 | 2632 | 1850 | 1226 |
| 9900 | 35802 | 1896 | 417 | 2699 | 1896 | 1248 |
| 10500 | 3571 | 1934 | 425 | 2752 | 1934 | 1273 |
| 11100 | 3638 | 1970 | 4433 | 2803 | 1970 | 1297 |
| 11700 | 3702 | 2005 | 441 | 2853 | 2005 | 1320 |
| 12300 | 3764 | 2039 | 448 | 2901 | 2039 | 1342 |
| 12900 | 3824 | 2072 | 455 | 2947 | 202 | 1363 |
| 13500 | 3882 | 2104 | 462 | 2992 | 2104 | 1384 |
| 14100 | 3939 | 2135 | 469 | 3036 | 2135 | 1404 |
| 14700 | 3994 | 2165 | 476 | 3078 | 2165 | 1424 |
| 15400 | 4056 | 2199 | 483 | 3126 | 2199 | 1446 |
| 16100 | 4117 | 2232 | 490 | 3173 | 2232 | 1468 |
| 16900 | 4184 | 2268 | 498 | 3225 | 2268 | 1492 |
| 14800 | 4252 | 2308 | 506 | 3281 | 2308 | 1518 |
| 18800 | 4330 | 2350 | 516 | 3341 | 2350 | 1546 |
| 20000 | 4420 | 2399 | 526 | 3411 | 2399 | 1578 |
| 21500 | 4528 | 2458 | 539 | 3494 | 2458 | 1617 |
| 23000 | 4631 | 2514 | 551 | 3573 | 2514 | 1654 |
| 24500 | 4730 | 2568 | 563 | 3649 | 2568 | 1689 |
| 26000 | 4825 | 2619 | 574 | 3722 | 2619 | 1723 |
| 27500 | 4916 | 2668 | 585 | 3792 | 2668 | 1756 |
| 29000 | 5004 | 2716 | 595 | 3860 | 2716 | 1787 |
| 31000 | 5126 | 2774 | 609 | 3949 | 2774 | 1822 |
| 33000 | 5234 | 2833 | 688 | 4032 | 2833 | 1860 |
| 35500 | 5363 | 2903 | 637 | 4132 | 2903 | 1906 |
| 38500 | 5510 | 2982 | 655 | 4245 | 2982 | 1958 |
| 42000 | 5672 | 3070 | 674 | 4370 | 3070 | 2015 |
| 46000 | 5847 | 3165 | 695 | 4505 | 3165 | 2078 |
More Hall anchor type A can be offered, pls contact us for more details.
Anchor can be supplied as following:
Bruce anchor, Fold anchor, Mushroom anchor, Eight Fluke anchor, River anchor
