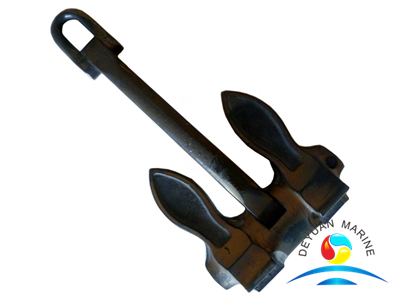

Marine Byers Stockless Anchor with LR class approval certificate

Type: Byers Anchor
Brand: Deyuan Marine
Surface: Galvanised or Black painted
Material: Casting Iron, Casting Steel.
Service life: 12-15 years
Payment Terms: T/T, L/C, Western Union, Paypal
Availability:

Product Description

Marine Byers Stockless Anchor with LR class approval certificate


1. Byers Anchor Material: Steel ZG200-400C, UR W29 / UR W18/ Stainless Steel/ Carbon steel / Duplex Steel/ Other.

2. Weight: 220KGS(485.02 lbs) to 9550KGS(21054.15 lbs).

3. Certificate: ABS, LR, BV, NK, DNV, RINA, RS, IRS, CCS.


The Byers anchor is a conventional type stockless ships anchor.
The Byers anchor weight range is normally between 50kg to 20000kg.

The Byers anchor's surface treatment can be Galvanised or Black painted, with pitch or asphalt.

Byers anchors can be supplied with certification from any of the major classification societies.


Specifications :
Weight of Anchor (kg) Approximate Dimension in mm
A B C D
220 165 420 495 1041
266 165 432 502 1067
318 178 432 502 1092
360 178 457 600 1143
5900 457 1168 1473 3099
6800 470 1321 1549 3353
8000 477 1422 1702 3353
8900 559 1499 1803 3505
9200 572 1499 1803 3658
9550 572 1524 1803 3759

More Byers Anchor can be offered, pls contact us for more details.
