Antique Long Shanked Casting Steel Marine Boat Black Admiralty Anchor

Brand:Deyuan Marine
MOQ:1 pc
Material:Casting Steel
Application: large yachts, cruise vessels, container shippers
Certificate: ABS, LR, DNV, GL, BV, NK, KR, CCS
Payment term:T/T ,L/C,Paypal ,Wastern Union etc
Delivery Time:15 -30 days

Product Description

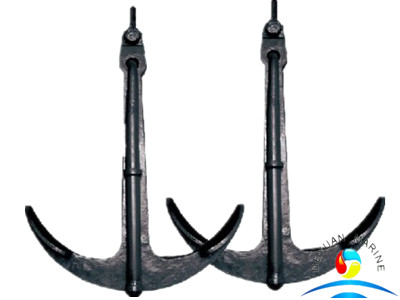

Antique Long Shanked Casting Steel Marine Boat Black Admiralty Anchor


Marine Black Admiralty anchor is a long - standing anchor rod. Our Casting steel anchor in accordance with national standards GB/T545-1996, in line with national standards and international standards like China CCS, ZC, RINA, BV, Italy, LR, GL, DNV, NK, KR, USA, Norway, USA etc.


Antique Long Shanked Admiralty anchor has a simple structure, shank and fluke is a body cast ,The fluke is fixed,not turning. It is application in the boat and sailing , the weight of black marine anchor are from 50kgs to 10000kgs , The maximum of holding power to weight ratio can reach 12.


Casting Steel Admiralty Anchor Feature :

1.Reliable quality

2.Admiralty anchor weight:50kg-10000kg

3.Cordial service and favorable price

4.Admiralty anchor Cert.: ABS, CCS, GL, LR, BV and DNV.

5.Standard: GB Material: cast steel, forged steel

6.Surface treatment: black paint, hot dip galvanizing

7.Packing: tons of bags, naked, etc.

8.Delivery date: 5~25 days


Deyuan Marine is a professional manufacturer of investment castings, lost wax castings or precision castings. And both of sodium silicate and silica sol process had been adopted. We mainly produce stainless steel castings, carbon steel casting and alloy casting.



We can offer  Marine Boat Admiralty Anchor , and also other various type marine anchor , such as AC-14 HHP anchor, JIS Stockless anchor, Pool anchor , Danforth anchor, Bruce anchor and so on , the  Steel marine anchor can be supplier with certificates from the major class society like ABS, LR, DNV, GL, BV, NK, KR, CCS etc.


 If you are interested in our Steel Marine Admiralty Anchor ,kindly send the inquiry or call our sales team directly , we will handle your case quickly and quote for you .


Antique Long Shanked Marine Admiralty Anchor Data Sheet:

Weight Size (mm)
(Kg) H h h1 B C
50 960 230 42 635 185
75 1105 266 45 710 210
100 1215 293 49 780 230
125 1310 316 52 840 245
150 1395 336 55 900 265
200 1535 370 61 990 290
250 1650 398 65 1065 310
300 1755 423 70 1105 330
400 1930 465 77 1240 365
500 2080 502 84 1335 390
600 2210 533 89 1440 415
700 2330 560 93 1500 440
800 2435 587 97 1570 460
900 2530 610 101 1630 475
1000 2620 633 104 1685 495
1250 2825 680 112 1810 535
1500 3000 725 118 1955 565
2000 3300 797 131 2140 625
2500 3550 857 138 2270 672
3000 3780 912 150 2415 715
3500 3980 960 158 2540 750
4000 4160 1000 155 2650 785
5000 4480 1100 184 2830 800
6000 4740 1113 190 3000 838
7000 5025 1180 200 3165 960
8000 5240 1280 210 3300 980
9000 5450 1330 220 3440 990
10000 5680 1340 230 3600 1085

More Admiralty anchor can be offered,pls contact us for more details
