Sound-Powered Telephone Safety Barrier

Sound-Powered Telephone Safety Barrier

Product Introduction

The S802 Sound-Powered Telephone Safety Barrier is a critical interface component designed to enable safe and compliant integration of standard sound-powered telephone circuits into hazardous areas on marine vessels and offshore installations. By providing an approved electrical isolation barrier, the S802 allows for the extension of essential, fail-safe communication into classified explosive atmospheres while maintaining the intrinsic safety of the overall system.

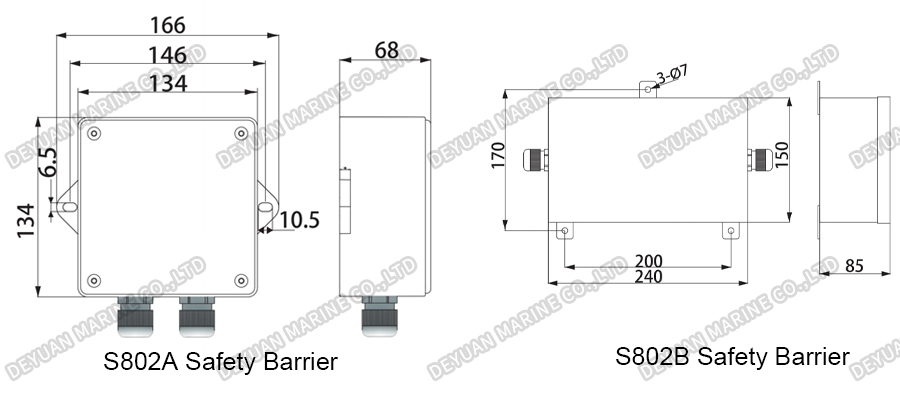

Drawing

Core Function & Principle

The S802 Safety Barrier acts as a passive, galvanic isolation device installed at the boundary between a "safe area" (e.g., the vessel's bridge) and a "hazardous area" (e.g., a cargo deck or pump room). It is wired in series with the sound-powered telephone line. Its core function is to limit the electrical energy (current and voltage) that could potentially be transmitted into the hazardous area from the safe-area side of the circuit. In the unlikely event of a fault or dangerous voltage surge in the safe area, the barrier prevents sufficient energy from reaching the hazardous area, thereby eliminating any risk of ignition in the explosive atmosphere.

Key Features & Advantages

1.Certified for Hazardous Areas: The S802 is designed and certified to relevant international standards (e.g., ATEX, IECEx) for installation in systems intended for use in explosive gas atmospheres (typically Zone 1 or Zone 2).

2.Maintains Communication Integrity: As a passive device, it does not require power and has minimal impact on the acoustic performance of the sound-powered telephone circuit. Voice signal transmission remains clear and reliable.

3.Enables System Compliance: It allows shipbuilders and system integrators to design compliant communication networks where standard sound-powered telephone stations in safe areas need to connect to certified explosion-proof stations (like the HSC-xxG/J-Ex series) in hazardous zones.

4.Robust & Reliable Design: Housed in a durable, corrosion-resistant enclosure suitable for marine environments, the S802 is built for long-term, maintenance-free service.

5.Simplified Installation: Designed for straightforward wiring and integration into existing or new sound-powered telephone cable runs at the hazardous area boundary.
