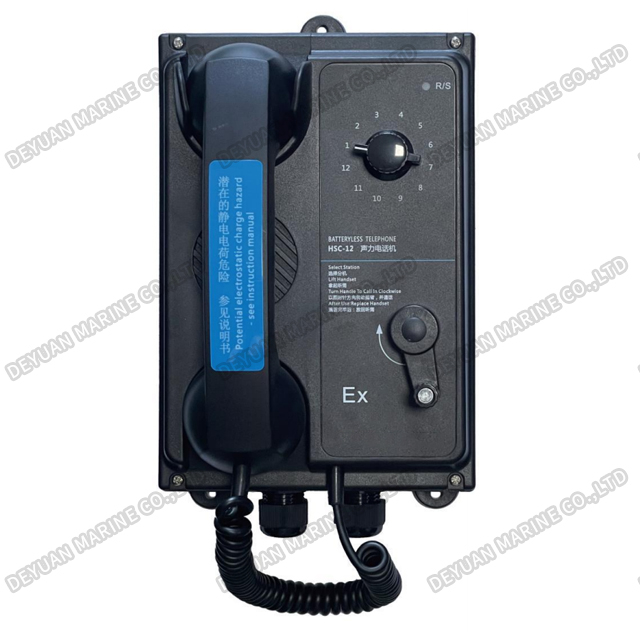

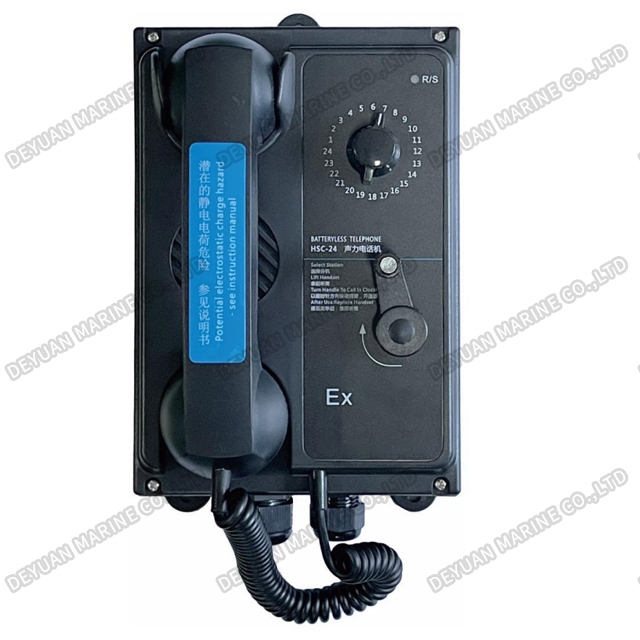

HSC-1G/12G/24G-Ex Explosion-proof Sound-powered Telephone
Product Introduction
The HSC-1G/12G/24G-Ex series represents the pinnacle of safe and reliable voice communication for hazardous marine and offshore environments. Engineered specifically for operation in potentially explosive atmospheres, these certified explosion-proof sound-powered telephones provide mission-critical, fail-safe communication without risking ignition. Available in 1-station (1G-Ex), 12-station (12G-Ex), and 24-station (24G-Ex) configurations, they are the definitive choice for safety and reliability in high-risk zones.
The HSC series marine acoustic telephone system is designed and manufactured in accordance with relevant CCS specifications. It provides internal communication and emergency contact services for various large, medium, and small vessels. It can be powered by both acoustic and electrical signals, and features high call volume and ease of use.
Drawing
Technical Data
| Temperature | -10℃~ +55℃ |
| Envurinment Noise | ≤85dB |
| With Noise-proof Headset | ≤110dB |
| Sound of Receiver | ≥85dB |
| Extension Gain | 20±3dB |
| Power for Extension | DC24V-25%/+ 30% 0.3A |
| Bell Contact | AC125V/1A DC30V/2A |
| With Features against vibration,incline,dampness,mildew and salt fog | |
Main Functions
1. Amplified Calling: When powered by DC24V, the HSC series voice-activated telephones can provide amplified calling with a volume increase of at least 20dB. In case of power failure, the telephone automatically switches to voice-activated calling.
2. Keypad Calling: The HSC series telephones are equipped with a call button. When powered by DC24V, pressing this button will ring the other telephone immediately, eliminating the need for a generator. It operates normally within a voltage range of 18-36V. A manual generator is required in case of power failure.
3. Noise Reduction Function: Cabin telephones can be equipped with noise-canceling headsets, enabling calls in noise levels up to 110dB.
4. Flashing Ringtone: The flashing ringtone is used in high-noise cabins such as aircraft cabins. All voice-activated telephones have a flashing ringtone terminal.
System Connection Diagram
Single-Way Batteryless Telephone System
Single Way Batteryless Telephone System Connection Diagram
Multi-Way Batteryless Telephone System
Multi-Way Battery-Less Telephones System Connection Diagram
Commanding Battery-Less Telephones System
Commanding Battery-Less Telephones System Connection Diagram
