Shoreguardian Boom

  • Deyuan Marine

Product Description

Shoreguardian Boom :

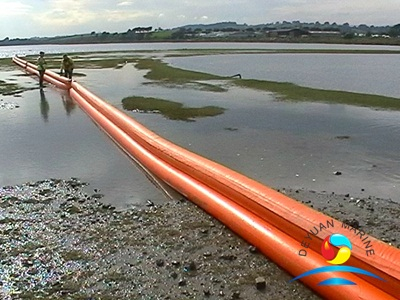

Shoreguardian boom is largely used on riversides or costal beach with tidal waves and a border between waters and land and can also be used on the land only.
Boom Features :
1. Collapsible for easy storage and economical transport.
2. Reinforced double layered base for added  resistance against abrasive or jagged surfaces.
3. Reflective strips on the splash flaps allow for good visibility.
4. ASTM connectors at both ends of boom.
5. Top inflatable chamber is equipped with one (1 PSI) relief valve and one Monsun air fill valve.
6. Each of the two bottom ballast chambers are equipped with one (2 PSI) relief valve and one Monsun water filling valve.
7. Carry/storage bag.
8. Low maintenance and easily cleaned.
9. Marine grade shipping/storage plywood box (Optional).
Technical data:
Type WAT800 WAT1000
Overall height 800mm 1000mm
Standard length per section 10-20m 10-20m
Freeboard 300mm 320mm
Draft 300mm 320mm
Total tensile  strength 50KN 55KN
Max.wave height to withstand 1m 1m
Max. wind speed to withstand 15m/s 15m/s
Max.current speed to with stand 1Kn 1Kn
Workstorage temperature -30~+60℃ -30~+60℃
Warer-charging pump Power 4KW
Flow 30m3/h
Inflating pump Power 4KW
Flow 210m3/h
More Shoreguardian Boom Can Be Offered,Pls Contact Us For More Details.
