Ship/Shore Power System Low Voltage Special Connectors

Ship/Shore Power System Low Voltage Special Connectors

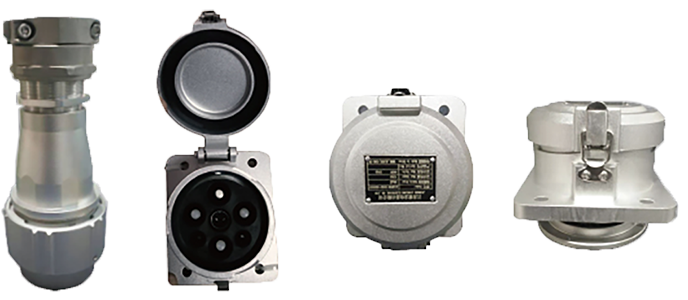

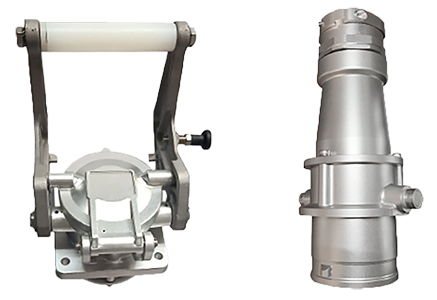

Plug and socket type: 3 power cores, 1 grounding core, 4 control cores (two of the 125A can be used as signal wires).

Performance and advantages: can be equipped with automatic trip device; Cast aluminum material, the appearance of anti-corrosion spraying protection level is not lower than IP66.

Safety requirements: mechanical plug-in, safe, electrical interlock; The interlocking device is prohibited from live operation;Electrical and versatility in accordance with IEC, GB requirements.

Certificate: 63/125/250/350A of low-voltage type commonly used in ship/shore has CCS classification society type approval certificate.

Model	Rated Current	Rated Voltage	Products
JL28	125A	AC440V
JL26	250A	AC690V
JL17	350A	AC690V,IEC standard
