Product Description

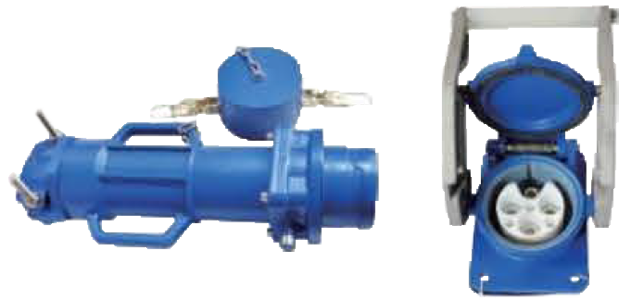

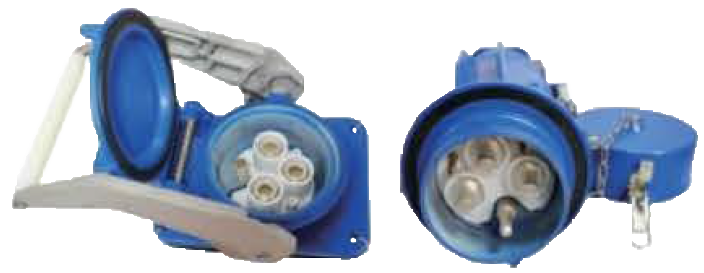

Ship/Shore Power System High Voltage Special Connectors

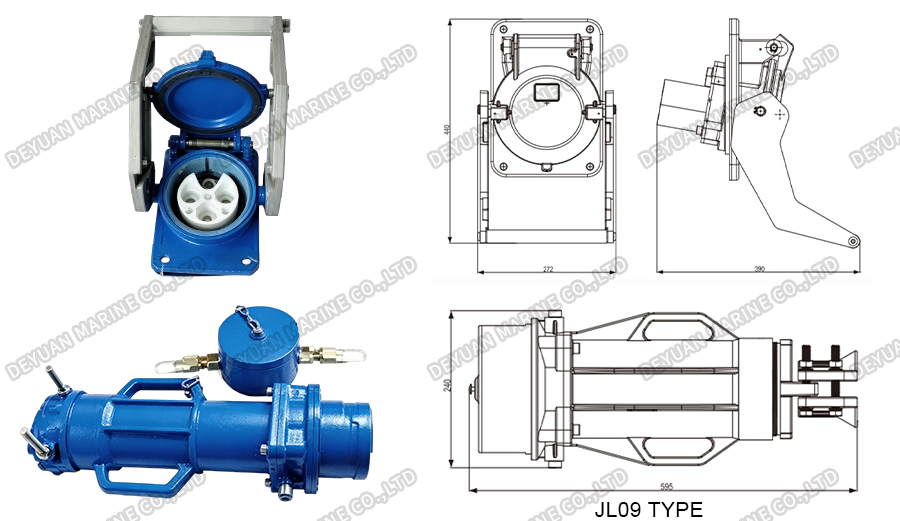

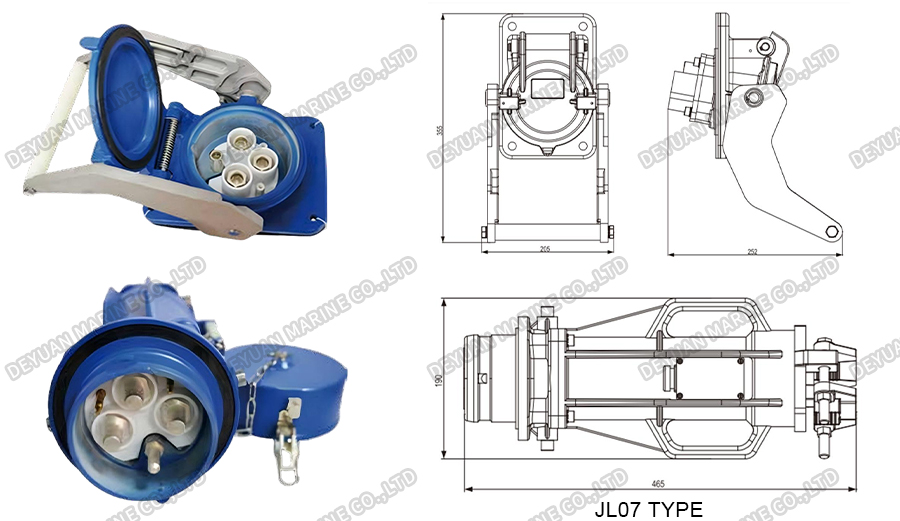

Plug and socket type: JL07 series less than or equal to 350 amps, 7200 volts (4 cores); JL09 series≥ 500 amps, 12000 volts (4 cells).
Performance and advantages: JL07 is commonly used in large bulk carriers and container ships; JL09 is commonly used in ultra- large container ships, luxury cruise ships, etc.
Certificate: in accordance with IEC8005-1, IEC 62613-2 and other international standards
| Model | Rated Current | Rated Voltage | Products |
| JL07 | 350A | AC7200V |  |
| JL09 | 500A | AC1200V |  |
