Ship Launching Airbags Vessel Landing Airbags Marine Pneumatic Rubber Airbags

Type: Ship Launching Airbag
Brand: Deyuan Marine
Diameter: 0.8 m, 1.0 m, 1.2 m, 1.5 m, 1.8 m, etc.
Length: To be specified by the user
Layers: 3 layers, 4 layers, 5 layers, 6 layers, etc.

Product Description

Ship Launching Airbags Vessel Landing Airbags Marine Pneumatic Rubber Airbags

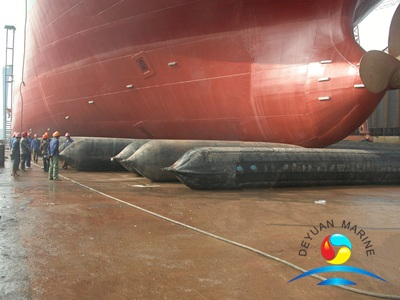

Inflatable airbags are also known as air balloon, inflatable bags, roller bags, air lifting bags, salvage bags,commonly used in ship launching / landing / slipping. The Ship Launching Airbag is made by rubber & multi layer of rubber-dipped tyre fabric, diameter range from 1.0m~2.5m, with 5~10 layers.


Features:
1. High pressure , explosion proof and overall winding type
2. Big carrying capacity
3. High capacity against compression and twisting
4. New design of anti-bursting construction at the end
5. Durable aging resistane and anti-wear characteristic

6. Higher flexibility and damping capacity


Marine Pneumatic Rubber Airbag consists of three parts:

1. Air bag body, cylindrical part of the air bag after being fully inflated with compressed air.
2. Air bag head, conical parts connecting the body and the mouths of the air bag.
3. Air bag mouth, metal valves mounted on both ends of the air bag for charging air or one end mounted a lug for air bag pulling.


Diameter(m)Effective Length(m)LayerPressure(MPa)
1.0105~60.07~0.10
1.0125~60.07~0.10
1.0155~60.07~0.10
1.2105~60.08~0.12
1.2125~60.08~0.12
1.2155~60.08~0.12
1.5125~80.08~0.16
1.5155~80.08~0.16
1.5184~80.08~0.16
1.5205~80.08~0.16
1.5245~80.08~0.16
1.8125~80.08~0.15
1.8155~80.08~0.15
1.8185~80.08~0.15
1.8205~80.08~0.15
1.8245~80.08~0.15
2.0186~100.08~0.18
2.0206~100.08~0.18
2.0246~100.08~0.18
2.5187~100.07~0.13
2.5207~100.07~0.13
2.5247~100.07~0.13
