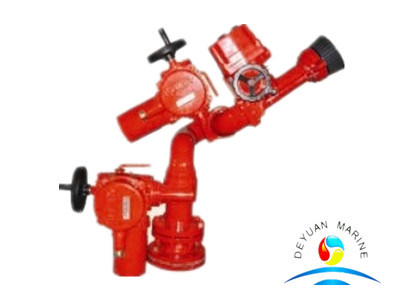

SS80EL Electric Fire Fighting Monitor
Effective capacity: 4000L/min (around 66.7L/s,240M3/H)
The max pressure: 16bar
Inlet: Flange DN80 PN16
Outlet: Screw thread
Optional inlet flange: DN100 PN16/ ANSI3''
Rotation range:
Horizontal: 340°
Vertical: +85°~ －75°
Weight: ~75Kg
Materials:
Body: Stainless Steel/Carbon Steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Carbon Steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
