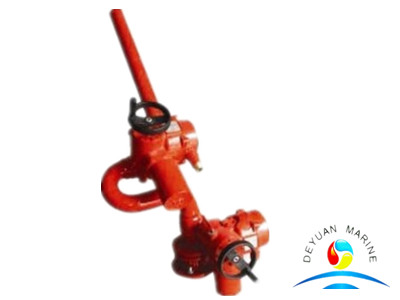

SS65EL Electric Fire Monitor
Effective capacity: 2400L/min (around 40L/s,150M3/H)
The max pressure: 16bar
Inlet: Flange DN65 PN16
Outlet: 2'' screw thread
Optional inlet flange: DN80 PN16 / ANSI2½''/ANSI3''
Rotation range:
Horizontal: 340°
Vertical: +90°~ －75°
Weight: ~60Kg
Materials:
Body: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
