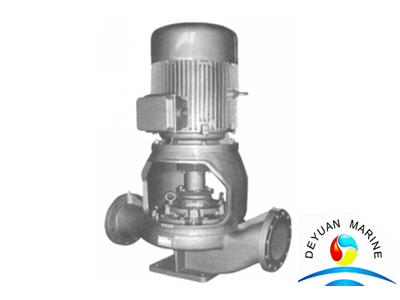

PVHB.CLHB Removable Vertical Pipeline Centrifugal Pump for Hot Water

MAIN PURPOSE

Model PVHB.CLHB vertical centrifugal pump is used for water supply for industries and the high buildings in a city, fire-fighting， pipeline boost, warming and air-conditioning hot-cold water cir collation, remote water transportation and boosted transportation for the technological circulation of production. Series marine pumps are used at cabin bottom to cool water and fight fire. It is able to carry sea water under 120℃ degrees. Fresh water and other none roding liquid.

STRUCTURE

A bold improvement on the design is carried out for the structure of model SLB removable vertical centrifugal curately matched with each other. The external structure of it is formed with motor, joint coupling and pump casing and the driving unit is formed with motor shaft, claw-like elastic clutch bearings inside of the bearing seat, pump shaft and impeller. To maintain it needs only to remove the driving unit under the claw-like elastic clutch, without need of removing motor, joint coupling and pump casing. The pump will not be affected with its performance and can be kept in a stable condition all the time in case of a long-way transportation and use under an awful environment.

STRUCTURE of PVHB.CLHB vertical centrifugal pump

No.	Name
1	Pump body
2	Drain Plug
3	Impeller
4	Mechanical seal
5	Air discharge valve
6	Bearing body
7	Bearing
8	Pump shaft
9	Bracket
10	Motor
11	Motor coupling
12	Intermediate coupling
13	Pump coupling
14	Oil cup
15	Bearing gland
16	Pump cover
17	Sealing gasket
18	Pipe plug

Disassembly Diagram

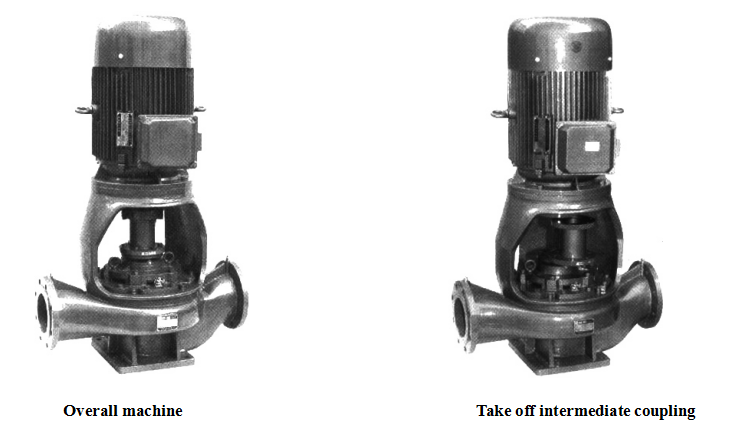

Take off intermediate coupling--PVHB.CLHB vertical centrifugal pump

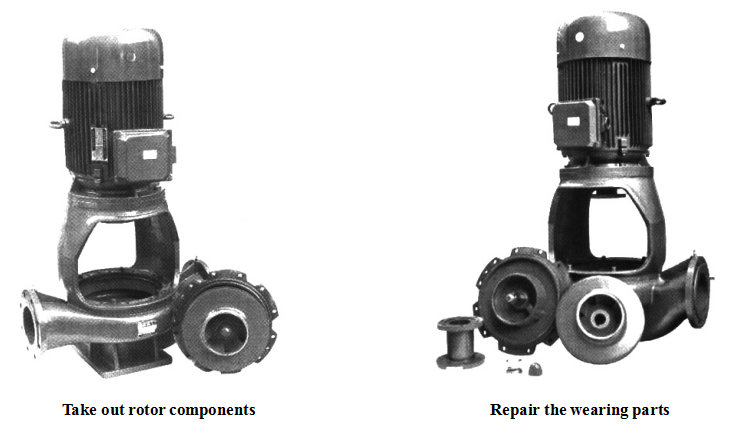

Repair the wearing parts--PVHB.CLHB vertical centrifugal pump

PERFORMANCE DATA


Type	Capacity	Head	Efficiency	Speed	Motor Power	(NPSH)r		Type	Capacity	Head	Efficiency	Speed	Motor Power	(NPSH)r
	m3/h	m	%	r/min	Kw	m			m3/h	m	%	r/min	Kw
40-12.5	2.2	12.8	31	1450	0.75	2.3		50-20(I)A	15.6	17.5	58	2900	2.2	2.5
	3.2	12.5							22.3	16	66
	4.2	12							29	13.6	65
40-20	2.2	20.5	27	1450	1.1	2.3		50-20(I)	7.5	20.5	45	1450	2.2	2.5
	3.2	20							12.5	20
	4.2	18.5							15	19.5
40-20A	2	18	27	1450	0.75	2.3		50-20(I)A	7	18	44	1450	1.5	2.5
	3	17.5							11.7	17.5
	3.9	16.3							14	17
40-20B	1.9	15.4	26	1450	0.55	2.3		50-20(I)B	6	13.5	43	1450	1.1	2.5
	2.8	15							10	13
	3.5	14							12	12.5
50-12.5	8.8	13.6	55	2900	1.1	2.3		50-32(I)	17.5	34.4	55	2900	4	2.5
	12.5	12.5	62						25	32	63
	16.3	11.3	60						32.5	27.5	60
50-12.5A	8	11	60	2900	0.75	2.3		50-32(I)A	16.4	30	54	2900	4	2.5
	11	10							23.4	28	62
	14.5	9							30.4	24	59
50-12.5	3.75	13	40	1450	0.75	2.5		50-32(I)B	15	26	61	2900	3	2.5
	6.3	12.5							21.6	24
	7.5	12							28	20.6
50-12.5A	3.5	11.4	39	1450	0.75	2.5		50-32(I)	7.5	32.4	36	1450	4	2.5
	5.8	11							12.5	32
	7	10							15	31.5
50-20	8.8	21.5	49	2900	1.5	2.3		50-32(I)A	7	28.3	36	1450	3	2.5
	12.5	20	58						11.7	28
	16.3	17.8	57						14	27.5
50-20A	8	17	57	2900	1.1	2.3		50-32(I)B	6	21.5	34	1450	3	2.5
	11	16							10	21
	14.5	14							12	20.5
50-20	3.75	20.5	32	1450	1.5	2.5		50-50(I)	17.5	52.7	49	2900	7.5	2.5
	6.3	20							25	50	58
	7.5	19.5							32.5	45.5	59
50-20A	3.5	17.4	32	1450	1.1	2.5		50-50(I)A	16.4	46.4	48	2900	7.5	2.5
	5.8	17							23.5	44	57
	7	16.5							30.5	40	58
50-32	8.8	33	45	2900	3	2.3		50-50(I)B	15.2	40.5	55	2900	5.5	2.5
	12.5	32	52						21.8	38
	16.3	30	51						28.3	34.5
50-32A	8.2	29	44	2900	2.2	2.3		50-50(I)	7.5	53	18	1450	7.5	2
	11.7	28	51						12.5	50	26
	15.2	26	50						15	46	27
50-32B	7.3	23	50	2900	1.5	2.3		50-50(I)A	6.8	46.5	17.5	1450	7.5	2
	10.4	22							11.4	44	25.5
	13.5	20.5							13.7	40	26.5
50-50	8.8	52	38	2900	5.5	2.3		50-50(I)B	6.2	41	17	1450	5.5	2
	12.5	50	46						10.4	39	25
	16.3	48	46						12.4	35.5	26
50-50A	8.3	45.8	37	2900	4	2.3		50-80(I)	17.5	82	39	2900	15	2.5
	11.7	44	45						25	80	50
	15.3	42	45						32.5	76.5	52
50-50B	7.5	40	44	2900	3	2.3		50-80(I)A	16.4	71.5	39	2900	11	2.5
	10.6	38							23.4	70	51
	13.8	35							30.5	67	52
50-80	8.8	82	29	2900	11	2.3		50-80(I)B	15	61	38	2900	11	2.5
	12.5	80	38						21.6	60	50
	16.3	77.5	40						28	58	54
50-80A	8.2	71.5	29	2900	7.5	2.3		50-125(I)	17.3	128	31	2900	30	2.5
	11.6	70	38						25	125	40
	15.2	68	41						32.5	122	44
50-80B	7.6	61.5	27.5	2900	7.5	2.3		50-125(I)A	16.6	115	30	2900	22	2.5
	10.8	60	37				23.7		113	40
	14	58	40				31		110	44
50-80C	7.1	53.2	27	2900	5.5	2.3	50-125(I)B	15.7	103	39	2900	18.5	2.5
	10	52	36					22.5	101
	13.1	50.4	39					29.2	98
50-12.5(I)	17.5	13.7	67	2900	1.5	2.5	50-125(I)C	14.4	86	38	2900	15	2.5
	25	12.5	69					20.6	85
	32.5	10.5	69					26.8	83
50-12.5(I)A	15.6	11	65	2900	1.1	2.5	65-12.5	17.5	13.7	67	2900	1.5	2.5
	22.3	10	67					25	12.5	69
	29	8.4	68					32.5	10.5	69
50-12.5(I)	7.5	13.2	55	1450	1.1	2.5	65-12.5A	15.6	11	65	2900	1.1	2.5
	12.5	12.5						22.3	10	67
	15	11.7						29	8.4	68
50-12.5(I)A	6.5	11	54	1450	0.75	2.5	65-12.5	7.5	13.2	55	1450	1.1	2.8
	11.2	10						12.5	12.5
	13	9						15	11.7
50-20(I)	17.5	21.5	60	2900	3	2.5	65-12.5A	6.5	11	54	1450	0.75	2.8
	25	20	68					11.2	10
	32.5	18	67					13	9

.

Type	Capacity	Head	Efficiency	Speed	Motor Power	(NPSH)r		Type	Capacity	Head	Efficiency	Speed	Motor Power	(NPSH)r
	m3/h	m	%	r/min	Kw	m			m3/h	m	%	r/min	Kw	m
300-65A	444	60	74	1450	160	5.5		350-50A	450	46.5	72	970	132	5
	668	55	80						750	44
	833	49	81						900	40
300-65B	409	49	73	1450	110	5.5		350-50B	418	40	75	970	110	6
	614	45	79						697	38	81
	767	35	80						836	34.5	79
300-65C	389	42	72	1450	90	5.5		350-50	1000	55	75	1450	250	6
	561	38	78						1200	50
	670	30	79						1450	43
300-40(I)	718	44.6	82	1450	160	5.5		350-50A	900	47	72	1450	200	5.5
	1080	40							1080	44
	1345	34.6							1300	39
300-32(I)	642	35.7	80	1450	162	5.5		350-50B	745	42	60	1450	160	5.5
	965	32							985	38.5	70
	1203	27.7							1182	34	68
300-80	540	85	78	1450	250	5.5		350-50C	678	37	63	1450	132	5.5
	720	80	80						900	34	67
	900	70	78						1080	29.5	65
300-80A	506	74.4	77	1450	200	5.5		350-65	610	71	75	1450	220	6
	675	70	79						850	65	81
	720	61.2	77						1020	58	79
300-80B	468	63.8	76	1450	160	5.5		350-65A	574	65	75	1450	200	6
	625	60	78						800	60	80
	667	52.5	76						960	53	79
300-80C	425	53.2	75	1450	110	5.5		350-65B	516	60	72	1450	160	5.5
	570	60	77						720	55	78
	605	43.8	75						864	45	75
350-12.5(I)	900	13.5	76	1450	55	6.5		400-20	820	23	72	1450	90	5
	1200	12.5	80						1080	20	78
	1400	10.5	76						1300	16	75
350-12.5(I)A	819	11.5	74	1450	45	6.5		400-32	820	36.5	71	1450	132	5
	1092	10.5	78						1080	32	76
	1310	9	75						1300	27	74
350-12.5	600	14	80	1450	37	4.5		400-12.5	650	15	80	970	55	5
	800	12.5	83						1080	12.5
	960	10.5	82						1300	11
350-20(I)	900	22	76	1450	90	6.5		400-12.5A	580	12	78	970	45	5
	1200	20	80						966	10
	1400	16	76						1160	8.5
350-20(I)A	819	19	73	1450	75	6.5		400-20	650	23.5	82	970	90	5
	1092	17	77						1080	20
	1310	14	73						1300	18
350-20	600	22.5	79	1450	75	4.5		400-20A	600	20	81	970	75	5
	800	20	82						996	17
	960	17.5	81						1200	15
350-32(I)	900	36	74	1450	160	6.5		400-20B	560	17.5	80	970	55	5
	1200	32	78						935	15
	1400	26	75						1120	13.2
350-32(I)A	819	31	72	1450	132	6.5		400-32	650	35	81	970	132	5
	1092	28	76						1080	32
	1310	23	73						1300	29
350-32(I)B	745	27	70	1450	110	6.5		400-32A	300	30	80	970	110	5
	994	25	74						996	27
	1192	20	71						1200	25
350-50	600	55	77	1450	160	4.5		400-32B	560	26	82	970	90	5
	800	50	83						935	24
	960	45.5	80						1120	21.5
350-50(I)	900	54	70	1450	250	6.5		500-20	1000	23	76	1450	110	6
	1200	50	74						1200	20	80
	1400	43	72						1450	16	75
350-50(I)A	819	47.5	68	1450	250	6.5		500-32	1000	34.5	76	1450	160	6
	1092	44	72						1200	32	78
	1310	38	70				1450		27	77
350-50(I)B	745	42	60	1450	200	6.5	500-12.5	750	14.5	80	970	75	5
	994	38.5	70					1200	12.5
	1192	34	68					1500	11
350-20	480	23	80	970	75	5	500-12.5A	670	11.5	80	970	55	5
	800	20						1073	10
	960	16						1340	8.8
350-20A	430	18.5	78	970	55	5	500-20	750	24	81	970	110	5
	715	16						1200	20
	860	13						1500	18
350-32	480	35	80	970	90	5	500-20A	690	20	80	970	90	5
	800	32						1106	17
	960	27						1380	15
350-32A	450	30.5	79	970	75	5	500-20B	648	17.5	79	970	75	5
	748	28						1040	15
	900	23.5						1296	13.5
350-32B	416	26	75	970	75	5	500-32	750	35	80	970	160	5
	692	24						1200	32
	832	20						1500	29
350-50	480	53	74	970	160	5	500-32B	648	26	78	970	110	5
	900	50						1040	24
	960	46						1296	22
