Product Description

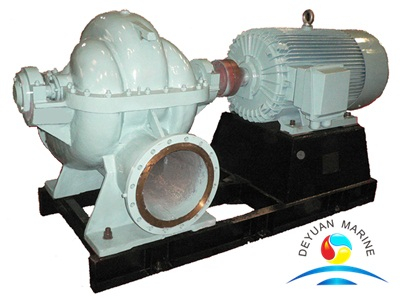

CWS Series Marine Double Suction Self Priming Horizontal Centrifugal Pump
Adopts domestic advanced hydraulic model optimization design and has a corrosive liquid is the current national standard to finalize the design product promotion
| Type | (50HZ,3phase,380v)main technical parameter | Power (kw) | ||||
| Capacity | Head | Speed | NPSHR | Shaft power | ||
| (m3/h) | (m) | (r/minZ) | (m) | (kw) | ||
| 150CWS-8.5 | 125 | 54 | 2950 | 25.2 | 37 | |
| 160 | 50 | 3.8 | 28.1 | |||
| 200 | 42 | 29.7 | ||||
| 150CWS-8.5A | 105 | 44 | 2950 | 17.5 | 30 | |
| 140 | 40 | 3.8 | 20.3 | |||
| 170 | 35 | 21.9 | ||||
| 150CWS-8.5B | 100 | 39 | 2950 | 16.3 | 22 | |
| 130 | 36 | 3.1 | 18.2 | |||
| 160 | 32 | 19.4 | ||||
| 150CWS-6 | 125 | 84 | 2950 | 39.7 | 55 | |
| 160 | 78 | 3.3 | 46.9 | |||
| 200 | 70 | 52.2 | ||||
| 150CWS-6A | 105 | 65 | 2950 | 27.3 | 45 | |
| 140 | 60 | 3.3 | 31.8 | |||
| 170 | 54 | 35.7 | ||||
| 200CWS-13 | 210 | 48 | 2950 | 33.9 | 45 | |
| 280 | 42 | 6.3 | 39.3 | |||
| 335 | 35 | 40.4 | ||||
| 200CWS-13A | 200 | 43 | 2950 | 30.8 | 37 | |
| 270 | 36 | 6 | 33.1 | |||
| 325 | 30 | 34.9 | ||||
| 200CWS-9 | 210 | 68 | 2950 | 50.2 | 75 | |
| 280 | 63 | 5.7 | 60.4 | |||
| 335 | 58 | 64.1 | ||||
| 200CWS-9A | 180 | 55 | 2950 | 36.4 | 55 | |
| 245 | 48 | 5.5 | 41 | |||
| 295 | 40 | 42.8 | ||||
| More types can be offered,pls contact us directly for more details. | ||||||
