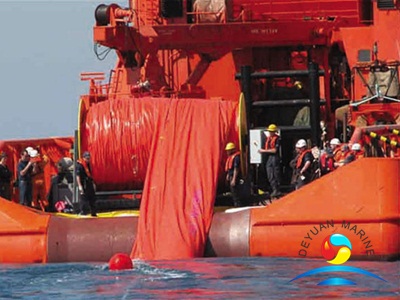

PVC Quick Laying Boom :
| Booms Technical Data |
| Type | WGV750 | WGV900 | WGV1200 |
| Overall height | 750mm | 900mm | 1200mm |
| Water height | 250mm | 300mm | 420mm |
| Underwater depth | 500mm | 600mm | 780mm |
| Max. current speed to with stand | 3Knot | 3Knot | 3Knot |
| Total tensile strength | 60KN | 80KN | 100KN |
| Standard length per section | 20M | 20M | 20M |
| Weight | 5.8Kg/m | 6.8Kg/m | 8.0Kg/m |
| Winder Technical Data |
| Type | WGV750 | WGV900 | WGV1200 |
| Dimensions | 3.4*2.4*2.6m | 3.9*2.4*2.6m | 4.6*2.4*2.6m |
| Reel roll measurement | Ø2.1*2.7m | Ø2.1*3.2m | Ø2.1*3.9m |
| Weight | 1500Kg/m | 1800Kg/m | 2200Kg/m |
| Max.torque | 1400Nmt | 1400Nmt | 1400Nmt |
| Store the number of boom | 200m | 200m | 200m |
| Power Station Technical Data |
| Dimensions | 1400*1000*1343mm |
| Weight | 800kg |
| Engine | Air-cooled two-cylinder diesel engine |
| Power | 18-21KW/3000r/min |
| Engine start-up mode | Electric and manual |
More pvc quick laying boom can be offered,pls contact us for more details.
