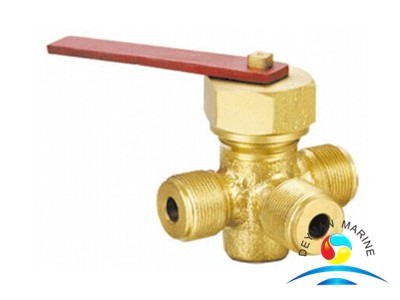

Marine Male Thread Bronze Packed Cocks

  • DEYUAN MARINE

Product Description

Marine Male Thread Bronze Packed Cocks :
We can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc
Packed Cocks standard:CB/T,GB/T,,JIS ,DIN ,API、ANSI,BS etc.
Packed Cocks  Technical Details:
Nominal pressure(Mpa) Nominal pressure(mm) Applicable medium
0.1 32 Sea water,fresh water,lubricanting oil,fuel oil
1.6 20.25
2.5 6,10,15
DN(mm) Structure dimension Thread joint handle Weight(kg)
L H1 H D D1 D2 l Lo Atype Type Ltype
6 70 20 60 M22*1.5 - - 12 100 0.42 0.48 0.49
10 78 27 72 M27*1.5 - - 15 110 0.69 0.71 0.72
15 92 37 92 M36*2 - - 16 115 1.07 1.24 1.26
20 98 40 99 M36*2 33 24 20 125 1.52 1.7 1.72
25 106 42 108 M42*2 39 29 20 140 1.9 2.22 2.24
32 126 49 120 M48*2 45 36 20 160 3.47 3.79 3.89
More Marine Male Thread Bronze Packed Cocks  can be offered,pls contact us for more details
