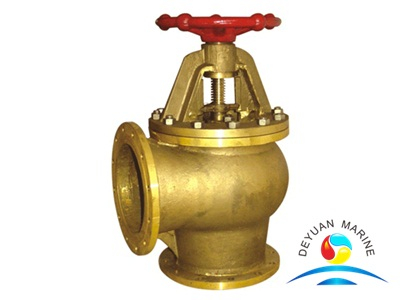

Marine Bronze Suction Sea Valve

  • DEYUAN MARINE

Product Description

Marine Bronze Suction Sea Valve :
We can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc
Suction Sea Valve  standard:CB/T,GB/T,,JIS ,DIN ,API、ANSI,BS etc.
Suction Sea Valve Technical Details:
Dn
(mm)
Structure dimension Flange bont Hand wheel Weight
L H≈ D D1 D2 b Do npcs Th Do (Kg)
80 125 360 170 138 118 14 15 8 M14 160 19
100 135 415 190 158 138 14 15 8 M14 160 23.6
125 160 470 215 183 164 14 15 10 M14 200 31.2
150 175 506 240 208 190 14 15 12 M14 225 49.8
200 220 595 295 264 247 15 15 12 M14 280 70
250 260 698 365 327 306 16 17 14 M16 360 111
300 300 780 430 386 360 19 22 14 M20 400 170.3
350 320 910 480 436 410 20 22 16 M20 450 229
400 380 960 530 486 460 21 22 16 M20 500 299
More Marine Bronze Suction Sea Valve  can be offered,pls contact us for more details
