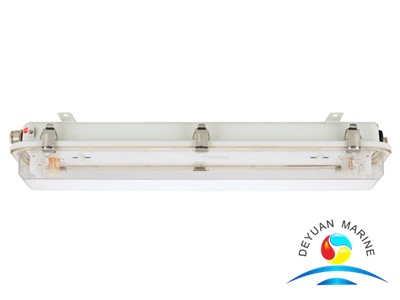

JCY28 Series Fluorescent Pendant Light
Application scope:
Applied to illumination of water stripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather deck etc. The environmental temperature for work is -20°C ~ 55°C.
Characteristic:
1.The shell adopts good quality steel plate tensioned, lampshade adopts injection of PC, and has the seal structure.
2.Plug-in type lamp holder, equipped wiring terminal inside, convenient to connect
3.The lamp equipped B15 lamp holder, used for 24V/15W emergency bulb the edge of lampshade marks the marking, remark clear that need the emergency device when order
4.Equipped compensating capacitance inside the lamp, good effect of start
Authentication and standards:
1.Conform to standard of marine electric signal light's technical condition GB/T 3028-1995
2.Approved by CCS (China Classification Society) and ZY of china fishery inspection
Specification: | Model | Power | Voltage | Power factor | Lamp holder | Cable outside diameter | Protection class | Weight |
| JCY28-1 | 1x20W | 110V/60HZ 220V/50HZ 220V/60HZ | 0.85 | G13 | 8月16日 | IP67 | 4.5kg |
| JCY28-2 | 2x20W |
| JCY28-2B | 2x20W |
