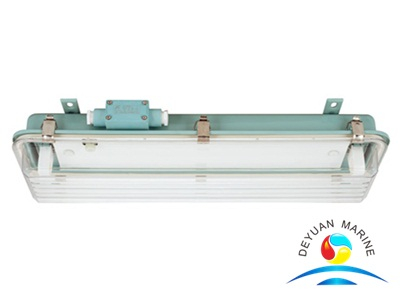

JCY26-2EF Series Marine Steel Fluorescent Pendant Light With Wire Guard

Origin: Made in China
Material: Steel
Protection class: IP56
E means: Emergency device
Power: 2*20W
Lamp holder: G13
Voltage: 220V/110V
Weight: 7.2KG
Delivery time: 3-15days
Brand: Deyuan Marine

Product Description

JCY26-2EF Series Marine Steel Fluorescent Pendant Light With Wire Guard


The scope of application:
1.Fit for illumination of water dripping,water spattering,water coagulating place in ships,such as oven cabin,tunnel,pipeline and weather deck etc.
2.The environmental temperature for work is -20℃~+55℃.
Products characteristic:
1.he shell adopts good quality steel plate tensioned,lampshade adopts injection of PC,and has the seal structure.
2.In order to prevent from electric shocking,equipped with a copper earthing rod with the mark in and out the lights.
3.Plug in type lamp holder,equipped wiring terminal inside,convenient to connect.
4.The lamp equipped B15 lamp holder,used for 24V/15W emergency bulb,the edge of lampshade marks the marking,remark clear that need the emergency device when order.
5.Equipped compensating capacitance inside the lamp,also has the good effect of start.
Adopt standard:
Conform to JISF8008-2002 standard and GRADE ENTRY NORMS FOR STEEL SHIPS.

Specification:
Type  Power  Voltage  Power factor Lamp holder  Cable outside diameter Protection class Weight  Compensating capacitance
JCY26-1 1*20W 110V/60Hz >0.85 G13 Φ12-Φ16 IP56 7.2Kg 4.75μF
JCY26-2 2*20W 220V/50Hz 7.5μF

JCY26-2E 2*20W 220V/60Hz
JCY26-2EF 24V/15W
