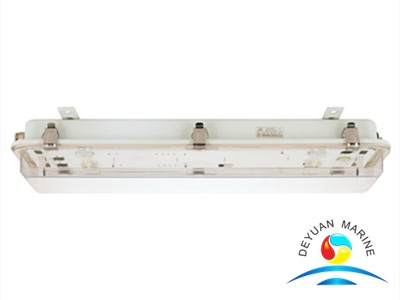

JCY27 Series Fluorescent Pendant Light
Application scope:
Applied to illumination of water stripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather deck etc. The environmental temperature for work is -20°C ~ 55°C.
Product characteristics:
1. The shell adopts good quality steel plate tensioned, lampshade adopts injection of PC, and has seal structure.
2. In order to prevent electric shock, lamp internal and external terminals equipped with tag.
3. Plug-in type lampholder, equipped wiring terminal inside, convenient to connect.
4. The lamp equipped B15d lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marks the marking, remark clearly that need the emergency device when order.
5. Equipped compensating capacitance inside the light, also has the good effect of start.
Certificates:
CCS (China Classification Society)
Standard:
Conform to IEC60092-306-2009 standard and GRADE ENTRY NORMS FOR STEEL SHIPS.
Specification: | Type | JCY27-1 | JCY27-2 | JCY27-1B | JCY27-2B |
| Voltage | 110V/60Hz, 220V/50Hz, 220V/60Hz |
| Power Factor | >0.85 |
| Lamp Holder | G13 |
| Cable Diameter | Dia8mm-16mm |
| Protection Class | IP67 |
| Power | 1x20W | 1x20W | 1X20W | 2X20W |
| Weight | 7.2kg | 7.2kg | 7.2kg | 7.2kg |
