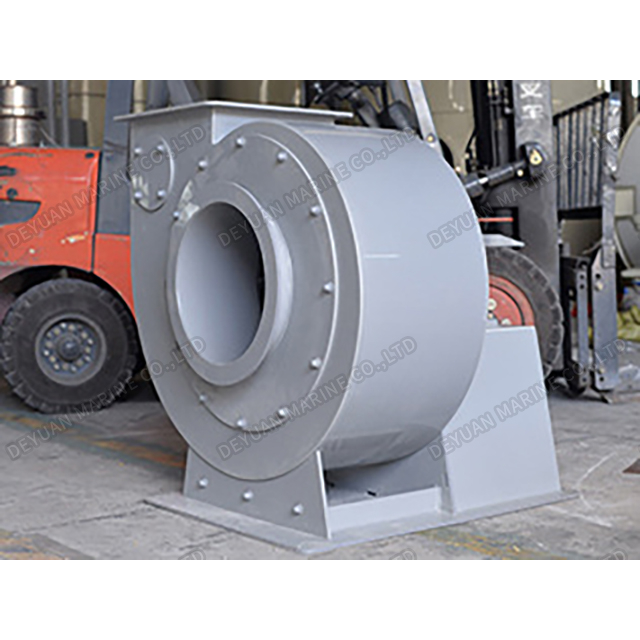

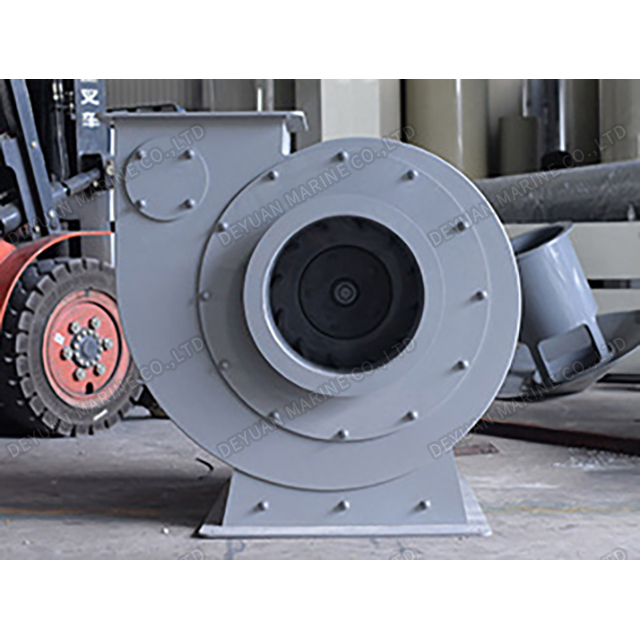

JCL(CLQ) Series Marine Centrifugal Fan

JCL (CLQ) series marine centrifugal fans (hereinafter referred to as "fans") can transport air, marine air containing salt mist and corrosive air containing oil mist, a small amount of acid vapor formed by natural evaporation of batteries, and are suitable for ventilators. It can be used for ventilation of various compartments on ships, boiler ventilation, and other appropriate occasions.

The ventilator is designed and manufactured in accordance with the national standard GB/T11865-2008 "Centrifugal Fan for Turnover" and the current (Ship Construction Code).

Features

Small size, light weight, low noise, good corrosion resistance, good air tightness, small starting torque, strong anti-sway, vibration and impact.

Working principle and Structure type

The ventilator is horizontal, the motor is directly connected to the structure, and the vertical structure can also be made.

The impeller is made of braided alloy material, and is corrected by static and dynamic balance.

The casing, air inlet, etc. are welded by ordinary steel materials, and support the airtight structure.

Model explanation

15--Impeller diameter is 15cm

Q--Forward

L--Centrifugal fan

C--Marine

Model	Flow rate m³/h	Total pressure pa	Static pressure pa	Speed r/min	Motor
					Hz Freq	Kw Power	Model
JCL-15	300	570	545	2920	50	0.75	Y801-2-H
	500	550	490
	800	540	390
	1000	450	250
	360	820	780	3500	60
	600	780	700
	960	770	560
	1200	640	360
JCL-16	700	640	550	2920	50	0.75	Y801-2-H
	800	600	490
	1200	590	340
	1300	530	230
	840	910	790	3500	60
	960	860	700
	1400	840	490
	1550	750	330
JCL-17	600	740	680	2920	50	0.75	Y801-2-H
	800	700	590
	1200	690	440
	1350	640	350
	350	330	310	1750	60	0.75	Y801-4-H
	480	250	210
	700	240	160
	800	230	130
	700	1020	930	3500		0.75	Y801-2-H
	960	1000	840
	1400	990	630
	1600	920	500
JCL-18	100	870	710	2920	50	0.75	Y801-2-H
	1200	810	640
	1500	810	540
	1600	750	470
	600	310	250	1750	60	0.55	Y801-4-H
	700	290	230
	800	290	220
	900	290	200
	1200	1116	1010	3500		1.1	Y802-2-H
	1400	1100	910
	1800	1100	780
	1900	1080	670
JCL-19	50	230	200	1460	50	0.55	Y801-4-H
	700	225	190
	800	225	180
	1000	220	150
	1300	920	810	2920		1.1	Y802-2-H
	1500	900	940
	2000	880	590
	2200	750	450
	800	330	290	1750	60	0.55	Y801-4-H
	900	320	260
	1200	315	210
	1300	270	160
	1600	1320	1160	3500		1.5	Y90S-2-H
	1800	1300	1060
	2400	1270	840
	2600	1080	650
JCL-20	7500	260	220	1460	50	0.55	Y801-4-H
	800	250	200
	900	250	190
	1000	250	180
	1500	1050	880	2920		1.1	Y802-2-H
	1600	1040	780
	1800	1035	750
	2000	1030	740
	900	380	320	1750	60	0.55	Y801-4-H
	950	375	280
	1100	370	270
	1200	370	260
	1800	1510	1270	3500		2.2	Y90L-2-H
	1900	1500	1130
	2100	1490	1080
	2400	1480	1060
JCL-21	900	300	260	1460	50	0.55	Y801-4-H
	1000	290	230
	1200	280	200
	1400	250	150
	1800	1200	1060	2920		1.5	Y90S-2-H
	2000	1180	930
	2500	1170	780
	2800	990	600
	900	432	374	1750	60	0.55	Y801-4-H
	1000	417	331
	1250	400	288
	1400	360	216
	2160	1728	1520	3500		3	Y100L-2-H
	2400	1690	1340
	3000	1680	1130
	3360	1430	860
JCL-22	1100	340	290	1460	50	0.55	Y801-4-H
	1250	320	250
	1380	315	230
	1500	310	210
	2200	1350	1150	2920		2.2	Y90L-2-H
	2500	1280	980
	2800	1260	910
	3000	1260	830
	1300	480	410	1750	60	0.75	Y802-4-H
	1500	160	350
	1600	450	330
	1800	440	290
	2600	1920	1640	3500		4	Y112M-2-H
	3000	1840	1420
	3300	1800	1320
	3600	1760	1200
JCL-23	2250	1335	1200	2920	50	2.2	Y90L-2-H
	2500	1400	1180
	3000	1410	1080
	3300	1200	790
	1350	480	430	1750	60	0.75	Y802-4-H
	1500	500	420
	1800	510	390
	1950	430	280
	2700	1920	1730	3500		4	Y112M-2-H
	3000	2010	1690
	3600	2030	1550
	3900	1720	1130
JCL-24	1350	480	430	1460	50	0.55	Y801-4-H
	1500	410	340
	2000	360	250
	2200	340	180
	2700	1660	1400	2920		3	Y100L-2-H
	3000	1640	1370
	4000	1560	1080
	4400	1360	710
	1600	600	500	1750	60	1.1	Y90S-2-H
	1800	590	490
	2400	570	390
	2600	490	250
	3200	2390	2010	3500		5.5	Y132S1-2-H
	3600	2370	1970
	4800	2090	1410
	5200	1950	1020
JCL-25	1800	440	390	1460	50	1.1	Y90S-4-H
	2000	430	340
	2500	430	290
	2800	370	220
	3600	1950	1600	2920		4	Y112M-2-H
	4000	1910	1570
	5000	1730	1180
	5600	1470	880
	2150	730	560	1750	60	1.1	Y90S-4-H
	2400	670	540
	3000	640	440
	3300	530	320
	4300	2530	2230	3500		7.5	Y132S2-2-H
	4800	2480	1970
	6000	2480	1690
	6700	2110	1260
JCL-27	2300	520	440	1460	50	1.1	Y90S-4-H
	2500	510	390
	3000	510	340
	3300	430	260
	1800	330	280	1160	60	0.75	Y90S-6-H
	2000	320	250
	2400	320	220
	2600	270	160
	2750	750	640	1750		1.5	Y90L-4-H
	3000	730	560
	3600	730	490
	3900	620	370
JCL-29	2200	760	570	1460	50	1.1	Y90S-4-H
	2500	630	540
	3000	570	440
	3300	540	390
	1700	480	360	1160	60	0.75	Y90S-6-H
	2000	400	340
	2400	370	290
	2600	340	240
	2600	1080	810	1750		1.5	Y90L-4-H
	3000	900	770
	3600	820	630
	3900	770	550
JCL-30	2700	660	560	1460	50	1.5	Y90L-4-H
	3000	650	540
	4000	640	440
	4400	540	330
	1800	420	350	1160	60	0.75	Y90S-6-H
	2000	410	340
	2400	400	280
	2600	340	210
	3200	950	800	1750		2.2	Y112M-2-H
	3600	930	770
	4800	920	630
	5250	780	470
JCL-32	3600	760	640	1460	50	2.2	Y100L1-4-H
	4000	750	590
	5000	740	490
	5500	630	380
	2850	480	410	1160	60	1.1	Y90L-6-H
	3200	470	370
	4000	460	310
	4300	390	240
	4300	1090	930	1750		4	Y112M-4-H
	4800	1070	850
	6000	1060	800
	6600	900	540
JCL-33	4000	820	690	1460	50	2.2	Y100L1-4-H
	5000	790	590
	6000	680	360
	2800	570	490	1160	60	1.1	Y90L-6-H
	3200	520	430
	4000	500	370
	4750	430	230
	4800	1180	980	1750		4	Y112M-4-H
	6000	1140	830
	7200	980	520
JCL-34	4500	880	740	1460	50	3	Y100L1-4-H
	5000	860	690
	6000	840	590
	6500	720	43
	3500	550	470	1160	60	1.5	Y90L-6-H
	4000	540	430
	4750	530	370
	5150	450	270
	5400	1260	1070	1750		4	Y112M-4-H
	6000	1240	980
	7200	1200	850
	7800	1030	620
JCL-36	4500	980	870	1460	50	4	Y112M-4-H
	5000	970	830
	6000	930	740
	7200	870	590
	3550	620	550	1160	60	1.5	Y100L-6-H
	4000	610	530
	4750	590	460
	5700	550	370
	5400	1410	1250	1750		5.5	Y132S-4-H
	6000	1400	1200
	7200	1340	1060
	8600	1250	850
JCL-37	5400	1030	890	1460	50	4	Y112M-4-H
	6000	1010	830
	7200	990	740
	7850	840	510
	4300	650	560	1160	60	2.2	Y112M-6-H
	4750	640	530
	5700	630	460
	6200	530	320
	6500	1480	1270	1750		5.5	Y132S-4-H
	7200	1450	1200
	8600	1420	1060
	9400	1210	730
JCL-39	4300	600	510	970	50	2.2	Y112M-6-H
	4800	520	430
	6000	480	350
	6600	410	250
	6500	1350	1150	1460		5.5	Y132S-4-H
	7200	1190	980
	9000	1090	780
	10000	930	560
	5100	850	730	1160	60	2.2.	Y112M-6-H
	5700	780	620
	7200	690	500
	7900	580	350
	7800	1930	1650	1750		7.5	Y132M-4-H
	8600	1700	1400
	10500	1560	1120
	12000	790	7320
JCL-40	7000	1230	1110	1460	50	5.5	Y132S-4-H
	7500	1220	1080
	9000	1110	980
	10000	940	700
	8500	1760	1520	1750	60	1.1	Y160M-4-H
	9100	1730	1450
	10800	1600	1160
	12000	1350	820
JCL-42	5500	600	520	970	50	2.2.	Y112M-6-H
	6000	590	490
	7200	540	390
	8000	460	280
	8250	1350	1180	1460		7.5	Y132M-4-H
	9000	1300	1080
	10500	1290	980
	12000	1280	880
	6600	850	750	1160	60	3	Y132S-6-H
	7200	840	700
	8600	770	560
	9600	660	400
	9900	1930	1670	1750		11	Y160M-4-H
	10500	1910	1600
	12500	1750	1280
	14000	1490	900
JCL-44	6500	645	510	970	50	3	Y132S-6-H
	7200	640	490
	9000	600	390
	10000	510	300
	9800	1460	1160	1460		11	Y160M-4-H
	10800	1440	1110
	13500	1360	890
	15000	1150	690
	7800	920	740	1160	60	4	Y132M-6-H
	8600	910	700
	10500	860	560
	12000	730	440
	11500	2080	1670	1750		15	Y160L-4-H
	13000	2060	1590
	16000	1940	1270
	18000	1650	990
JCL-46	7000	710	600	970	50	4	Y132M1-6-H
	8000	710	560
	10000	660	430
	11000	560	340
	10500	1620	1350	1460		11	Y160M-4-H
	12000	1610	1270
	15000	1599	980
	16500	1280	770
	8400	1020	860	1160	60	5.5	Y132M2-6-H
	9500	1020	810
	12000	950	620
	13000	810	490
	12500	2320	1940	1750		18.5	Y180M-4-H
	14000	2310	1830
	18000	2160	1410
	19000	1830	1100
JCL-48	8000	770	630	970	50	4	Y132M1-6-H
	9000	740	590
	10000	750	560
	12000	660	390
	12000	1740	1470	1460		15	Y160L-4-H
	13500	1720	1350
	15000	1700	1270
	16500	1260	820
	9600	1100	900	1160	60	5.5	Y132M2-6-H
	10500	1090	850
	12000	1080	810
	14000	940	560
	14000	2500	2110	1750		22	Y180L-4-H
	16000	2470	1940
	18000	2440	1830
	20000	1800	1170
JCL-50	9000	770	650	970	50	5.5	Y132M2-6-H
	10000	810	640
	2000	800	560
	13000	630	410
	1500	1840	1480	1460		15	Y160L-4-H
	15000	1830	1470
	18000	1650	1270
	20000	1440	930
	10500	1100	940	1160	60	7.5	Y160M-6-H
	12000	1170	930
	14000	1140	810
	15000	910	590
	16000	2500	2120	1750		22	Y180L-4-H
	18000	2640	2110
	21500	2580	1830
	24000	2060	1340
JCL-52	11000	950	790	970	50	7.5	Y160M-6-H
	12000	930	740
	15000	850	540
	16500	730	400
	9500	760	430	870	60	5.5	Y160M2-8-H
	10500	750	590
	13500	690	430
	15000	580	320
	13000	1360	1130	1160		11	Y160L-6-H
	14000	1330	1050
	18000	1200	780
	20000	1040	570
JCL-54	13000	970	770	970	50	7.5	Y160M-6-H
	14000	960	730
	15000	940	690
	16000	850	510
	11500	780	620	870	60	7.5	Y160L-8-H
	12000	770	690
	13500	760	550
	14000	680	410
	15000	1390	1090	1160		11	Y160L-6-H
	16500	1370	1040
	18000	1350	980
	19000	1210	730
JCL-56	13500	1070	900	970	50	11	Y160L-6-H
	15000	1060	830
	18000	1010	690
	20000	860	520
	12000	860	720	870	60	7.5	Y160L-8-H
	13500	850	670
	16000	810	550
	18000	810	490
	16000	1530	1290	1160		15	Y180L-6-H
	18000	1500	1180
	21500	1440	980
	24000	1230	740
JCL-58	16000	1200	1020	970	50	15	Y180L-6-H
	17000	1180	930
	18000	1160	880
	19000	980	640
	14000	680	570	870	60	11	Y180L-8-H
	15000	660	520
	16000	650	550
	16500	550	360
	19000	1200	1020	1160		18.5	Y200L1-6-H
