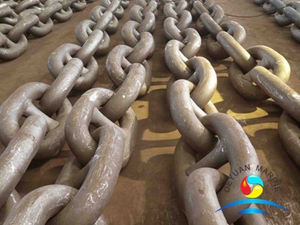

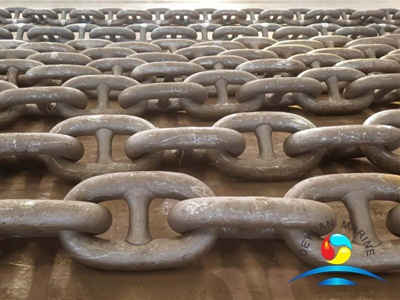

High Quality Grade U1 Stud Link Flash Welding Marine Anchor Chain

Marine Stud Link Anchor Chain we still call Stud Link Anchor Chain. The CCS Certificate Stud Link Anchor Chain Diameter is 12-76mmThe Grade Level of high quality stud link marine anchor chain are approved U1,U2,U3 after good manufacturing and testing.

Flash Welding Marine Anchor Chain function is mooring the boat when we are in the sea or wharf .If the grade U1 stud link marine anchor chain is not enough long .It can not play the role when we use them .So it is really important to choose the right Grade U1 Stud Link Flash Welding Anchor Chain.

Deyuan Marine High Quality Flash Welding Anchor Chain with below excellent feature :

• Stud link chain is the universally accepted ships anchor chain.

•The link dimensions are universal thus always ensuring compatibility.

•Commonly used also as ground chain in mooring applications.

•Stocked by ACM in galvanised and blacked, in sizes from 12mm to 76mm or others, grades 2 and 3,CCS/ABS/DNV/LR/BV/GL certificates.

•Other sizes available on request.

More grade U1 U2 U3 marine stud link anchor chain can be offered ,please contact us for more details.

Grade 3 Stud Link Anchor Chain
Chain Dia.	Breaking Load	Proof Load	Theoretical Weight
(mm)	(kN)	(kN)	(kg/m)
11	102	72	2.65
12.5	132	92	3.42
14	165	116	4.29
16	216	150	5.61
17.5	256	179	6.71
19	301	211	7.91
20.5	349	244	9.2
22	401	280	10.6
24	476	332	12.61
26	556	389	14.8
28	642	449	17.17
30	735	514	19.71
32	833	583	22.43
34	937	655	25.32
36	1050	732	28.38
38	1160	812	31.62
40	1280	895	35.04
42	1400	981	38.63
44	1540	1080	42.4
46	1680	1170	46.34
48	1810	1270	50.46
50	1960	1370	54.75
52	2110	1480	59.22
54	2270	1590	63.86
56	2430	1710	68.68
58	2600	1810	73.67
60	2770	1940	78.84
62	2940	2060	84.18
64	3130	2190	89.7
66	3300	2310	95.4
68	3500	2450	101.3
70	3690	2580	107.3
73	3990	2790	116.71
76	4300	3010	126.5
78	4500	3160	133.2
81	4820	3380	143.69
84	5160	3610	154.53
87	5500	3850	165.76
90	5840	4090	177.39
92	6080	4260	185.36
95	6440	4510	197.56
97	6690	4680	206.06
100	7060	4940	219
102	7320	5120	227.85
105	7700	5390	241.45
107	7960	5570	250.73
111	8480	5940	269.83
114	8890	6230	284.61
117	9300	6510	299.79
120	9720	6810	315.86
122	9990	7000	325.96
124	10280	7200	336.73
127	10710	7490	353.23
130	11140	7800	370.11
132	11420	8000	381.59
137	12160	8510	411.04
142	12910	9030	441.59
147	13660	9560	473.59
152	14430	10100	505.98
157	15200	10640	539.81
162	15980	11180	574.74
