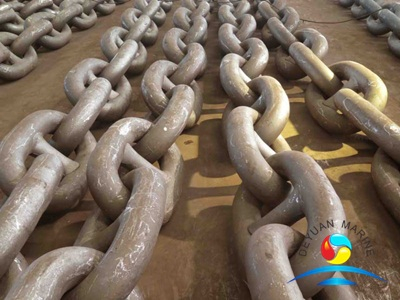

HDG Stud Link Anchor Chain ISO1704 Standard High Strength Anchor Chain with Certificate

Type: Stud Link Anchor Chain
Brand: Deyuan Marine
Dia.: 8-162mm
Materials: U1, U2, U3,
Surface: Polished, Black Painted, Hot Dip Galvanized
Marine Parts: Marine Hardwares
Certificate: CCS, ABS, BV, NK, KR, GL, LR, DNV, RINA, RMRS.

Product Description

HDG Stud Link Anchor Chain ISO1704 Standard High Strength Anchor Chain with Certificate


Powerful Machinery
Key Features
Grade: U2 and U3
Size: dia. 12.5mm - 162mm
Accessories: All kinds of shackles, swivels & Anchors
Certificate: ABS, CCS, NK, BV, KR, DNV, LR, GL, RINA, RS
Surface: Black Painted, Hot Dip Galvanized, Self Colored, etc
Introduction
Anchor chain is used for anchor chains on larger vessels.
Such as super yachts, fishing vessels, merchant ships, oil rigs etc.
A full range of auxiliary fittings such as kenter joining shackles, swivels and links are available with full test certification available by request.
Moreover, It prevents the chain from knotting up when twisted, thus avoiding problems when chain is retrieved with a windlass.


Produce Process: Drawings → mould making → pre-forging → rough machining or finish machining → surface treatment → product checking and quality control → packing → delivery.


Technical Parameters

Chain diameter
(mm)
Breaking Load (KN) Proof load(KN) Weight
(kg/m)
AM1 AM2 AM3 AM1 AM2 AM3
11 52 72 102 36 52 72 2.65
12.5 66 92 132 46 66 92 3.42
14 82 116 165 58 82 116 4.29
16 107 150 216 76 107 150 5.61
17.5 127 179 256 89 127 179 6.71
19 150 211 301 105 150 211 7.91
20.5 175 244 349 123 175 244 9.2
22 200 280 401 140 200 280 10.6
24 237 332 476 167 237 332 12.61
26 278 389 556 194 278 389 14.8
28 321 449 642 225 321 449 17.17
30 368 514 735 291 368 514 19.71
32 417 583 833 328 417 583 22.43
34 468 655 937 366 468 655 25.32
36 523 732 1050 406 523 732 28.38
38 581 812 1160 448 581 812 31.62
40 640 895 1280 492 640 895 35.04
42 703 981 1400 538 703 981 38.63
44 769 1080 1540 585 769 1080 42.4
46 837 1170 1680 635 837 1170 46.34
48 908 1270 1810 686 908 1270 50.46
50 981 1370 1960 739 981 1370 54.75
52 1060 1480 2110 794 1060 1480 59.22
54 1140 1590 2270 851 1140 1590 63.86
56 1220 1710 2430 909 1220 1710 68.68
58 1290 1810 2600 969 1290 1810 73.67
...... ...... ...... ...... ...... ...... ...... ......
...... ...... ...... ...... ...... ...... ...... ......
162 7990 11180 15980 5590 7990 11180 574.74

More stud link anchor chain can be offered,pls contact us for more details.
