Grade 3 Marine Studless Open Link Anchor Chain For Ship

Brand:Deyuan Marine
Grade:U1,U2,U3
Length: 27.5M anchor chain
Material:Good Steel
Chain fittings: Kenter shackle ,anchor shackle etc.
Payment term:T/T ,L/C,Paypal ,Western Union etc
Delivery Time:15 days
Certificate: ABS, LR, DNV, GL, BV, NK, KR, CCS
Availability:

Product Description

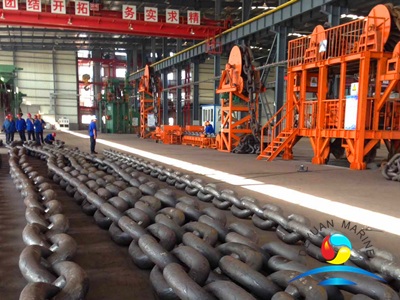

Grade 3 Marine Studless Open Link Anchor Chain For Ship


Anchor cables, chain cables and marine chain are at the core of Deyuan Marine and we offer the full range of marine anchor chain sizes from 5.5mm through to 184mm. Can be supplied in various grades U2, U3 and Grades 30, Grade 40 Grades 50 and Grades 80 strength.We also have a comprehensive range of Blake slips and chain stoppers and other chain related deck and ship's equipment.Our marine chain cable is ISO standard or complies with Classification society certified Shipping Anchor and Chain Cables and can be supplied, as can all chain fittings, with test certification to all the relevant class societies. Our all Studless Link Chain are approved by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA etc ,of which the quality are guaranteed by Quality System of ISO9001-2015.


All marine chain cable comes in length of 15 fathoms (27.5 meters or 90ft) but can be cut to size as required. Chain cable can be supplied self colour, black bitumen, zinc electro plated or galvanized (BS EN ISO 1461)All relevant links, swivels and shackles, such as the commonly used kenter shackle, can also be supplied allowing the chain to be joined together and to the ships anchor etc.


Studless Link Anchor Chain is often used for offshore applications ,when using Marine Studless Link Chain there is almost no need to change the chain, because of no up and down use.Chain is used for various ships including: LNG-ships,LPG-ships, tankers, passenger boats, container ships, cargo ships, ships for transportation of vehicles, ferryboats, and so on.Marine Link Chain is also used for mooring purposes on semi-submersible oil rigs and mooring buoys.Chain is accredited to the quality assurance system as per ISO 9001 and API Q1, as well as the environmental management system as per ISO 14001, and is authorized worldwide by international organizations and classification societies.



Deyuan Marine consists of skilled technical personnel, dedicated salesperson, as well as a highly experienced management. Together we are united in our mission to ensure our clients experience only the best of quality products and after sale services.


Grade 3 Marine Studless Link Anchor Chain Data Sheet :

D(φ) Chain Link Size U3 Open Link Chain Approx. Weight
Diameter L (Outside Length) B (Outside Width) Proof Load Breaking Load 27.5M
Inch MM MM MM KN KN KG
1/2 12.5 75 45 56.4 112.8 85.41
9/16 14 84 50.4 70.76 141.51 106.55
5/8 16 96 57.6 92.42 184.83 139.43
11/16 17.5 105 63 110.55 221.1 178.35
3/4 19 114 68.4 130.32 260.64 217.68
13/16 20.5 123 73.8 151.7 303.42 229.14
7/8 22 132 79.2 174.4 349.4 264.49
15/16 24 144 86.4 207.9 415.8 341.82
1-1/16 26 156 93.6 244 488 369.94
1-1/8 28 168 100.8 283 566 427.04
1-3/16 30 180 108 324.9 649.8 490.98
1-1/4 32 192 115.2 369.6 739.3 559.65
1-5/16 34 204 122.4 417.3 834.6 671.52
1-7/16 36 216 129.6 467.8 935.7 707.85
1-1/2 38 228 136.8 521.3 1042.5 788.98
1-9/16 40 240 144 577.6 1155.2 869.36
1-5/8 42 252 151.2 636.8 1273.6 959.3
1-3/4 44 264 158.4 698.9 1398 1111.25
1-13/16 46 276 165.6 763.9 1527.8 1152.07
1-7/8 48 288 172.8 831.7 1663.5 1256.26
2 50 300 180 902.5 1805 1360.41
2-1/16 52 312 187.2 976.14 1952.28 1485.61
2-1/8 54 324 194.4 1052.68 2105.36 1648.08
2-3/16 56 336 201.6 1132.1 2264.2 1715.97
2-5/16 58 348 208.8 1214.4 2428.8 1844.5
2-3/8 60 360 216 1299.6 2599.2 1973.29
2-7/16 62 372 223.2 1387.68 2775.36 2101.56
2-1/2 64 384 230.4 1478.66 2957.32 2298.47
2-9/16 66 396 237.6 1572.52 3145.04 2398.1
2-11/16 68 408 244.8 1669.26 3338.52 2522.88
2-3/4 70 420 252 1768.9 3537.8 2697.65


More marine studless open link chain can be offered,pls contact us for more details.
