Product Description

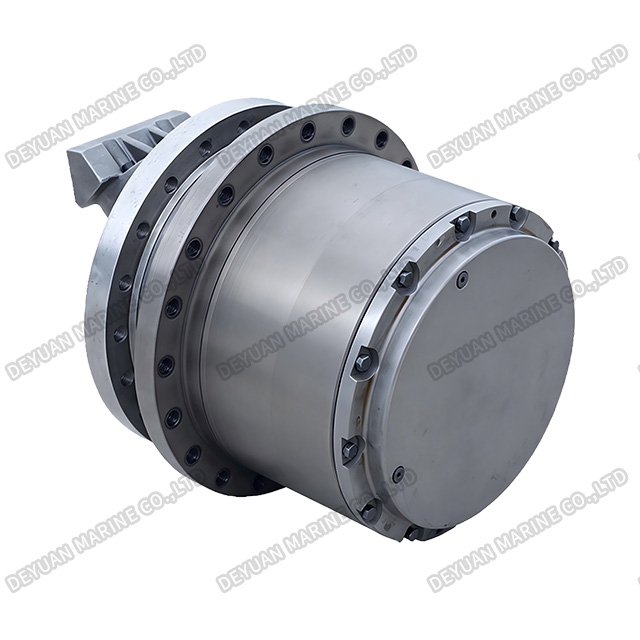

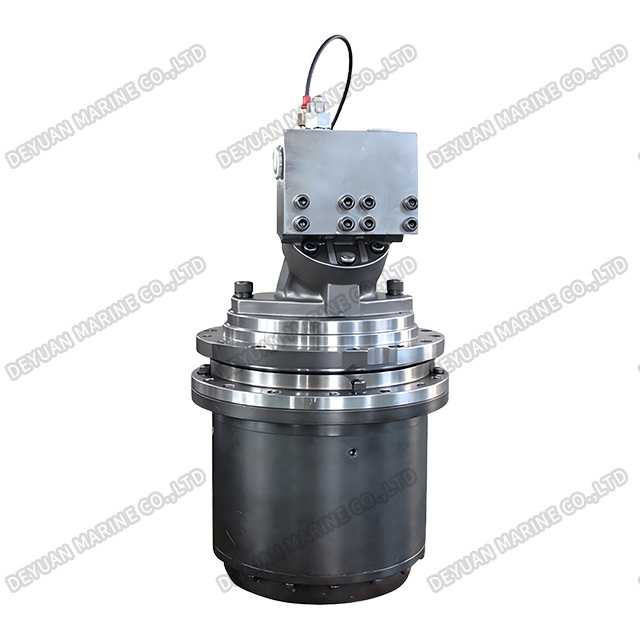

GFT High Speed Reducer
Product Introduction:
The GFT Series Compact High-Speed Rotating Housing Reducer is an ideal transmission component for marine machinery. Its exceptionally compact structure makes it perfectly suited for installations in extremely confined and harsh environments on vessels. Utilizing advanced design technologies and precision machining, this reducer guarantees high load-bearing capacity, exceptional reliability, and smooth operation in demanding marine conditions.
Key Features & Customization：
1.Hydraulic Compatibility: Designed to connect seamlessly with Rexroth quantitative or variable hydraulic motors, as well as other compatible hydraulic motors.
2.Integrated Braking System: The input end can be equipped with a spring-applied, hydraulically released multi-disc parking brake. Its static braking torque matches the hydraulic motor's input torque (typically greater than 1.5 times) to ensure safety.
3.Emergency Disengagement: For specific requirements, a mechanical disengaging clutch can be installed. This allows the vessel to be towed by other equipment in emergencies, preventing damage to hydraulic components.
4.Interchangeability: While designed to meet Rexroth series standards, we also provide custom alternatives equivalent to Brevini (Italy), Teijin (Japan), Nachi, KYB, Fairfield, and Sauer.
5.Innovative Support: We offer professional consulting and tailored selection services to ensure you find the optimal transmission solution for your specific marine engineering needs.

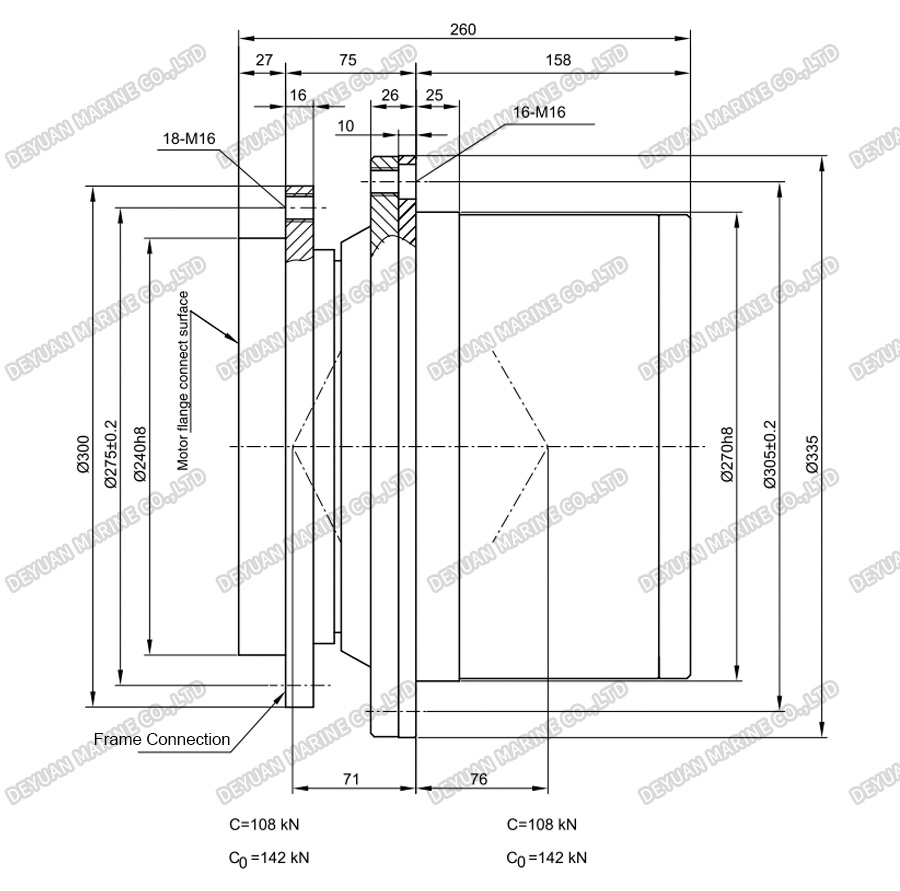

Overall Dimensions:
Note: The above is the outline drawing of the GFT 13T2 Series High Speed Reducer. If you need to view drawings for other models, please contact our sales team.
Technical Specifications:
| Series | Max output torque Tmax N.m | Transmission ratio | Model of hydraulic motor | Max.input rotating ratio (r/min) | Static brake torque (TBRmax.N.m) | Brake working pressure (MPa) | Net weight (kg) | |
| GFT 13T2 | 13000 | 16.3 22.6 32.1 37.6 | A2FE45 A2FE56 A2FE63 | A6VE28 A6VE55 | 2000 | 450-900 | 1.8-5 | 95 |
| GFT 17T2 | 17000 | 26.4 32.1 45.4 54 | A2FE45 A2FE56 A2FE63 | A6VE55 | 2000 | 500-1000 | 1.8-5 | 105 |
| GFT 17T3 | 17000 | 77.9 88.2 102.6 | A2FE28 A2FE32 A2FE45 A2FE56 | A6VE28 A6VE55 | 2000 | 220-450 | 1.8-5 | 116 |
| GFT 24T3 | 24000 | 90.1 102.6 120.5 | A2FE45 A2FE56 A2FE63 | A6VE55 | 2000 | 400-750 | 1.8-5 | 155 |
| GFT 36T3 | 36000 | 67 79.4 100 116.6 | A2FE45 A2FE56 A2FE63 A2FE80 A2FE90 | A6VE55 A6VE80 | 2000 | 450-800 | 1.8-5 | 210 |
| GFT 50T3 | 50000 | 84.2 91.1 99.8 125.7 146.4 | A2FE80 A2FE90 | A6VE80 A6VE107 | 2000 | 600-1100 | 1.8-5 | 265 |
| GFT 60T3 | 60000 | 86.5 94.8 105.5 119.8 139.9 169.9 | A2FE80 A2FE90 A2FE107 A2FE125 | A6VE80 A6VE107 A6VE160 | 2000 | 800-1200 | 1.8-5 | 300 |
| GFT 80T3 | 80000 | 76.7 99 110.9 126.9 149.9 185.4 | A2FE107 A2FE125 A2FE160 A2FE180 | A6VE107 A6VE160 | 2000 | 800-1600 | 1.8-5 | 420 |
| Input rotating direction of reducer is reverse to the output rotating direction. For other transmission ratio which is not included in our table,if customer's order quantity is big,special products can be customized. | ||||||||
Marine Applications:
Thanks to its robust design and compact footprint, the GFT High Speed Reducer is widely deployed in various marine and offshore applications, including but not limited to:
*Ship Cranes & Deck Machinery: Main and auxiliary winches, luffing mechanisms, and slewing drives.
*Offshore & Port Equipment: Ship unloaders, port and container cranes, and deck winches.
*Marine Drilling & Dredging: Driven power heads and track/walking drives for specialized marine drilling rigs.
