Product Description

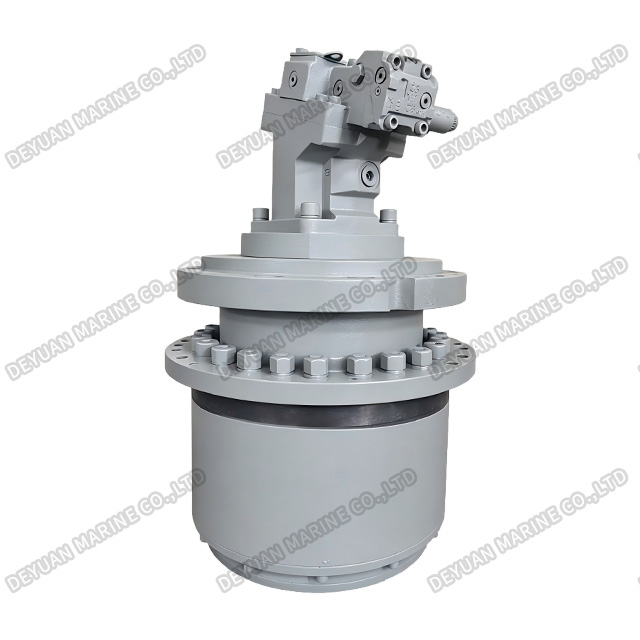

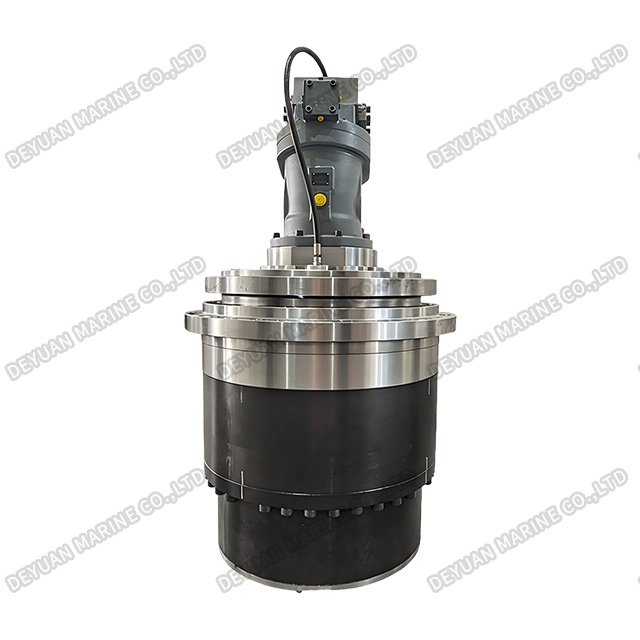

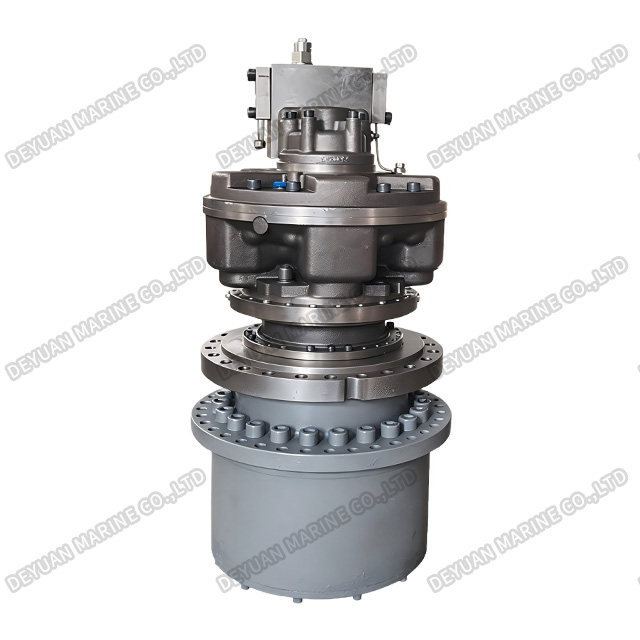

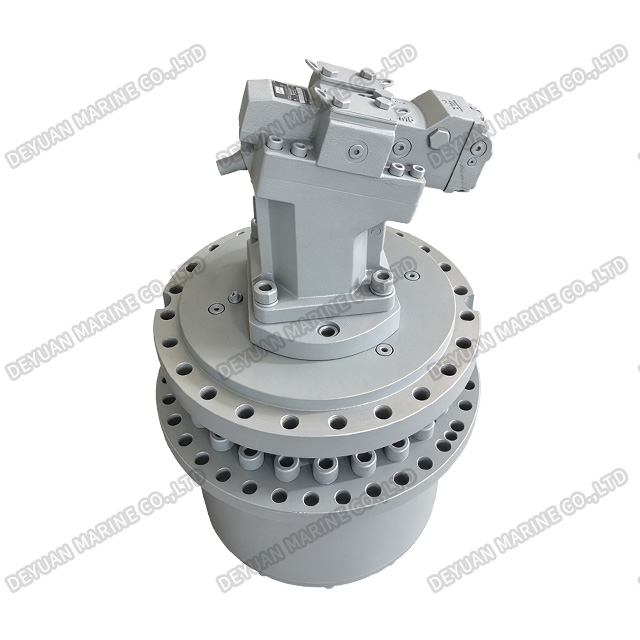

Compact High-Speed Rotating Housing Reducer
Product Introduction:
The Compact High-Speed Rotating Housing Reducer is an ideal transmission component designed for demanding mobile machinery and marine applications. Featuring an exceptionally compact structure, it is specifically engineered to operate reliably in extremely confined installation spaces. By utilizing advanced design technologies and precision manufacturing, this reducer guarantees high load-bearing capacity, exceptional operational reliability, and smooth performance under the most rigorous conditions.
Key Features:
1.Compact & Lightweight: Space-saving structure ideal for compact machinery and modular system integration.
2.High-Speed Input Capability: Engineered to handle high input speeds while maintaining stable, low-vibration operation.
3.Rotating Housing Output: Direct mounting of rotating loads without additional couplings or output shafts.
4.High Torque Density: Delivers strong torque output in a small envelope.
5.Precision Transmission: Low backlash, smooth motion, and high positioning accuracy.
6.High Rigidity: Robust bearing and gear layout supports radial and axial loads.
7.Sealed Lubrication: Long service life with reduced maintenance.
8.Low Noise & Low Vibration: Optimized gear geometry for quiet, stable running.
9.Flexible Integration: Compatible with servo motors, stepper motors, and custom mounting interfaces.
10.Customizable: Ratios, flanges, shafts, materials, encoders, brakes, and sealing options available.

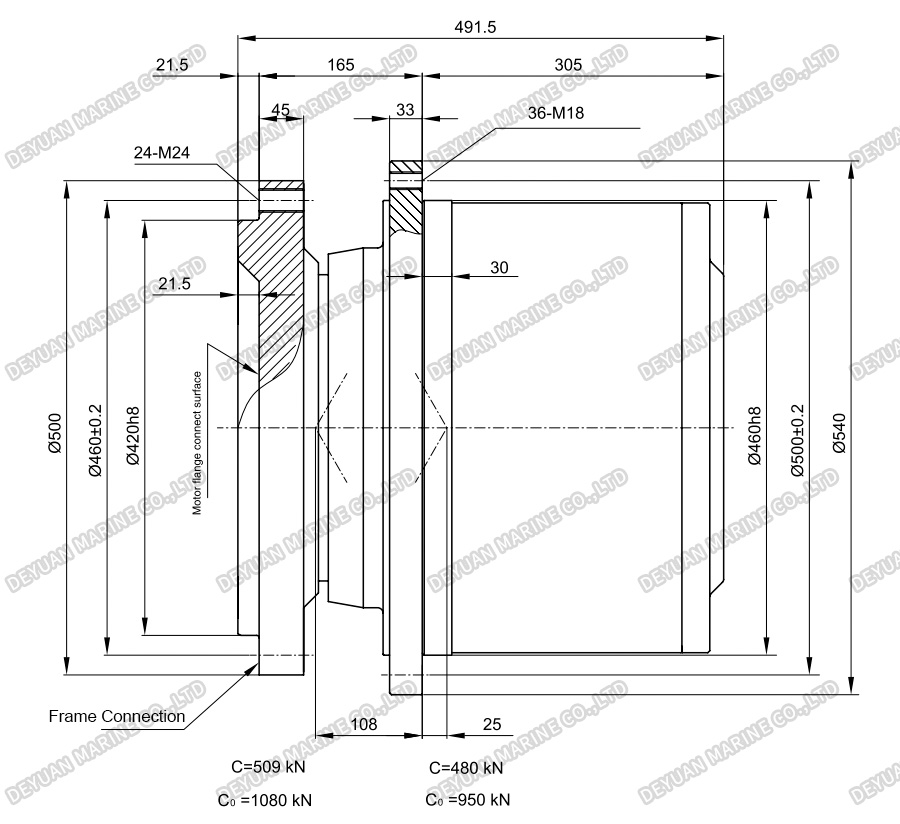

Overall Dimensions:
Note: The above is the outline drawing of the GFT 110T3 Series High Speed Reducer. If you need to view drawings for other models, please contact our sales team.
Technical Specifications:
| Series | Max output torque Tmax N.m | Transmission ratio | Model of hydraulic motor | Max.input rotating ratio (r/min) | Static brake torque (TBRmax.N.m) | Brake working pressure (MPa) | Net weight (kg) | |
| GFT 110T3 | 110000 | 95.8 114.8 128.6 147.2 173.9 215 | A2FE107 A2FE125 A2FE160 A2FE180 | A6VE107 A6VE160 | 2000 | 900-2000 | 1.8-5 | 460 |
| GFT 160T3 | 160000 | 161.8 210.8 251 | A2FE107 A2FE125 A2FE160 A2FE180 | A6VE107 A6VE160 | 2000 | 900-2000 | 1.8-5 | 580 |
| GFT 220T3 | 220000 | 188.9 246.1 293 | A2FE107 A2FE125 A2FE160 A2FE180 | A6VE107 A6VE160 | 2000 | 1200-2400 | 1.8-5 | 710 |
| GFT 330T3 | 330000 | 168.9 209.9 252 302.4 | A2FE250 A2FE355 | A6VE250 A6VE355 | 2000 | 1500-3500 | 1.8-5 | 810 |
| GFT 330T4 | 330000 | 451.7 839.4 1008 | A2FE107 A2FE125 A2FE160 A2FE180 | A6VE107 A6VE160 | 2000 | 1200-2400 | 1.8-5 | 950 |
| GFT 550T3 | 550000 | 129.2 146.8 175.3 | A2FE250 A2FE355 A2FE500 | A6VM250 A6VM355 A6VM500 | 2000 | 6500-8000 | 1.8-5 | 1000 |
| GFT 550T4 | 550000 | 905.5 1267.8 | A2FE107 A2FE125 A2FE160 A2FE180 | A6VE107 A6VE160 | 2000 | 1200-2400 | 1.8-5 | 1200 |
| Input rotating direction of reducer is reverse to the output rotating direction. For other transmission ratio which is not included in our table,if customer's order quantity is big,special products can be customized. | ||||||||
Applications:
Thanks to its robust construction and compact footprint, the Compact High-Speed Rotating Housing Reducer is widely deployed in:
*Marine & Offshore: Ship cranes, deck winches, luffing mechanisms, port and container cranes, ship unloaders.
*Construction Machinery: Rotary drilling rigs, crawler cranes, road rollers, aerial work platforms, coal mining roadheaders.
