Product Description

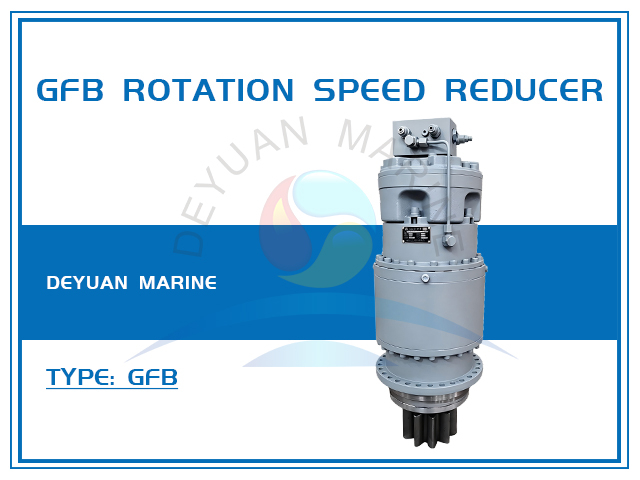

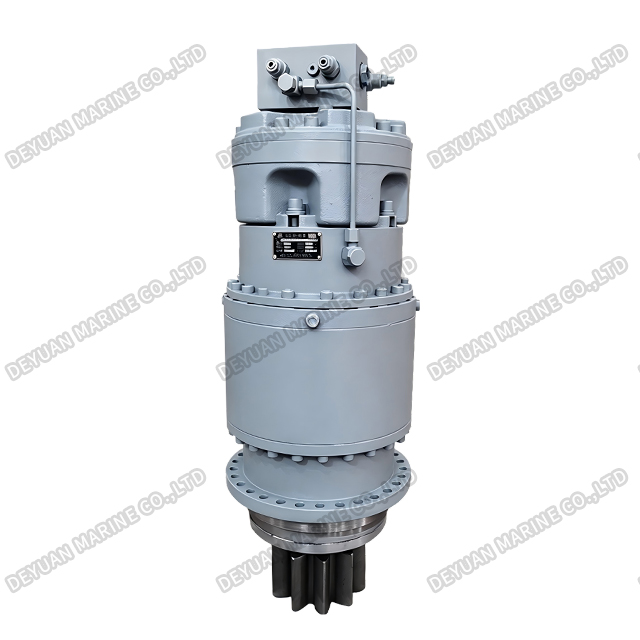

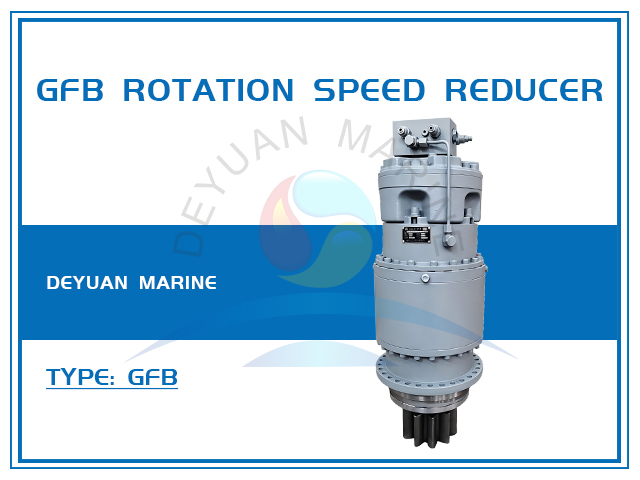

GFB Rotation Speed Reducer
Product Introduction:
The GFB series rotation speed reducer is the ideal driving equipment for the slewing platforms of wheeled or crawler excavators, rotary drilling rigs, crawler and truck cranes, ship cranes, and various other applications. It delivers highly reliable performance even under the most severe working conditions. Due to its compact structure, it can be directly mounted inside the equipment, significantly saving space and making installation and maintenance highly convenient.
The internal structure of the GFB reducer adopts our company's new technology, making its installation dimensions and main technical parameters nearly identical to the Bosch-Rexroth product. Therefore, it can be used as a direct replacement for imported products. It is also compatible with other similar brands such as Brevini, Tejin, Nachi, and KYB. We provide strong design and customization capabilities, offering consulting services to help customers select the most suitable transmission solution based on their specific needs.
The GFB reducer can be connected to constant or variable hydraulic motors from Bosch-Rexroth, as well as other brands. A spring-loaded, hydraulically released multi-disc parking brake can be installed at the input terminal. The static braking torque matches the input torque of the hydraulic motor (typically 1.5 times greater).

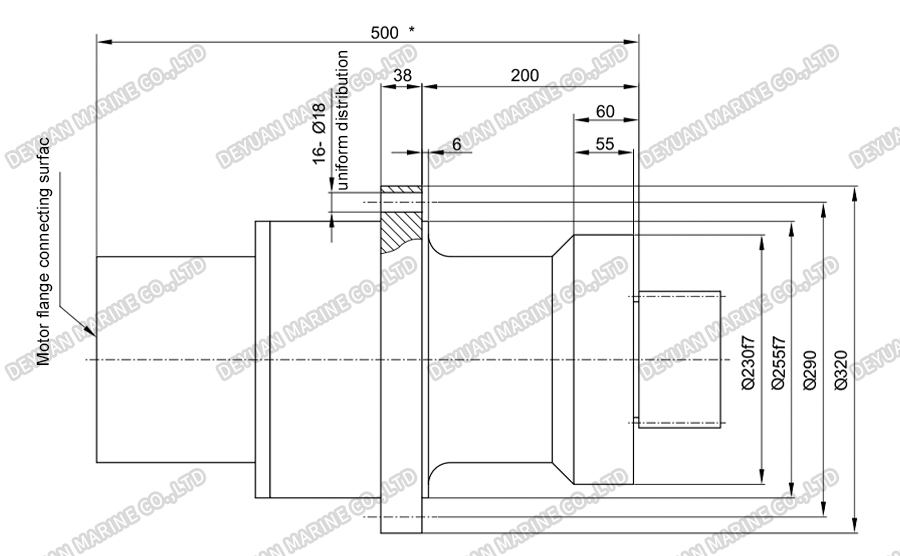

Overall Dimensions:
Note: The above is the outline drawing of the GFB 17T2/T3 Series Rotation Speed Reducer. If you need to view drawings for other models, please contact our sales team.
Technical Specifications:
| Series | Output torque Tmax N·m | Transmission ratio | Model of hydraulic motor | Static brake torque TBR max.N ·m | Net weight (kg) |
| GFB 17T2/T3 | 12700 | 27.4 33.1 46.4 78.9 89.2 103.6 | A2FE28 A2FE32 A2FE45 A2FE56 A2FE63 | 500-1000 | 140 |
| GFB 26T2 | 16500 | 27.1 31.4 37.8 43.9 51.5 63 | A2FE45 A2FE56 A2FE63 A2FE80 A2FE90 | 500-1000 | 210 |
| GFB 36T3 | 28500 | 67.9 73.5 80.4 89.2 101 117.6 | A2FE45 A2FE56 A2FE63 A2FE80 A2FE90 | 450-800 | 210 |
| GFB 40T2 | 29000 | 36.4 42 49.3 60.1 | A2FE45 A2FE56 A2FE63 A2FE80 A2FE90 A2FE107 A2FE125 | 800-1200 | 240 |
| GFB 50T2 | 38000 | 27 32.3 37.8 46.1 | A2FE80 A2FE90 A2FE107 A2FE125 | 1000-1500 | 380 |
| GFB 50T3 | 38000 | 85.2 92.1 100.7 111.9 126.7 147.4 | A2FE45 A2FE56 A2FE63 A2FE80 A2FE90 A2FE107 A2FE125 | 600-1100 | 420 |
| 1、the input steering of the reducer is the same as that of the output. 2、the allowed value of output speed(not specified in the sample)is changed due to the actual working conditions.Please consult the relevant technical personnel of the company for details. | |||||
Typical Applications:
It is widely used in wheeled/crawler excavators, crawler cranes, rotary drilling rigs, ship cranes, and other equipment.
