Product Description

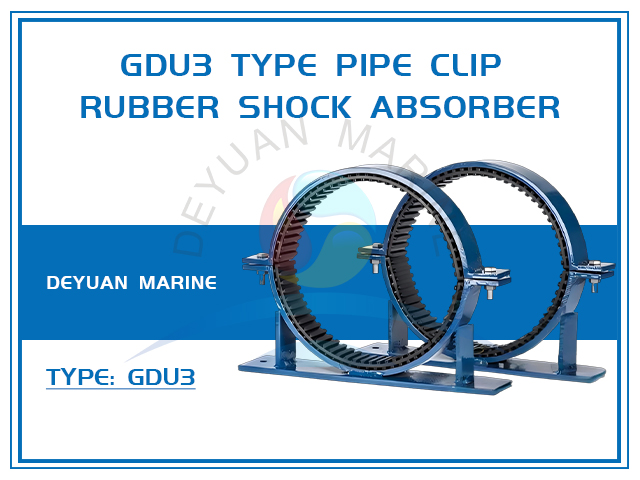

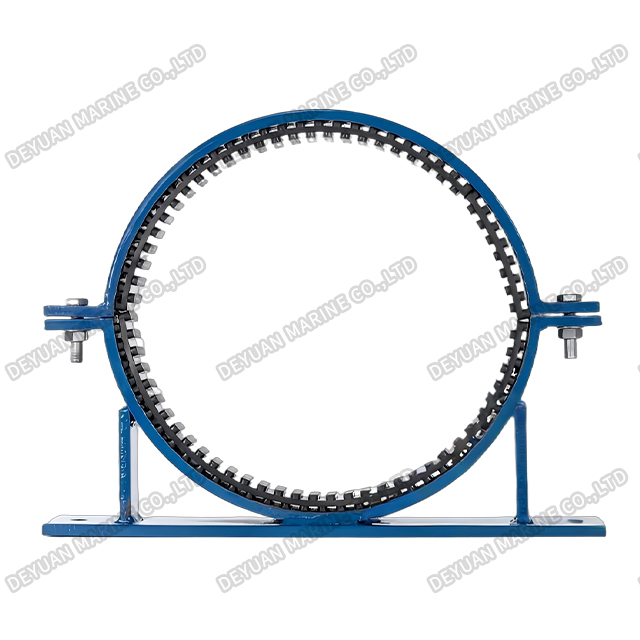

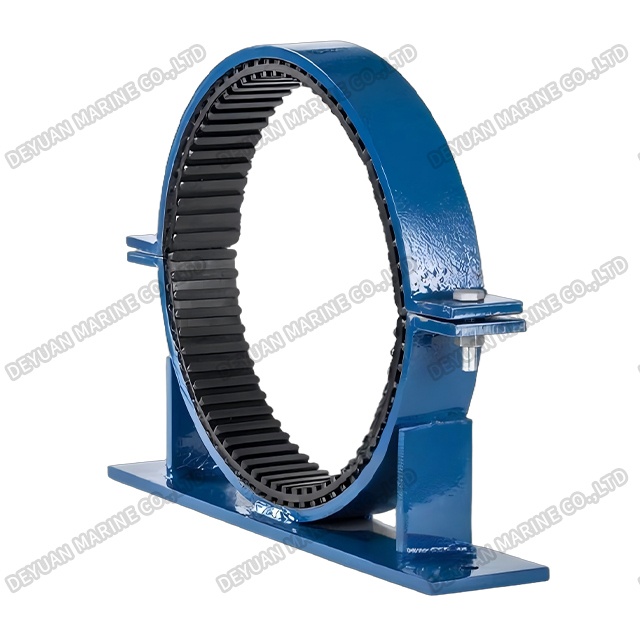

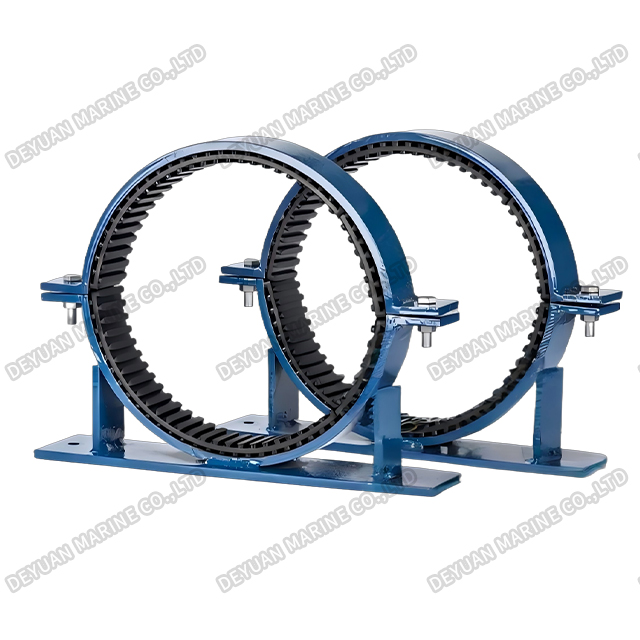

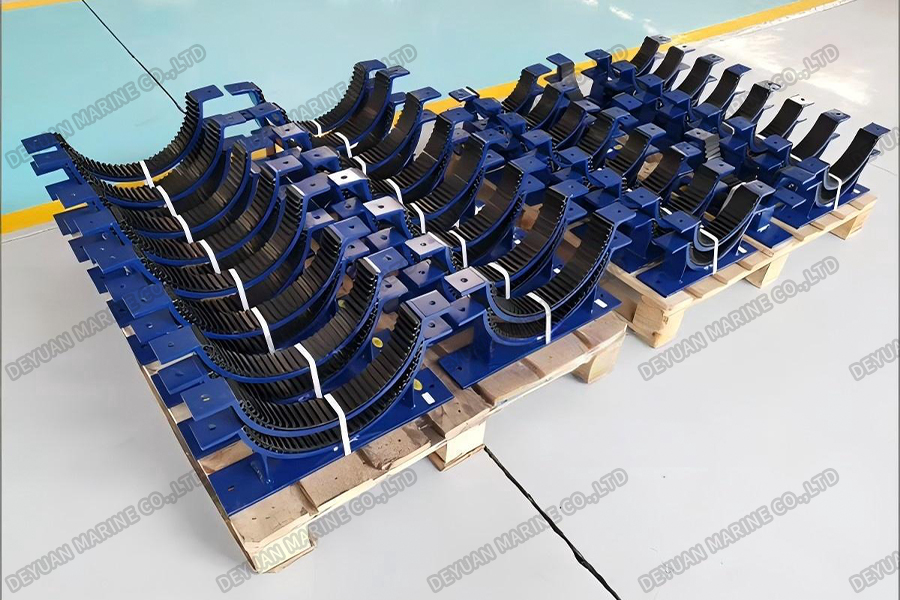

GDU3 Type Pipe Clip Rubber Shock Absorber
Product introduction
GDU3 pipe clamp rubber damper can greatly reduce vibration and noise, effectively ensure the quiet working environment.

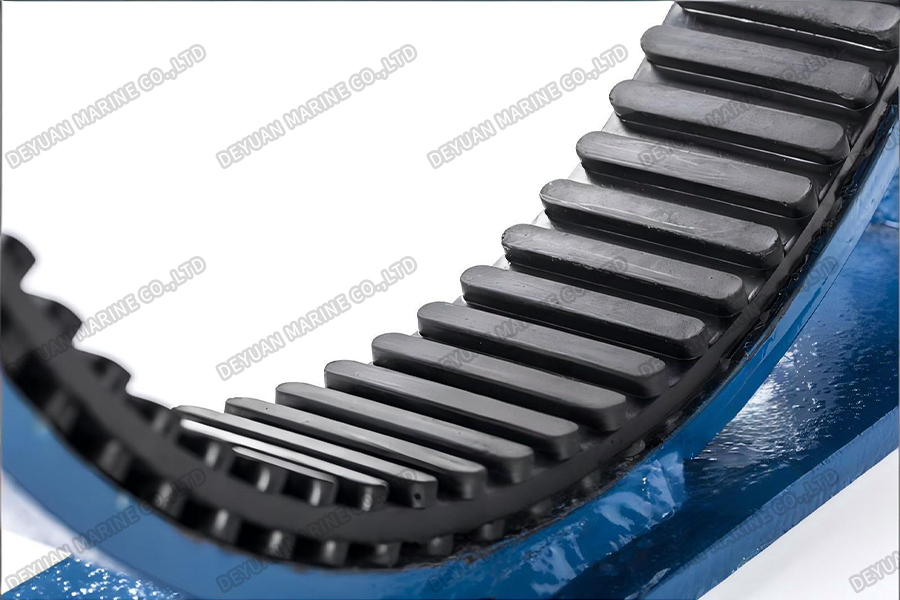

The GDU3 pipe and rubber shock absorber is equipped with rubber isolators. The upper and lower parts are made of carbon steel, with rubber isolating pad inside, which can absorb the vibration of the pipeline itself, so as to effectively isolate the vibration of pipes, walls, ground and equipment. The advantage of the product lies in its strong, long practical life, easy installation and beautiful appearance, which is the choice of the pipe shock absorber.

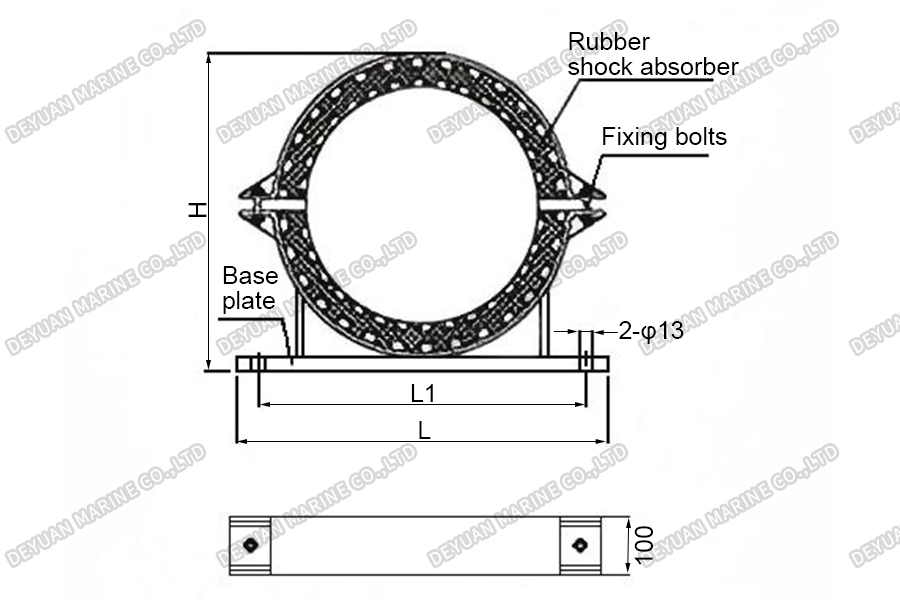

Drawing
Performance Parameters
| Specification | L(mm) | L1(mm) | H(mm) |
| GDU3-50 | 200 | 150 | 108 |
| GDU3-65 | 220 | 170 | 128 |
| GDU3-80 | 230 | 180 | 141 |
| GDU3-100 | 250 | 200 | 160 |
| GDU3-125 | 275 | 225 | 186 |
| GDU3-150 | 325 | 275 | 236 |
| GDU3-200 | 385 | 335 | 296 |
| GDU3-250 | 440 | 390 | 350 |
| GDU3-300 | 500 | 450 | 409 |
| GDU3-350 | 550 | 500 | 461 |
| GDU3-400 | 600 | 550 | 510 |
| GDU3-450 | 650 | 600 | 564 |
| GDU3-500 | 700 | 650 | 614 |
| GDU3-600 | 800 | 750 | 714 |
| GDU3-700 | 900 | 850 | 810 |
| GDU3-800 | 1000 | 950 | 910 |
| GDU3-900 | 1100 | 1050 | 1010 |
| GDU3-1000 | 1200 | 1150 | 1110 |
